Management of the left subclavian artery during aortic arch replacement using a frozen elephant trunk approach: a review

Overview

The surgical treatment of aortic arch disease remains a physiological and technical challenge for patients. The technical management of an aortic arch replacement necessitates the development of a reconstructive plan for the brachiocephalic arteries, including the left subclavian artery (LSCA; Figure 1). Total arch replacement (TAR) is typically performed through a median sternotomy, with the LSCA remaining deep in the operative field. Traditional methods of TAR commonly rely on creating the distal anastomosis just beyond the LSCA; however, its position deep in the chest makes establishing hemostasis difficult, especially if a large discrepancy exists between the diameter of the graft and the residual native aorta. Additionally, the LSCA may be diseased in the following ways: aneurysmal, atherosclerotic, calcified, dissected, or fragile. Furthermore, there may be a need to manage anatomical variation regarding how the brachiocephalic arteries arise from the greater curvature of the aortic arch. Thus, the ideal strategy for LSCA management in contemporary TAR requires careful consideration.

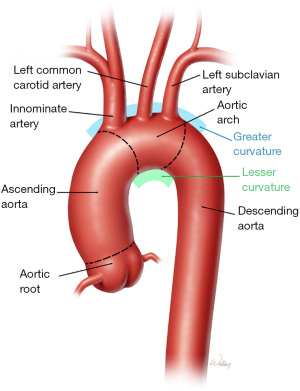

Figure 1 The transverse aortic arch is the short segment of the aorta that includes the origins of the brachiocephalic arteries—the innominate, left common carotid, and left subclavian arteries. Standard frozen elephant trunk approaches replace the greater curvature of the aortic arch. Used with permission of Baylor College of Medicine.

Borst and colleagues (1) described staged repair of extensive thoracic disease using an approach Borst called the “elephant trunk” technique. In the first stage of repair, TAR was performed, along with the extension of a short segment of “soft” graft into the proximal portion of the descending thoracic aorta. In the second stage of repair, this free-floating trunk was used to facilitate repair of the distal aorta, allowing a secure graft-to-graft anastomosis as the descending thoracic or thoracoabdominal aorta was replaced.

Kato and coauthors (2) introduced an approach later recognized as the “frozen elephant trunk” in the 1990s. The frozen elephant trunk (FET) was created using a hybrid approach that combined open and endovascular strategies; in this case, the soft elephant trunk extension was pressurized by placing a stent-graft inside of it and making it stiff or “frozen.” After decades of iterations, this approach eventually led to the development of one-piece specialty devices such as the E-Vita (Artivion, Baden-Württemberg, Germany) and the Thoraflex Hybrid device (Terumo Aortic, Sunrise, FL, USA) that have been available in Europe and other countries outside the USA for many years. In April 2022, the FDA approved the Thoraflex Hybrid device to be used in the USA. The FET approach is increasingly being used in modern practice for total arch replacement—in cases with and without acute aortic dissection.

Additionally, the majority of FET approaches incorporate the use of anastomotic collar, which was introduced into aortic arch repair in the early 2000s (3). The collar compensates for any graft-to-aorta discrepancy in diameter and facilitates a more proximal anastomosis [i.e., just distal to left common carotid artery (LCCA) instead of distal to the LSCA]; in this approach, the LSCA may be bypassed or left in its native state without revascularization. Importantly, in traditional unpressurized elephant trunk (ET) repair, there will often be some measure of retrograde flow into the LSCA. In FET repair, pressurization prevents retrograde blood flow to the LSCA. As a result, when developing a patient-specific surgical plan for TAR with FET, appropriately managing the LSCA is critical.

With the advent of thoracic endovascular aortic repair (TEVAR), controversy developed regarding the management of the LSCA when repair encroached upon this artery to ensure an adequate seal. Initially, some clinicians believed the origins of the LSCA could safely be obstructed by a stent-great without revascularization (4). However, such coverage was associated with left arm claudication, stroke, and spinal cord deficit (5). The 2010 Society for Vascular Surgery (SVS) Practice Guidelines (6) for LSCA revascularization after TEVAR are largely based on a Mayo Clinic Knowledge and Encounter Research Unit analysis of 51 studies. These studies discovered a 48-fold increase in left arm ischemia, an 11-fold increase in vertebrobasilar ischemia, a 2.7-fold increase in spinal cord ischemia and 2.6-fold increase for anterior circulation stroke when the LSCA was covered without revascularization. Despite a lack of definitive evidence, the SVS guidelines reviewed TEVAR coverage of the LSCA in three major scenarios. The first recommendation suggests preoperative revascularization should be routine (Grade 2, Level C). The second recommendation is centered on anatomical scenarios that limit perfusion to key organs, including the presence of a patent left internal mammary artery to coronary artery circulation, a patent left arm arteriovenous (AV) shunt for dialysis, termination of the left vertebral artery into the posterior inferior cerebellar artery, an absent, atretic, or occluded right vertebral artery, prior infrarenal abdominal aortic procedure, and planned extensive endovascular coverage of the descending thoracic aorta; here, routine preoperative revascularization is strongly recommended (Grade 1, Level C). The third recommendation is aimed at emergency repair and suggests individualized revascularization based on anatomy, the urgency of repair, and the experience of the surgeon (Grade 2, Level C). Clinicians should consider applying these recommendations to the LSCA in total aortic arch replacement with a FET approach.

Another important but little-discussed scenario is the management of the left vertebral artery that originates from the aorta. With a prevalence of 4% to 7%, this is the second most common anatomical variation of the aortic arch (7,8). It is associated with a longer prevertebral course before entering the cervical vertebrae and has been linked to vertebral artery dissection. In addition, the direct origin of the artery from the aorta is associated with increased diameter of the artery and direct flow of blood into the brainstem as a terminal artery on the posterior cerebellar artery. This variation can predispose to posterior circulation ischemic events and should be identified on computed tomographic angiogram (CTA) or magnetic resonance angiogram (MRA) as part of the plan for arch reconstruction.

When the aortic arch is replaced with an elephant trunk, there are primarily three clinical scenarios in which the LSCA may be addressed. The first is when the primary operation is performed on an elective basis. The second is during an emergency situation involving acute dissection or contained ruptured aneurysm. The third involves postoperative management in the event of ligation of the artery.

Preoperative

During an elective total arch replacement, there is an opportunity to reduce the branching brachiocephalic arteries from three to only two during repair, simplifying the overall procedure. In general, there are two common techniques: one is the transposition of the LSCA to the LCCA, and the other is a LCCA-LSCA bypass. Both procedures are typically performed through a left supraclavicular incision. Exposure for the transposition involves entering the carotid sheath separating the common carotid artery from the internal jugular vein and exposing the LSCA between the transverse aortic arch and the vertebral artery. This approach also entails roughly dividing the LSCA, thereby eliminating the possibility of handling the artery at that level later. If possible, transposition is preferred because it requires only one anastomosis and requires no additional prosthetic material. However, the length of the artery between the arch and the left vertebral artery must be adequate, and if aortic dissection extends into the LSCA or the LCCA, a bypass procedure may be preferrable. A LCCA-LSCA bypass is typically performed using a short section of an 8- or 10-mm Dacron graft (Figure 2). Exposure of the LSCA is generally distal to the left vertebral and internal mammary artery, sometimes requiring the ligation of the thyrocervical trunk.

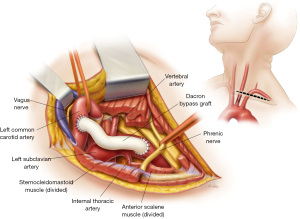

Figure 2 With minimal exposure via a left supraclavicular incision, the left subclavian artery is bypassed to the left common carotid artery in a side-to-side fashion. Used with permission of Baylor College of Medicine.

Intraoperative

When preoperative management of the LSCA is not feasible, the LSCA revascularization should be addressed intraoperatively. The three-vessel en bloc island reattachment to the Dacron graft was historically the most common technique for managing the LSCA during total aortic arch replacement. Occasionally, the LSCA may be separately reimplanted directly to the graft (i.e., a 2-vessel patch with a separate LSCA reimplantation). Graft replacement of the brachiocephalic arteries, using either anatomically based grafts or trifurcated extra-anatomic Y-graft approaches, are additional management options (9-11). In other cases, simple ligation or division and oversewing the LSCA is a possible option in order to avoid any additional dissection deep into the chest that is typically necessary to isolate this artery. If a dominant left vertebral artery circulation with an origin directly from the aortic arch, it should be mobilized and re-implanted on the bypass graft or native artery if a transposition was performed.

With the approval of the Thoraflex Hybrid Device (Terumo Aortic) by the FDA in the USA in 2022, contemporary FET strategies include branched graft or a Y-graft approach using a straight tube graft and “straight tube” graft options for incorporating the three brachiocephalic arteries; this can be done as part of brachiocephalic vessels debranching (using the branched graft) or as part of a two- or three-vessel island reattachment (using the straight tube graft). As mentioned above, if the innominate and left common carotid arteries are reattached in a 2-vessel island, a separate treatment for the LSCA is needed (i.e., bypass, reimplantation, or less commonly, left in its native state). Notably, debranching Y-graft techniques and 2-vessel island patches allow the distal anastomosis of the FET to be performed in a more proximal position. Importantly, “proximal” to the origin of the LSCA includes zone 2, zone 1, or even zone 0 arch repairs.

Additional approaches are described in the literature to facilitate the revascularization and “proximilization” of the LSCA. Okamura and colleagues reported their experience with the one-piece Frozenix hybrid FET device (Japan Lifeline, Tokyo, Japan) to treat 22 patients with acute DeBakey type I aortic dissection. After the aortic arch was transected proximal to the LSCA, the stent-graft portion of the FET device was deployed and a 10-mm fenestration was manually created under direct vision to restore blood flow to the LSCA, with fixation of the fenestration site using a piece of graft to surround the opening and secured by running suture (12). As part of an FET repair, Velayudhan and coauthors reported the use of a cranial extension of the sternal incision aided the anastomosis of the LSCA to a branch graft and enabled completion of the distal anastomosis between the LCCA and LSCA (Zone 2) (13).

Outside of FET repair, Donas and colleagues described a sutureless telescoping anastomosis approach in a series of 20 patients undergoing debranching of the brachiocephalic arteries to treat varied aortic disease; here, the branches of an octopus graft (with inflow of the graft’s main body in the proximal portion of the ascending aorta) were combined with small-diameter covered stents [either a Viabahn (as part of an open rebranching technique or VORTEC procedure) or a Hemobahn covered stent] that were deployed over a wire within each artery and bridged the gap to the octopus branches. Initially, the anastomosis between the branch graft and the fully deployed covered stent was secured with interrupted stitches to avoid slippage but was later deployed without any additional anastomosis. Once the arch was debranched, a stent-graft was commonly deployed, covering the anatomic origins of the brachiocephalic arteries (14).

Postoperative

If the primary surgical procedure involved ligation, several possibilities present themselves for potential delayed treatment of the LSCA. In the early postoperative period, careful observation of the LSCA is expected. If there is a significant decrease in left arm circulation, early intervention may be necessary. For much of the time, this involves return to the operating room and performing either a LSCA-to-LCCA transposition or a LCCA-to-LSCA bypass using standard techniques. Conservative management may be entirely appropriate if the patient’s left arm remains viable and the patient recovers from the initial procedure, provided the patient remains asymptomatic.

FET experience

Early in FET experience, the distal anastomosis was typically performed distal to the LSCA, and thus, the LSCA was commonly reattached to the main body of the graft within an island patch (15). However, as branched and collared FET devices became available, contemporary practice shifted such that many surgeons began to move the distal anastomosis forward (namely, between the LCCA and LSCA) and to also debranch the brachiocephalic arteries (Figure 3) (16-18). Regarding preoperative management of the LSCA, Fiorentino and colleagues reported the selective use of LSCA-LCCA bypass about 2 weeks prior to FET repair in hopes of reducing operative ischemia; these patients recovered with minimal complication (19). Describing intraoperative management of FET repair in the setting of chronic aortic dissection, Zhong and coauthors report managing the LSCA intraoperatively by transposing it to the LCCA after 2-vessel island reattachment of the innominate and left common carotid arteries (20). In the setting of acute aortic dissection, it appears the LSCA is more likely to be sacrificed (21,22); here, the artery is postoperative managed with bypass or fenestration only if complications develop (21,23). As mentioned earlier, Velayudhan et al. extend the incision to the left side of the neck which provides a superb access for revascularization of the left subclavian after or before the implantation of the elephant trunk (13). Lastly, there are emerging techniques for LSCA management that involve modification of the FET device itself to include the use of a fenestration with suture fixation around the fenestrations (12).

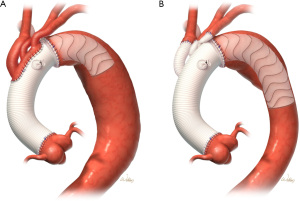

Figure 3 Options for frozen elephant trunk repair include (A) island reattachment of the brachiocephalic arteries, and (B) a debranching approach to reattachment. In the island approach, the terminal anastomosis is commonly made distal to the left subclavian artery; in the debranching approach, the anastomosis is typically completed proximal to the anatomic origins of the left subclavian artery. Used with permission of Baylor College of Medicine.

Conclusions

The LSCA must be included in the operative strategy during total arch replacement regardless of the technique. Whether preoperative, intraoperative, or postoperatively, it is critical to maintain circulation of the LSCA, particularly in those patients with a patent left internal mammary artery bypass, left dominant vertebral circulation, or left arm AV fistula for hemodialysis. The LSCA is also an important source of collaterals to the spinal cord and its sacrifice can increase the risk of spinal cord ischemia during FET approach.
