Multi-modality imaging of high-intensity plaques on non-contrast T1-weighted magnetic resonance imaging: a case report

Hayato Hosoda1,2, Yu Kataoka2, Fumiyuki Otsuka2, Yasuhide Asaumi2, Teruo Noguchi2

1Department of Cardiology, Chikamori Hospital, Kochi, Japan; 2Department of Cardiovascular Medicine, National Cerebral and Cardiovascular Center, Suita, Japan

Contributions: (I) Conception and design: H Hosoda, Y Kataoka; (II) Administrative support: T Noguchi; (III) Provision of study materials or patients: H Hosoda, Y Kataoka; (IV) Collection and assembly of data: H Hosoda, Y Kataoka; (V) Data analysis and interpretation: H Hosoda, Y Kataoka; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

Correspondence to: Yu Kataoka, MD, PhD, FACC, FAHA, FESC, FJCC. Department of Cardiovascular Medicine, National Cerebral and Cardiovascular Center, 6-1, Kishibe Shinmachi, Suita, Osaka 564-8565, Japan. Email: yu.kataoka@ncvc.go.jp.

Background: Non-contrast T1-weighted imaging (T1WI) with cardiac magnetic resonance enables to evaluate the intensity of coronary plaque. Plaque-to-myocardial signal intensity ratio (PMR) has been shown to associate with an elevated risk of future coronary events. Of note, PMR >1.4 is a best cut-off value to identify high-risk plaque causing future coronary events. One recent study has reported intraluminal thrombus as a contributor to PMR. However, whether plaque material itself is associated with PMR has not been fully characterized yet. We present three cases with coronary artery stenosis evaluated by non-contrast T1WI-magnetic resonance imaging, optical coherence tomography (OCT) and near-infrared spectroscopy (NIRS)-intravascular ultrasound (IVUS) imaging.

Case Description: Case 1 exhibited one lesion with high PMR (2.79) at the proximal segment of left anterior descending (LAD) artery. OCT imaging did not identify any obvious intra-luminal thrombus but the presence of lipid-rich plaque harboring cholesterol crystal at the corresponding lesion. In addition, an elevated maximum 4-mm lipid-core burden index (maxLCBI4mm) (=873) was observed at this lesion by NIRS/IVUS imaging. In case 2, PMR of coronary stenosis at the middle segment of LAD artery was 1.88. This lesion harboured lipidic materials without any thrombus on OCT imaging. NIRS-derived maxLCBI4mm was 725. Case 3 had a severe stenosis at the middle segment of LAD artery. This lesion exhibited a low PMR (0.90). On OCT and NIRS/IVUS imaging, this lesion was characterized as the presence of small lipid arc with a low maxLCBI4mm (=386).

Conclusions: These cases showed the possible relationship of T1WI-derived PMR with the degree of lipidic plaque components.

Keywords: Magnetic resonance imaging (MRI); near-infrared spectroscopy (NIRS); coronary; case report


Submitted Mar 18, 2023. Accepted for publication Jul 14, 2023. Published online Aug 25, 2023.

doi: 10.21037/cdt-23-125


Video S1 Non-contrast T1WI imaging in case 1. High-intensity signal (PMR =2.79) was observed at the proximal segment of LAD artery, which corresponds to the culprit lesion. T1WI, T1-weighted imaging; PMR, plaque to myocardium ratio; LAD, left anterior descending.
Video S2 Combined NIRS/IVUS imaging in case 1. Culprit lesion exhibited an elevated maxLCBI4mm (=873) on NIRS imaging. NIRS, near-infrared spectroscopy; IVUS, intravascular ultrasound; maxLCBI4mm, maximum 4-mm lipid core burden index.
Video S3 OCT imaging in case 1. On OCT imaging, lipid-rich plaque with cholesterol crystal was observed, whereas there is no intra-luminal thrombus and thin-cap fibroatheroma. OCT, optical coherence tomography.
Video S4 Non-contrast T1WI imaging in case 2. The middle segment of LAD artery exhibited high-intensity signal (PMR =1.88). T1WI, T1-weighted imaging; LAD, left anterior descending; PMR, plaque-to-myocardial signal intensity ratio.
Video S5 Combined NIRS/IVUS imaging in case 2. NIRS/ IVUS imaging was conducted after plain old balloon angioplasty (2.0 mm diameter, 6 atmosphere). Culprit lesion exhibited low-echoic signals with some ultrasonic signal attenuation. NIRS, near-infrared spectroscopy; IVUS, intravascular ultrasound.
Video S6 OCT imaging in case 2. OCT imaging after plain old balloon angioplasty (2.0 mm diameter, 6 atmosphere) identified the presence of lipid-rich plaque. While dissection due to plain old balloon angioplasty was observed, any intra-luminal thrombus was not observed at the culprit site. OCT, optical coherence tomography.
Video S7 Non-contrast T1WI imaging in case 3. There is no high-intensity signal within LAD artery. T1WI, T1-weighted imaging; LAD, left anterior descending.
Video S8 Combined NIRS/IVUS imaging in case 3. A low-echoic plaque with small number of yellow signals was visualized. NIRS, near-infrared spectroscopy; IVUS, intravascular ultrasound.
Video S9 OCT Imaging in case 3. Culprit lesion on OCT imaging showed lipid plaque, although its lipid arc was smaller than other two lesions. OCT, optical coherence tomography.

Highlight box

Key findings

Our three cases indicate the possible relationship of non-contrast T1-weighted imaging (T1WI)-derived coronary high-intensity plaque with the degree of lipidic plaque components.

What is known and what is new?

Non-contrast T1WI-derived coronary high-intensity plaque has been shown to predict risk of future coronary events.

Our cases characterize coronary plaques which exhibit high-intensity on non-contrast T1WI magnetic resonance imaging (MRI) imaging.

What is the implication, and what should change now?

Lipidic materials may be an important contributor to the degree of plaque intensity on non-contrast T1WI MRI imaging. Lipid-lowering therapies should be further intensified in patients with high-intensity coronary plaques.


Introduction

Non-contrast T1-weighted imaging (T1WI) with cardiac magnetic resonance is a non-invasive imaging tool to visualize coronary atheroma. The observational study demonstrated that the extent of signal on non-contrast T1WI at coronary lesions was associated with an increased risk of coronary events (1). In particular, coronary high-intensity plaque (HIP) defined as T1WI-derived plaque-to-myocardial signal intensity ratio (PMR) >1.4 was an independent predictor for a composite of cardiac death and coronary events (1). In addition, lowering low-density lipoprotein cholesterol (LDL-C) with pitavastatin has been shown to modulate signal intensity associated with coronary events (2). These findings suggest the potential of non-contrast T1WI to stratify future events’ risk and integrate into the clinical trial to assess the efficacy of novel therapies. Despite these clinically applicable abilities of non-contrast T1WI, determinant of its signal intensity has not been fully elucidated yet. Recent study reported intra-luminal thrombus as a cause of coronary HIP (3). However, this non-contrast T1WI-derived plaque feature is observed at coronary lesions without any intra-luminal thrombus (4). This observation suggests that plaque component itself may be another contributor to coronary high-intensity plaque. Given that a significant reduction of PMR was observed under lipid-lowering therapy which modulates lipidic plaque materials (2), coronary high-intensity plaque may be attributable to lipidic components within plaques.

Near-infrared spectroscopy (NIRS) imaging has enabled to quantitatively measure the degree of lipidic burden in vivo (5). This modality provides the opportunity to assess lipid-rich plaque at coronary lesions with coronary high-intensity plaque. This case series summarize three cases with and without coronary high-intensity plaque who were imaged by NIRS-intravascular ultrasound (IVUS) and optical coherence tomography (OCT). Multi-modality imaging was conducted to predict a risk of distal embolization following percutaneous coronary intervention (PCI) in all three cases. We present this article in accordance with the CARE reporting checklist (available at https://cdt.amegroups.com/article/view/10.21037/cdt-23-125/rc).


Case presentation

Case 1

A 57-years-old man was hospitalized due to exertional chest pain in January, 2017 (Table 1). Treadmill test demonstrated definitive ST-segment depression at precordial leads. He had a history of hypertension and dyslipidemia. He was already treated with 100 mg aspirin, 1.25 mg bisoprolol, 2.5 mg enalapril and 2 mg pitavastatin. Elective coronary angiography (CAG) identified a significant stenosis at the proximal segment of left anterior descending (LAD) artery (Figure 1A). Following elective CAG, magnetic resonance angiography (MRA) and non-contrast T1WI were conducted to evaluate culprit lesion. MRA visualized culprit site in his LAD artery (Figure 1B, yellow triangle). In addition, on non-contrast T1WI, coronary high-intensity plaque was observed at the corresponding lesion and its PMR was 2.79 (Figure 1C, Video S1). Elective PCI was performed under the guidance of NIRS-IVUS and OCT imaging. NIRS-derived chemogram imaging illustrated that maximum lipid core burden index in 4 mm (maxLCBI4mm) at culprit lesion was 873 (Figure 1D). The cross-sectional image of IVUS exhibited ultrasonic signal attenuation (asterisk) at culprit site (Figure 1E, Video S2). Despite the presence of coronary high-intensity plaque on T1WI, OCT imaging did not identify any obvious intra-luminal thrombus (b and c in Figure 1F) but the presence of lipid-rich plaque (L) harboring cholesterol crystal (white arrow) (Figure 1F, Video S3).

Table 1

Clinical characteristics of three cases

Characteristics Case 1 Case 2 Case 3
Age (years) 57 81 65
Gender Male Male Male
Race Japanese Japanese Japanese
BMI (kg/m2) 26.1 23.4 19.2
Hypertension Yes Yes No
Dyslipidemia Yes Yes Yes
Type 2 diabetes mellitus No No No
Smoking No No No
Diagnosis of CAD Angina pectoris Silent myocardial ischemia Angina pectoris
Duration of CAD since its diagnosis (months) 10 6 8
Culprit lesion Severe stenosis at the proximal segment of LAD Severe stenosis at the middle segment of LAD Severe stenosis at the middle segment of LAD
Statin use 2 mg pitavastatin 2.5 mg rosuvastatin 10 mg atorvastatin
LDL-C (mg/dL) 63 70 96
HDL-C (mg/dL) 39 85 39
Triglyceride (mg/dL) 131 86 130
HbA1c (%) 5.4 6.0 5.7
eGFR (mL/min/1.73 m2) 68.2 45.4 71.7

BMI, body mass index; CAD, coronary artery disease; LAD, left anterior descending artery; LDL-C, low-density lipoprotein cholesterol; HDL-C, high-density lipoprotein cholesterol; HbA1c, glycated hemoglobin; eGFR, estimated glomerular filtration rate.

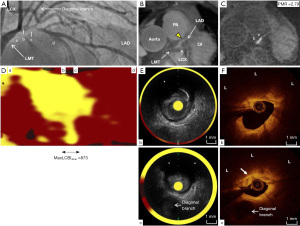

Figure 1 Imaging of culprit lesion in case 1. (A) Coronary angiography: coronary angiography identified a significant stenosis in the proximal segment of LAD artery (b and c). a-d correspond to those in (C-F). (B,C) Non-contrast T1WI: MRA visualized culprit lesion in the proximal segment of LAD artery (B). On non-contrast T1WI, high-intensity signal was observed in the proximal LAD artery (C, PMR =2.79), which corresponds to the coronary lesion on MRA (B: yellow triangle). (D,E) NIRS/IVUS imaging: NIRS-derived chemogram illustrated that maxLCBI4mm at culprit lesion was 873 (D). In particular, a greater amount of yellow signal was observed at b and c, but not a or d (D). Cross-sectional images (E) showed ultrasonic signal attenuation (asterisk) (b and c). (F) OCT imaging: culprit lesion on OCT imaging exhibited lipid-rich plaque (L) harboring cholesterol crystal (white arrow) without any intra-luminal (b and c). LCX, left circumflex artery; LMT, left main trunk; LAD, left anterior descending; PA, pulmonary artery; LV, left ventricular; PMR, plaque-to-myocardial signal intensity ratio; maxLCBI4mm, maximum 4-mm lipid core burden index; MRA, magnetic resonance angiography; T1WI, T1-weighted imaging; NIRS, near-infrared spectroscopy; IVUS, intravascular ultrasound; OCT, optical coherence tomography.

Case 2

An 81-years-old gentleman presented with cerebral infarction in the middle cerebral artery territory attributable to severe right internal carotid artery stenosis (Table 1) in August, 2017. Stress myocardium perfusion scintigraphy prior to the scheduled carotid artery stenting showed the presence of cardiac ischemia at anterior myocardium. He was taking 100 mg aspirin, 30 mg edoxaban, 20 mg azilsartan, 2.5 mg amlodipine and 2.5 mg rosuvastatin due to a history of hypertension, dyslipidemia and paroxysmal atrial fibrillation. CAG revealed one severe stenosis at the middle segment of LAD artery (Figure 2A). Non-contrast T1WI visualized the presence of coronary high-intensity plaque at this lesion (PMR =1.88; Figure 2B, Video S4). On NIRS-IVUS imaging, maxLCBI4mm at culprit site was 725 (Figure 2C). Some ultrasonic signal attenuation and low-echoic plaque were also identified (Figure 2D, Video S5). Lipid-rich plaque (L) without any thrombus was observed at the corresponding site on OCT (Figure 2E, Video S6).

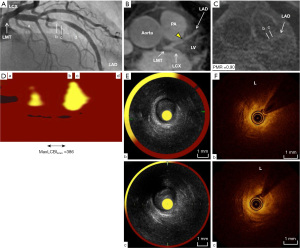

Figure 2 Imaging of culprit lesion in case 2. (A) Coronary angiography: a severe stenosis in the middle segment of LAD artery was observed (b and c). a-d correspond to those in (C-E). (B) Non-contrast T1WI: non-contrast T1WI identified the presence of high-intensity signal at the corresponding lesion of LAD artery. Its PMR was 1.88. (C,D) NIRS/IVUS imaging: on NIRS/IVUS imaging, maxLCBI4mm was 725 at culprit site. Ultrasonic signal attenuation (asterisk in b) was identified (c). (E) OCT imaging: lipid-rich plaque (L) without any thrombus was observed at the corresponding site on OCT (b and c). LCX, left circumflex artery; LAD, left anterior descending; LMT, left main trunk; PA, pulmonary artery; LV, left ventricular; PMR, plaque-to-myocardial signal intensity ratio; maxLCBI4mm, maximum 4-mm lipid core burden index; T1WI, T1-weighted imaging; NIRS, near-infrared spectroscopy; IVUS, intravascular ultrasound; OCT, optical coherence tomography.

Case 3

A 65-years-old man was referred to our institute due to chest pain on exertion in March, 2017 (Table 1). He has a history of dyslipidemia. Myocardial ischemia was noted by stress myocardium perfusion scintigraphy. CAG demonstrated the presence of severe stenosis at the middle segment of LAD artery (Figure 3A). Further evaluation of culprit plaque with MRA visualized the corresponding lesion in LAD artery (yellow arrowhead), whereas there was no HIP within his LAD artery on non-contrast T1WI (PMR =0.90) (Figure 3B,3C, Video S7). NIRS-IVUS and OCT imaging were undergone prior to PCI procedure. MaxLCBI4mm at this lesion was 386, which was numerically lower compared to other two cases (Figure 3D). Furthermore, the cross-sectional images of culprit lesion on IVUS showed the presence of low-echoic plaque without any ultrasonic attenuation (Figure 3E, Video S8). OCT demonstrated the presence of lipid plaque (L) (Figure 3F, Video S9). However, the arc of lipid plaque was marginally smaller compared to cases 1 and 2.

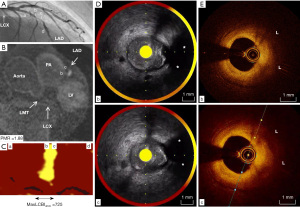

Figure 3 Imaging of culprit lesion in case 3. (A) Coronary angiography: there was a severe stenosis in the middle segment of LAD artery (b and c). a-d correspond to those in (C-F). (B,C) Non-contrast T1WI: MRA visualized the corresponding lesion in LAD artery (B, yellow arrowhead), where any high-intensity signal was not observed on non-contrast T1WI (C, PMR=0.90). (D,E) NIRS/IVUS imaging: maxLCBI4mm at this lesion was 386. IVUS showed the presence of low-echoic plaque but not ultrasonic attenuation (b and c). (F) OCT imaging: OCT demonstrated the presence of lipid plaque (L). However, the arc of lipid plaque was smaller (b and c) compared to those in other two cases. LCX, left circumflex artery; LMT, left main trunk; LAD, left anterior descending; PA, pulmonary artery; LV, left ventricular; PMR, plaque-to-myocardial signal intensity ratio; maxLCBI4mm, maximum 4-mm lipid core burden index; T1WI, T1-weighted imaging; MRA, magnetic resonance angiography; NIRS, near-infrared spectroscopy; IVUS, intravascular ultrasound; OCT, optical coherence tomography.

Ethical statement

All procedures performed in the study were in accordance with the ethical standards of the institutional and/or national research committee(s) and with the Helsinki Declaration (as revised in 2013). Written informed consent was obtained from the patients for publication of this case report and accompanying images. A copy of the written consent is available for review by the editorial office of this journal.


Discussion

Non-contrast T1WI has enabled to quantitatively visualize high-risk coronary atheroma causing future events. While this non-invasive approach has a great potential to optimize risk stratification and preventive therapies, it remains to be determined which plaque features correspond to PMR on non-contrast T1WI. In our case series, a larger maxLCBI4mm was observed at coronary lesion with coronary HIP, whereas this NIRS measure was least at the another lesion without any coronary HIP. These findings indicate that lipidic material may contribute to PMR imaged by non-contrast T1WI.

Recent study using OCT reported the importance of intraluminal thrombus in PMR (3). In this analysis including 26 patients, lesions with coronary HIP were more likely to exhibit the presence of thrombus at the surface of the lesion. In addition, the frequency of lipid-rich plaque was numerically higher at lesions containing coronary HIP. In our cases, however, despite the absence of intraluminal thrombus on OCT imaging, coronary HIP was observed at culprit lesions in cases 1 and 2. Of note, these two lesions exhibited lipid-rich features on both NIRS and OCT imaging. Similar observation was reported by our recent study which analyzed 137 lesions (4). In this study, 34% of plaques without any obvious intraluminal thrombus exhibited coronary HIP. Moreover, the presence of OCT-derived lipid-rich plaque as well as healed plaque feature predicted coronary HIP in subjects with stable coronary artery disease (4). These findings highlight that not only intraluminal thrombus but also plaque component could affect PMR on non-contrast T1WI.

Current cases suggest that the degree of lipidic materials may be an important determinant for coronary HIP. Mechanistically, fat-containing substances has been shown to cause high intensity signal due to shortening of the T1 relaxation time (6). Multi-modality imaging in our cases identified that two lesions with coronary HIP exhibited a greater maxLCBI4mm. NIRS-derived maxLCBI4mm is a histologically validated quantitative measure to evaluate lipidic burden and predict future cardiac events (5,7). Moreover, recent OCT imaging study showed that lipid arc was significantly associated with coronary HIP (4). Collectively, these evidences as well as our cases may support the association of lipidic component with coronary HIP.

There are several caveats to interpret our findings. Firstly, we imaged only LAD artery but not other vessels. Three-vessel intravascular imaging is required to further clarify the association of magnetic resonance imaging (MRI)-derived PMR with NIRS/IVUS and OCT images. The definition of coronary HIP on MRI imaging varies in each published paper. While we defined it as T1WI-derived PMR >1.4, other paper used 1.0. The standardization of its definition on MRI is needed. Given that we presented only three cases with multi-modality imaging observation at single time point, it remains unknown about the longitudinal association of PMR with NIRS/IVUS and OCT features. Clinical study with appropriate study sample size is warranted to elucidate it. We selected three patients with evaluable images. This causes selection bias of patients. It remains unknown whether current findings consistently exist in consecutively enrolled patients.


Conclusions

Current three cases suggest the possible relationship of non-contrast T1WI-derived coronary HIP with the degree of lipidic plaque components in vivo. Given that lipid-rich plaque is a precursor lesion causing acute coronary syndrome, the presence of greater amount of lipid tissues at coronary HIP may account for its association with future coronary events.


Acknowledgments

Funding: This case report was supported by the Nakatani foundation for advancement of measuring technologies in biomedical engineering 2021, and JSPS KAKENHI (Grant No. JP20K08415).


Footnote

Reporting Checklist: The authors have completed the CARE reporting checklist. Available at https://cdt.amegroups.com/article/view/10.21037/cdt-23-125/rc

Peer Review File: Available at https://cdt.amegroups.com/article/view/10.21037/cdt-23-125/prf

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://cdt.amegroups.com/article/view/10.21037/cdt-23-125/coif). YK has received honoraria and research support from Kowa, Nipro and Abbott. YK serves as an unpaid editorial board member of Cardiovascular Diagnosis and Therapy from September 2021 to August 2023. FO has received honoraria from Nipro and Abbott. The other authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. All procedures performed in the study were in accordance with the ethical standards of the institutional research committee(s) and with the Helsinki Declaration (as revised in 2013). Written informed consent was obtained from the patients for publication of this case report and accompanying images. A copy of the written consent is available for review by the editorial office of this journal.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
