Association of abnormal electrocardiography response on dobutamine stress echocardiogram with longer-term major adverse cardiovascular events in women with symptoms of ischemic heart disease

Introduction

Background

Dobutamine stress echocardiography (DSE) is a commonly utilized and well-validated procedure for the evaluation of ischemia and suspected coronary artery disease (CAD) (1). This modality has been shown to have a high accuracy (80–90%) in detecting obstructive CAD (>50% stenosis) and good prognostic value following a negative result, with a low risk of overall mortality in the absence of wall motion abnormalities (WMAs) with stress testing (2).

Rationale and knowledge gap

However, the prognostic significance of abnormal electrocardiogram (ECG) findings in the absence of WMA on stress testing remains unclear (3-6). Historically, the diagnostic value of exercise stress testing in women has been questioned to a higher rate of “false positivity” (i.e., ECG changes on exercise stress testing but <50% stenosis seen on coronary angiography) (7), but the prognostic implications of this have been infrequently studied.

Objective

The purpose of our analysis is to study the prognosis of women with ischemic ECG findings on DSE in a well-phenotyped cohort with suspected ischemia with no obstructive coronary arteries (INOCA) with core lab interpretations and long-term follow-up. We present this article in accordance with the STROBE reporting checklist (available at https://cdt.amegroups.com/article/view/10.21037/cdt-23-296/rc).

Methods

The Women’s Ischemia Syndrome Evaluation (WISE) Study was initiated by the National Institutes of Health-National Heart, Lung, and Blood Institute in 1996 to investigate women with signs and symptoms of ischemia (8). To date, the WISE study has followed more than 900 women for a median follow-up of 9.5 years after clinically indicated invasive coronary angiography. Women 18 years or older were enrolled in the WISE study, a prospective cohort study. Inclusion criteria included chest pain or other symptoms suggestive of myocardial ischemia and clinically indicated coronary angiography. Major exclusion criteria have previously been described and included comorbid conditions that affect one-year follow-up, pregnancy, contraindications to provocative diagnostic testing, cardiomyopathy, recent myocardial infarction (MI) and language barrier to questionnaire completion (8). The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). Institutional review board approval was obtained from the University of Florida at Gainesville, and written informed consent was obtained from all study participants. A flow diagram showing the cohort study design for this retrospective analysis is shown in Figure 1.

Figure 1 The flow diagram showing the cohort study design. WISE, Women’s Ischemia Syndrome Evaluation; DSE, dobutamine stress echocardiogram.

DSE protocol

DSE was performed using a protocol modified for the WISE study. A detailed protocol has previously been described (9). In brief, baseline images in standard views were obtained. Dobutamine was initiated at 5 mcg/kg/min, and dosage was increased at 5-minute increments to 10, 20, 30, and 40 mcg/kg/min. Atropine was used to attain target heart rate (HR) when indicated. The left ventricle was divided into 16 segments for analysis. Segments were graded and categorized as normal, hypokinetic, akinetic, or dyskinetic. The DSE echo was considered positive if there was an increase in the score in any segment, except for the transition from akinetic to dyskinetic (10). Studies were categorized as normal if no abnormalities were detected at baseline or peak stress and target HR was achieved. They were categorized as abnormal if there was any occurrence of WMA or increasing dyskinesis developed at peak stress or indeterminate if no abnormality was observed at baseline or peak stress and target HR was not reached. Wall motion analysis was conducted by a single cardiologist experienced in interpretation of DSE studies and remained unaware of clinical and angiogram findings (9). A 12-lead ECG was recorded at baseline, at the end of each 5-min stage and at recovery. The ECG, blood pressure, and echocardiographic images were monitored throughout the procedure. A positive ECG was defined as ≥1-mm ST segment changes, interpreted by the testing cardiologist.

Coronary angiography protocol

Coronary angiography was performed using the WISE study protocol with standard clinical techniques (9). Multiple projections of the left and right coronary arteries were recorded on 35-mm film at ≥30 frames per second. All angiography films were interpreted by the WISE Angiography Core Laboratory without knowledge of clinical or DSE findings. WISE Angiography Core Laboratory methods has previously been published. These angiograms were analyzed qualitatively for the presence or absence of luminal irregularities and stenoses. Stenoses were defined as <20%, 20–49%, and ≥50%. Angiographic coronary disease severity was assessed by the WISE coronary severity score as previously described (11).

Follow-up, mortality and MACEs

A standardized protocol-directed follow-up was conducted by experienced site nurses or physicians via telephone and/or mail communication at 6 weeks, 1 year, and annually thereafter. Subjects were provided with questionnaires regarding symptoms, hospitalizations, and diagnostic or revascularization procedures since last contact. Reported events were adjudicated by the study committee and classified as non-cardiac death, cardiovascular death or MACE including all-cause mortality, nonfatal MI, nonfatal stroke, and heart failure hospitalization. All-cause death had an average of 8 years of follow-up, while MACE had an average of 5.5 years.

Statistical analysis

Clinical variables were summarized as median [interquartile range (IQR)] for continuous variables or count (%) for categorical variables. Comparisons among subject groups [i.e., (+) ECG and (–) ECG] were made using Chi-square or Fisher’s exact tests for categorical variables and t-test or Wilcoxon rank-sum test for continuous variables. All tests were two-sided and statistical significance was considered present at P<0.05. Kaplan-Meier (KM) analysis was used to estimate survival probabilities and the log-rank test was used to compare KM curves. KM curves were stratified by ECG status for two event types: (I) overall mortality; and (II) four-component MACE as defined above. Univariate Cox regression models were constructed to obtain hazard ratio (HR) estimates with respect to ECG status. Analyses were carried out using SAS version 9.4 (SAS Institute, Cary, NC, USA).

Results

Baseline characteristics

Women with positive DSE (n=17), defined as an increase in score based on wall motion scoring index were excluded except for akinetic to dyskinetic (n=10), providing 82 patients in this analysis (Figure 1). Of the 82 patients included 75 (91.5%) achieved target HR. The baseline characteristics and demographics are summarized in Table 1. There were no significant differences between (−) ECG and (+) ECG groups for race, hypertension (HTN), diabetes mellitus (DM), dyslipidemia, smoking status, or baseline medications.

Nine women (11.0%) had (+) ECG findings. Among those with (+) ECG findings, 4 (44.4%) and 3 (33.3%) had 20–49% stenosis and ≥50% stenosis, respectively. Seventy-three (89.0%) patients had (−) ECG findings, and among those, there were 24 (33.3%) and 20 (27.8%) with non-obstructive stenosis (20–49%) and obstructive disease (≥50%), respectively. There was no significant difference between (+) ECG and (−) ECG groups for CAD severity (P=0.672). Overall, the difference between (+) ECG and (−) ECG groups was statistically significant for MACE (P=0.022) but not for all-cause mortality (P=0.087).

A secondary analysis of MACE and death by coronary artery severity demonstrated a statistically significant difference in MACE (P=0.001) and all-cause mortality (P=0.016) when stratified by severity of stenosis (<20%, 20–49% and ≥50%). In women with <20% stenosis, MACE occurred in 2/30 (6.7%) and death in 2/30 (6.7%). Comparatively, in those with non-obstructive CAD (20–49% stenosis), MACE occurred in 12/28 (42.9%) and death in 6/28 (21.4%). In those with obstructive disease, MACE occurred in 11/23 (47.8%) and death in 9/23 (39.1%). When further stratified by ECG response and CAD severity, there were no differences in mortality or MACE.

Long-term adverse outcomes

All-cause mortality had an average of 8 years of follow-up, while four-component MACE had an average of 5.5 years. In this long-term follow-up, women with (+) ECG had a significantly higher risk of MACE [unadjusted HR: 4.91, 95% confidence interval (CI): 1.83, 13.19, P=0.002] and all-cause mortality (unadjusted HR: 3.09, 95% CI: 1.00, 9.56, P=0.050) compared to patients with (−) ECG, regardless of echo response. KM curves for freedom from events for MACEs and mortality by ECG findings on DSE are shown in Figure 2.

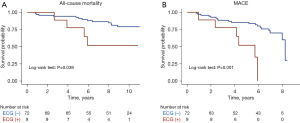

Figure 2 Long-term mortality and MACE outcomes by ECG findings on DSE. (A) Kaplan-Meier curves for freedom from events for mortality and (B) MACE by ECG findings on dobutamine stress echocardiography. ECG, electrocardiogram; MACE, major adverse cardiovascular event; DSE, dobutamine stress echocardiogram.

Discussion

Key findings

Our study demonstrates (+) ECG in the absence of WMA during DSE predicts adverse cardiovascular outcomes regardless of echocardiography findings in women undergoing clinically indicated coronary angiography for suspected ischemic heart disease. Notably, a considerable proportion of women with (+) ECG findings (44.4%) had non-obstructive CAD found on invasive angiogram.

Explanations of findings and comparison with similar studies

Prior studies that explored the association between the abnormal ECG findings in the absence of WMA on stress testing and long-term outcomes have yielded mixed results. A contemporary study of 15,077 patients (58.7% women) undergoing exercise stress Echo, patients with (+) ECG and (−) echo had higher rates of MACEs compared to patients with both negative ECG and echo (14.6% vs. 8.5%) over a median follow-up of 7.3 years (3). Historical work has yielded similar findings with a 1999 study of 558 patients (60.6% women) finding overall cardiac event rates of 23% when there was an ischemic ECG response but negative WMA, compared to 7% when both ECG and WMA were negative (4). According to this study, the ability of an ischemic ECG response to predict future cardiac event rates was similar to that of WMAs at rest and a positive stress echo response. Conversely, a study of 1,268 patients (48% women) found that normal findings on stress echo confers a benign prognosis for MACE, independent of ECG response (5). A retrospective study of 677 patients with negative treadmill stress echo results found that (+) ECG result was not predictive of all-cause death, MI or revascularization over a median follow-up of 95 months (6). Notably, in this study, female gender was found to be an independent predictor for events.

WMAs seen on DSE have been shown to reliably detect multi-vessel stenosis (12) but has lower sensitivity in women with single-vessel stenosis and low angiographic severity score (9). Furthermore, a negative noninvasive stress test does not rule out coronary vasomotor dysfunction in symptomatic patients, with dobutamine stress echo having a sensitivity of 29% (95% CI: 8–58%), specificity of 57% (95% CI: 18–90%), and positive predictive value of only 57% (95% CI: 8–58%) for vasomotor dysfunction (13). As such, we postulate that this population of patients with (+) ECG findings but no new or worsening WMA on DSE may represent women with INOCA disease and coronary vasomotor dysfunction.

It has previously been reported that women with INOCA are at risk for long-term adverse outcomes. Of the total WISE cohort undergoing invasive angiogram, 551 were found to have no obstructive CAD. Analysis of these women found that INOCA was associated with considerable morbidity with a 2.5% rate of MACE at 5-year follow up (14). Furthermore, women with stable INOCA and non-obstructive CAD had 10-year all-cause death and cardiac death rates of 17% and 11% respectively, compared to 10% and 6% in women with normal coronaries (15). Females with non-obstructive disease are at increased risk for progression to obstructive CAD (14). Therefore, positive ECG findings in the absence of worsening WMA on stress testing should not be discounted as they may reflect INOCA and consequently an increased risk for future cardiac events, particularly in women. Prior studies that have looked at cohorts of patients with known microvascular dysfunction based on invasive vasoreactivity testing or positron emission tomography (PET) myocardial perfusion study and subsequently underwent non-invasive stress have revealed (+) ECG have good specificity for coronary microvascular dysfunction (13,16). Therefore, further angiographic testing and/or consideration of empiric therapy targeted towards coronary microvascular dysfunction and angina may be warranted in patients with positive ECG findings in the absence of worsening WMAs on stress testing.

Implications of findings

Noninvasive testing for obstructive CAD has generally been thought to have poorer specificity for women compared to men (9). Equivocal or negative stress findings may be a representation of the higher prevalence of INOCA and coronary microvascular dysfunction observed in women (11). Regarding management, it has been shown that women with suspected CAD have fewer additional diagnostic tests than men after an initial abnormal noninvasive stress test result, even when initial diagnostic test positivity rates are similar (17). Cardiac death and MI rates following non-invasive testing have subsequently found to be higher in women during two years of follow-up (6.9% vs. 2.4%) (17). Together, these findings illustrate the importance of recognizing ischemic ECG findings in women undergoing noninvasive testing for signs and symptoms of ischemia to guide appropriate downstream testing and treatments.

Strengths and limitations

Our study adds to the existing literature on prognostic significance of abnormal ECG in stress echo, and to our knowledge is the first study to do so in a cohort of women with suspected ischemia utilizing echo results analyzed in a core lab.

Our results are consistent with a large cohort study showing adverse prognosis in patients with abnormal ECG response on exercise stress testing (3), but is limited by the small sample size of women undergoing DSE at a single WISE site, by design. Specifically, an in-depth analysis of discrepant (+) ECG/(−) echo findings was limited due to the small sample size of subjects with this result. The DSE studies were interpreted by a single experienced cardiologist, and it may be possible that wall motional abnormalities were missed. Furthermore, strain analysis was not available in this data set. Additionally, our results may not be relevant to broader populations of women because the WISE study excluded women with unstable symptoms and as such, may have a lower prevalence of obstructive coronary disease. We hypothesize that women in this cohort with adverse events and non-obstructive disease may represent those with vasomotor dysfunction, but do not report findings of microvascular function or vasospasm. While some women in this cohort did undergo invasive coronary function testing for these purposes, the sample size was small. Future work may also aim to correlate measurements of coronary flow reserve and coronary blood flow to assess whether this population may be phenotypically representative of coronary microvascular dysfunction.

Conclusions

Positive ECG findings in the setting of negative echo findings on dobutamine stress testing may be an indicator of longer-term risk for major adverse cardiovascular outcomes in women with signs and symptoms of ischemia. It is important to recognize this at-risk population of women to target further diagnostics and/or intensify medical management. Larger datasets are needed to further understand and develop sex-specific prognostic metrics for non-invasive stress testing in the evaluation of ischemic heart disease.
