Multinational experience with next-generation sequencing: opportunity to identify transthyretin cardiac amyloidosis and Fabry disease
Original Article

Multinational experience with next-generation sequencing: opportunity to identify transthyretin cardiac amyloidosis and Fabry disease

Sandra Marques e Silva1, Andrea Virginia Ferreira Chaves2,3,4, Murillo Antunes5,6, Juan Pablo Costabel7, Armando Alves da Fonseca8, Adriana Furtado9, Juan Esteban Gomez-Mesa10,11, Francisco Javier Marin Gutiérrez12, Oren Caspi13, Irina Maksimova14, Manish Maski15, Cecilia Micheletti16, José Luiz Barros Pena17,18, Márcia Gonçalves Ribeiro19, Maria Juliana Rodríguez-González20, Omac Tufekcioglu21, Huseyin Onay22,23 ORCID logo

1GEDORAC/DCC/SBC–Study Group on Rare Diseases with Cardiac Impairment from Brazilian Society of Cardiology, Hospital de Base do Distrito Federal (HBDF), Brasilia, Brazil; 2Cardiology Department, Hospital Agamenon Magalhães, Recife, Brazil; 3RARUS, Referral Service for Rare Disease, Recife, Brazil; 4Medicine Department, Mauricio de Nassau University Center UNINASSAU, Recife, Brazil; 5The Heart Institute, InCor, University of São Paulo Medical School, São Paulo, Brazil; 6Cardiology Department, São Francisco University (USF), Bragança Paulista, São Paulo, Brazil; 7Coronary Care Unit, Cardiovascular Institute of Buenos Aires, Buenos Aires, Argentina; 8DLE Laboratory, Institute Hermes Pardini S.A., Rio de Janeiro, Brazil; 9Sanofi, Global Medical Affairs–Rare Disease, Sao Paulo, Brazil; 10Cardiology Department, Hospital Fundacion Valle del Lili, Cali, Colombia; 11Medicine Department, Icesi University, Cali, Colombia; 12Mexican Social Security Institute, General Hospital of Zona 1, San Luis Potosi, Mexico; 13Heart Failure Unit, Cardiology Department, Rambam Health Care Campus and the B. Rapport Faculty of Medicine, Technion, Israel; 14Sanofi, Global Medical Affairs–Rare Disease, Moscow, Russia; 15Sanofi, Global Medical Affairs–Rare Disease, Cambridge, MA, USA; 16DLE Laboratory, Institute Hermes Pardini S.A., São Paulo, Brazil; 17Faculty of Medical Sciences of Minas Gerais, Belo Horizonte, MG, Brazil; 18Echocardiography Department, Hospital Felício Rocho, Belo Horizonte, MG, Brazil; 19DLE Laboratory, Fleury Group, Rio de Janeiro, Brazil; 20Heart Failure Department, Cardioinfantil Foundation, Cardiac Institute, Bogota, Colombia; 21Department of Cardiology, University of Health Sciences, Ankara Bilkent City Hospital, Ankara, Turkey; 22Multigen Genetic Diseases Diagnosis Center, Izmir, Turkey; 23Gene2Info Health Informatics, Istanbul, Turkey

Contributions: (I) Conception and design: SMe Silva, MJ Rodríguez-González, H Onay, I Maksimova, A Furtado, M Maski; (II) Administrative support: None; (III) Provision of study materials or patients: None; (IV) Collection and assembly of data: MG Ribeiro, C Micheletti, AA da Fonseca; (V) Data analysis and interpretation: SMe Silva, AVF Chaves, M Antunes, JP Costabel, JE Gomez-Mesa, FJM Gutiérrez, O Caspi, JLB Pena, MJ Rodríguez-González, O Tufekcioglu, MG Ribeiro, C Micheletti, AA da Fonseca; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

Correspondence to: Huseyin Onay, MD, PhD. Multigen Genetic Diseases Diagnosis Center, Mansuroglu Mah. 1593/1 Sk. No:4 D:17 (Lider Centrio, B Blok, Kat:2), 35535 Bayraklı/Izmir, Turkey; Gene2Info Health Informatics, Maslak Mahallesi Anka Sokak No:5 Eclipse Maslak E Blok K:4 D:8, 34398 Sarıyer/İstanbul, Turkey. Email: huseyin.onay@multigen.com.tr; onayhuseyin@gmail.com.

Background: Sarcomeric hypertrophic cardiomyopathy (HCM) must be differentiated from phenotypically similar conditions because clinical management and prognosis may greatly differ. Patients with unexplained left ventricular hypertrophy require an early, confirmed genetic diagnosis through diagnostic or predictive genetic testing. We tested the feasibility and practicality of the application of a 17-gene next-generation sequencing (NGS) panel to detect the most common genetic causes of HCM and HCM phenocopies, including treatable phenocopies, and report detection rates. Identification of transthyretin cardiac amyloidosis (ATTR-CA) and Fabry disease (FD) is essential because of the availability of disease-specific therapy. Early initiation of these treatments may lead to better clinical outcomes.

Methods: In this international, multicenter, cross-sectional pilot study, peripheral dried blood spot samples from patients of cardiology clinics with an unexplained increased left ventricular wall thickness (LVWT) of ≥13 mm in one or more left ventricular myocardial segments (measured by imaging methods) were analyzed at a central laboratory. NGS included the detection of known splice regions and flanking regions of 17 genes using the Illumina NextSeq 500 and NovaSeq 6000 sequencing systems.

Results: Samples for NGS screening were collected between May 2019 and October 2020 at cardiology clinics in Colombia, Brazil, Mexico, Turkey, Israel, and Saudi Arabia. Out of 535 samples, 128 (23.9%) samples tested positive for pathogenic/likely pathogenic genetic variants associated with HCM or HCM phenocopies with double pathogenic/likely pathogenic variants detected in four samples. Among the 132 (24.7%) detected variants, 115 (21.5%) variants were associated with HCM and 17 (3.2%) variants with HCM phenocopies. Variants in MYH7 (n=60, 11.2%) and MYBPC3 (n=41, 7.7%) were the most common HCM variants. The HCM phenocopy variants included variants in the TTR (n=7, 1.3%) and GLA (n=2, 0.4%) genes. The mean (standard deviation) ages of patients with HCM or HCM phenocopy variants, including TTR and GLA variants, were 42.8 (17.9), 54.6 (17.0), and 69.0 (1.4) years, respectively.

Conclusions: The overall diagnostic yield of 24.7% indicates that the screening strategy effectively identified the most common forms of HCM and HCM phenocopies among geographically dispersed patients. The results underscore the importance of including ATTR-CA (TTR variants) and FD (GLA variants), which are treatable disorders, in the differential diagnosis of patients with increased LVWT of unknown etiology.

Keywords: Fabry disease (FD); hypertrophic cardiomyopathy (HCM); next-generation sequencing (NGS); transthyretin cardiac amyloidosis (ATTR-CA)


Submitted Apr 26, 2023. Accepted for publication Nov 17, 2023. Published online Mar 18, 2024.

doi: 10.21037/cdt-23-191


Highlight box

Key findings

• A 17-gene next-generation sequencing (NGS) panel identified hypertrophic cardiomyopathy (HCM) variants (21.5% of 535 samples) and HCM phenocopy variants (3.2%) among patients with unexplained increased left ventricular wall thickness (LVWT), with an overall diagnostic yield of 24.7%.

What is known and what is new?

• A genetic diagnosis for patients with LVWT of unknown origin by either diagnostic genetic testing or predictive genetic testing aids in determining the prognosis and allows for timely management.

• The 17-gene NGS panel, using dried blood spot samples, effectively detected gene variants that cause the most common forms of HCM and HCM phenocopies, including the treatable disorders transthyretin cardiac amyloidosis and Fabry disease, in patients with increased LVWT from six countries.

What is the implication, and what should change now?

• This 17-gene NGS screening strategy has the potential to reduce the diagnostic challenges experienced by patients with unexplained increased LVWT and facilitate personalized care.


Introduction

The 2020 American College of Cardiology/American Heart Association guidelines define hypertrophic cardiomyopathy (HCM) as “a maximal end-diastolic wall thickness of ≥15 mm anywhere in the left ventricle in the absence of another cause of hypertrophy in adults” (1). The hallmark of HCM is its clinical heterogeneity, ranging from a benign asymptomatic state to arrhythmias, heart dysfunction, and sudden cardiac death (SCD) (2). In young adults, the most common etiology of HCM is SCD (3). The global prevalence of HCM among adults is 0.16–0.29% (~1:625–1:344 individuals). An even higher prevalence of 0.6% (1:167) has been reported with sensitive radiological imaging techniques, evaluation of family members, and greater use of genetic testing (4).

Variations in genes encoding cardiac sarcomere proteins account for up to 60% of HCM cases in adults (5). HCM is regarded as a monogenic cardiac disease; however, it exhibits extensive genetic heterogeneity. Due to this genetic diversity, the pathogenic genes remain unidentified in approximately 40% of HCM patients (2,5). Many genes other than sarcomeric genes have been associated with HCM; therefore, HCM is no longer considered monogenic in origin and may be due to polygenicity or oligogenicity (6,7).

Certain diseases that mimic HCM are referred to as HCM phenocopies (2). These include conditions such as protein kinase adenosine monophosphate-activated noncatalytic subunit gamma 2 (PRKAG2) cardiomyopathy, glycogen storage disorders such as Danon disease, cardiac amyloidosis, lysosomal storage disorders [e.g. Fabry disease (FD)], and other inborn errors of metabolism (4). Transthyretin cardiac amyloidosis (ATTR-CA) and FD are caused by pathogenic variants of TTR (18q12.1) and GLA (Xq22.1), respectively (8-10), and increased left ventricular wall thickness (LVWT) is a key diagnostic feature of both disorders (8-11). Amyloid cardiomyopathy results from extracellular deposits of amyloid in the myocardium, leading to symptoms of chest pain, arrhythmia, and sudden death (10). Clinically, FD may present as cardiac hypertrophy, arrhythmias, fibrosis, and heart failure due to reduced α-galactosidase A enzyme activity (8). It is crucial to differentiate sarcomeric HCM and phenotypically similar conditions because the prognosis and management differ greatly as cause-specific therapies are available (12,13). Hence, clinicians should consider the presence of HCM phenocopies in patients with unexplained left ventricular hypertrophy (LVH) who do not meet the standard HCM diagnostic criteria, as well as predictive genetic testing in relatives of a patient with confirmed HCM or more limited hypertrophy (13–14 mm) (1). Our study explored the feasibility and practicality of the application of a 17-gene next-generation sequencing (NGS) panel to detect gene variants that cause the most common forms of HCM and HCM phenocopies in patients with unexplained increased LVWT from six countries and detection rates for pathogenic/likely pathogenic variants are reported.


Methods

Sample population

The study population for this cross-sectional study included subjects from cardiology clinics located in Colombia, Brazil, Mexico, Turkey, Israel, and Saudi Arabia. Countries were selected based on interest in participation, the potential pool of undiagnosed patients in the cardiology domain, and the ability to execute the study. All participating institutions were informed and agreed to the study. From the study population, 544 samples were received by the Diagnósticos Laboratoriais Especializados (DLE) between May 2019 and October 2020. However, due to preanalytical issues and the absence of informed consent, only 535 samples were analyzed for this study.

Inclusion criteria

Patients with an increased LVWT of ≥13 mm in one or more left ventricular myocardial segments (as measured by any imaging method—computed tomography, cardiac magnetic resonance imaging, or echocardiography), in the absence of abnormal loading disease conditions that justify increased LVWT, were included in the study.

Exclusion criteria

Patients with increased LVWT due to severe hypertension (defined as systolic blood pressure ≥180 mmHg and/or diastolic blood pressure ≥120 mmHg), severe aortic stenosis (≤1 cm2), or genetically confirmed etiology of increased LVWT were excluded from the study.

Ethical approval and patient consent to participate

This study was performed in accordance with the ethical principles of the Declaration of Helsinki (as revised in 2013). The central laboratory study was approved by Institute of Childcare and Pediatrics Martagão Gesteira/Federal University of Rio de Janeiro under approval No. CAAE 53630421.3.0000.5264. Signed informed consent forms for blood sampling and analysis were obtained at the participating sites from all patients included in the study.

Procedures

Peripheral dried blood spot (DBS) samples were collected from patients onto a filter paper and stored at room temperature. Demographic details, including age, gender, and country of origin, were simultaneously recorded. Clinical and cardiac imaging data of patients were not collected in this pilot study. Deoxyribonucleic acid (DNA) from blood spots was extracted automatically using a QIAsymphony Investigator Kit® (Qiagen®). Both DBS and extracted DNA were kept refrigerated (4 ℃). Anonymized samples were analyzed at the DLE.

Sequencing analysis

In selecting genes to be included in the NGS panel, the global prevalence, national and regional epidemiology, and local technical capabilities were considered. The pathogenicity of variants was classified according to the consensus recommendations published by the American College of Medical Genetics and Genomics (ACMG) and the Association for Molecular Pathology (AMP) (14,15) into categories such as pathogenic, likely pathogenic (probability greater than 90% of being pathogenic), uncertain significance, likely benign (more than 90% likely to be benign), and benign. ACMG uses a series of criteria to establish a scoring system based on variant information (e.g., protein effect, information in literature, position in the transcript, functional assays, prediction software, and database). The variant classification is determined based on the presence or absence of certain traits. A 17-gene panel was developed to detect known splice regions and flanking regions (20 base pairs adjacent to each exon) of the targeted genes using DBS samples. Information on the 17 genes included in the panel is presented in Table 1.

Table 1

A 17-gene panel to detect hypertrophic cardiomyopathy and its phenocopies

Gene Locus Exons sequenced OMIM HCM or HCM phenocopy
ACTC1 15q14 7 102540 HCM
TNNI3 19q13.42 8 191044 HCM
MYBPC3 11p11.2 35 600958 HCM
MYH7 14q11.2 40 160760 HCM
MYL2 12q24.11 7 160781 HCM
MYL3 3p21.31 7 160790 HCM
TPM1 15q22.2 14 191010 HCM
TNNT2 1q32.1 17 191045 HCM
TNNC1 3p21.1 6 191040 HCM
PRKAG2 7q36.1 22 602743 HCM phenocopy
PTPN11 12q24.13 16 176876 HCM phenocopy
TTR 18q12.1 4 176300 HCM phenocopy
LAMP2 Xq24 10 309060 HCM phenocopy
GLA Xq22.1 7 300644 HCM phenocopy
PLN 6q22.31 2 172405 HCM phenocopy
FLNC 7q32.1 48 102565 HCM phenocopy
DES 2q35 9 125660 HCM phenocopy

OMIM, Online Mendelian Inheritance in Man; HCM, hypertrophic cardiomyopathy.

Library preparation and NGS

Initially, the dilution of genomic DNA (10–500 ng) was performed with ultrapure water. Genomic libraries were prepared according to instructions provided by Agilent (Agilent Sure Select XT HS and XT Low Input Custom 1-499 kb 96 reactions Design ID: 3223981). Qualitative and quantitative validation of all DNA libraries was performed using an automatic gel electrophoresis method (TapeStation D1000 Screen Tape) and a fluorescence-based measurement method (Qubit™ dsDNA HS Assay Kit), respectively.

SureSelect XT HS and XT Low Input were used for pooling and hybridizing successfully validated DNA libraries to synthesize probes that were in accordance with the human genome reference sequence version GRCh37 (hg19). In-house-designed, biotin-labeled oligonucleotide probes were generated for binding with targeted gene sequences.

The Agilent SureSelect XT HS and XT Low Input preparation automation guide (Agilent) was utilized to prepare the target-captured library as per the manufacturer’s protocol, with slight modifications for samples on DBS. In addition, the automatic gel electrophoresis method (TapeStation D1000 Screen Tape) was employed to identify the final, size-adjusted concentration of the target-captured DNA fragments.

The sequencing of target-enriched DNA fragments was performed by Illumina NextSeq 500 and NovaSeq 6000. These sequencers carried out the sequencing via pair-end and two 150-base pair reads having an average coverage of a minimum of 20× to ensure the quality of the data. A fully characterized positive control was included in each sequencing run.

NGS quality and data analysis

High-end quality control (QC) procedures were conducted along the sequencing process to identify the samples. Apart from sample identification, these procedures were also performed to ensure good quality of isolated DNA, library preparation, target capture, and sequencing. Furthermore, mapping and variant QC metrics were computed and used on the sequencing output to exclude and rerun failed samples. A bioinformatics analysis pipeline was utilized to align the sequencing data against the human genome reference sequence version GRCh37 (hg19) and obtain relevant information. An in-house software (‘DLE-Tool’) that uses Burrows-Wheeler for alignment (0.7.15), variant calling (single-nucleotide variants and indels) based on mpileup (1.3.1), and Ensembl Variant Effect Predictor (v105) annotation was employed to assess the pathogenicity [or variant of uncertain significance (VUS)] of all identified variants. Franklin variant interpretation (Genoox) was used especially in cases with novel variants.

Statistical analysis

Demographic and gene variant data were summarized using descriptive statistics.

Continuous variables were described using mean with SD and median with range, and N was calculated for categorical variables.


Results

A total of 535 samples from patients across Colombia, Brazil, Mexico, Turkey, Israel, and Saudi Arabia were analyzed [311 (58.1%) males, 222 (41.5%) females, and gender not recorded for 2 (0.4%) individuals]. Table 2 provides the demographic characteristics of the included patients.

Table 2

Demographics of patients with hypertrophic cardiomyopathy and its phenocopies

Overalla HCM + HCM phenocopies HCMb HCM phenocopiesc ATTR-CA FD
N 535 128 113 17 7 2
Mean age (SD), years 49.9 (17.7) 42.8 (17.9) 42.0 (17.4) 46.5 (20.1) 54.6 (17.0) 69.0 (1.4)
Median age [range], years 51 [4–92] 43 [4–85] 43 [4–85] 46 [11–73] 44 [31–73] 69 [68–70]

a, excluded were samples with missing (n=5) or incorrect age (n=5); b, HCM variants: MYBPC3, MYH7, TNNI3, TNNT2, TNNC1, TPM1, MYL3, MYL2, and ACTC1; c, HCM phenocopy variants (this includes two patients with double mutations, each with an HCM variant and an HCM phenocopy): DES, GLA, FLNC, LAMP2, PLN, PRKAG2, PTPN11, and TTR. HCM, hypertrophic cardiomyopathy; ATTR-CA, transthyretin cardiac amyloidosis; FD, Fabry disease; SD, standard deviation.

HCM and HCM phenocopy variants considered to be pathogenic/likely pathogenic were identified in a total of 128 patient samples (23.9%). In four of the 128 samples (0.7%), a second pathogenic/likely pathogenic variant (associated with HCM in two samples and with an HCM phenocopy in two samples) was detected in addition to the HCM variant. Among the 132 detected variants, 115 (21.5%) variants were associated with HCM and 17 (3.2%) variants with HCM phenocopies. The mean [standard deviation (SD)] age of the 128 patients was 42.8 (17.9) years. The distribution of variants by country is shown in Figure 1, and classifications of pathogenicity and nucleotide and amino acid changes are provided in Table S1.

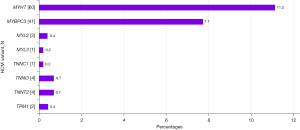

Figure 1 Distribution of pathogenic/likely pathogenic variants associated with hypertrophic cardiomyopathy or its phenocopies within the total population. HCM, hypertrophic cardiomyopathy; ATTR-CA, transthyretin cardiac amyloidosis; FD, Fabry disease.

Of the patients with pathogenic/likely pathogenic HCM variants (n=113), 56 patients (49.6%) were male, and 57 patients were female (50.4%). Overall, the most prevalent HCM variants were MYH7 (n=60, 11.2%) and MYBPC3 (n=41, 7.7%) (Figure 2).

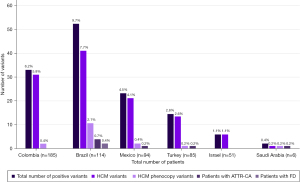

Figure 2 Frequencies of patients with confirmed hypertrophic cardiomyopathy gene variants. No samples tested positive for ACTC1.

HCM phenocopy variants considered to be pathogenic/likely pathogenic were identified in 17 patients [9 males (52.9%) and 8 females (47.1%)]. TTR variants were the most prevalent HCM phenocopy variants (n=7; 1.3%) and were found in 5 males and 2 females [mean (SD) age 54.6 (17.0) years]. Other pathogenic/likely pathogenic HCM phenocopy variants detected in more than one sample included LAMP2 (n=3, 0.6%), DES (n=2, 0.4%), and GLA variants (n=2, 0.4%). The GLA variants were found in female patients [mean (SD) age 69.0 (1.4) years] and were predicted to be associated with the ‘classic’ phenotype (c.413delG) and a ‘later-onset’ phenotype of FD (c.644A>G) according to the International Fabry Disease Genotype–Phenotype (dbFGP) database (http://dbfgp.org/dbFgp/fabry/Mutation.html), which was available online during the assessment of data.


Discussion

HCM is the most common inherited form of cardiomyopathy and is associated with considerable genotypic variations. Advances in gene sequencing provide opportunities to improve diagnostic certainty and differentiate genetic sarcomeric HCM from phenocopies (16). However, as a result of an incomplete understanding of the genetic variants and their pathogenicity, patients may remain with a diagnosis unconfirmed by molecular diagnostics (5). Establishing an early diagnosis is essential as it allows the determination of the prognosis and appropriate therapeutic intervention. In this pilot study of 535 patients with unexplained increased LVWT, the 17-gene NGS panel showed a diagnostic yield of 24.7% for pathogenic/likely pathogenic variants associated with HCM or HCM phenocopies.

The diagnostic yield of the panel for confirmed HCM was found to be 21.5%. Evidence from published studies presented in Table S2 indicates that the diagnostic yield of NGS screening methods for HCM ranged from 21% to 79% (17-26). The most prevalent HCM gene variants in the present study were MYH7 (11.2%) and MYBPC3 (7.7%). HCM phenocopies were confirmed in 3.2% of patients, which is less frequent compared with the published range of 5–10% for testing projects for HCM phenocopies (27). The present study also reported ATTR-CA as the most frequent phenocopy (1.3%). Six of the published studies investigated the diagnostic yield for ATTR-CA among patients with HCM (Table S2). Five studies did not detect variants in the TTR gene (17,18,20-22). A study conducted in Italy included 343 patients who had been referred with a tentative HCM diagnosis and reported a diagnostic yield of 3.5% and 2% for ATTR-CA and FD, respectively (11-gene panel) (26). The diagnostic yield for FD (0.4% in the current study) ranged from 0% to 5.6% in NGS-based studies among HCM patients (Table S2) (17-20,22,24-26). Less stringent risk stratification and greater geographic dispersion of patients in the current study may have contributed to the differences in the diagnostic yield rates compared with the other studies discussed above.

It is noteworthy that the present study enrolled the highest number of patients compared to other published NGS-based studies that analyzed HCM patients as summarized in Table S2. Additionally, it is also the only study that enrolled patients from different countries. Interestingly, the gene panels used in three of the ten studies did not include the TTR gene. The results of the present study signify the importance of the inclusion of TTR in the NGS screening panels.

Hereditary ATTR-CA is an autosomal-dominant disease with considerable phenotypic heterogeneity with certain TTR variants causing exclusively infiltrative cardiomyopathy (10). FD is an X-linked disorder with phenotypes varying from the classic phenotype, with pediatric-onset and multi-organ involvement, to later-onset, a predominantly cardiac phenotype. Manifestations are diverse in female FD patients in part due to variations in residual enzyme activity and X chromosome inactivation patterns (13). Lack of recognition of these clinical entities, non-specific symptoms, and co-morbidities often lead to delayed diagnosis, resulting in disease progression (10,13).

A confirmed diagnosis of ATTR-CA or FD allows appropriate and timely initiation of cause-specific therapy (i.e. stabilizing molecules or genetic silencers for ATTR-CA (12), and enzyme replacement therapy or chaperone therapy for FD (13,28) to relieve symptoms and to improve the prognosis.

The diagnostic yield for pathogenic variants and VUS is enhanced by using the NGS-based technique. The clinical interpretation of NGS testing results was based on the pathogenicity of the sequencing variants, which was ascertained as per the ACMG/AMP guidelines (14,15). Additionally, a VUS temperature scale may be used to assess the variant classification (14). Other web-based databases of genetic variants that may contain additional disease-relevant information on VUS are presented in Table S3. These resources serve to support clinicians in the interpretation of genetic testing results, aiding in the accurate assessment and understanding of genetic variants associated with HCM and HCM phenocopies.

This pilot study provided the first evidence of the feasibility of NGS testing using the 17-gene panel and its effectiveness in increasing the diagnostic yield for HCM and its phenocopies, including ATTR-CA and FD. Therefore, it has the potential to reduce the diagnostic odyssey experienced by patients with an unexplained increased LVWT and their families and facilitate appropriate genetic counseling (including identification of relatives at risk of having an inherited heart condition) and a better outcome of current therapies (29).

An important limitation of this pilot study is that the clinical data of patients were not collected. Furthermore, cardiac imaging data were not collected because of a lack of access to cardiac magnetic resonance imaging in the participating countries. Thus, we were not able to perform critical analyses of genotype–phenotype associations. Data on the ethnicity of patients were not collected. Such data are important as variations in ethnic background affect the penetrance and expressivity of genetic variants. The gene panel used in our study was limited to 17 genes associated with the most common forms of HCM and HCM phenocopies. This approach challenged the detection of other genes, including novel genes and deep intronic variants. Lastly, the number of patients included in the current pilot study was relatively small. A larger confirmatory study involving 2,068 patients from 21 countries is currently ongoing.


Conclusions

A diagnostic pilot study was conducted to investigate the feasibility of using a 17-gene NGS panel to detect gene variants associated with the most common forms of HCM and HCM phenocopies in patients with an unexplained increased LVWT. DBS samples derived from 535 patients from six countries were analyzed. This strategy was effective in the identification of patients with pathogenic/likely pathogenic variants associated with HCM (21.5%) or HCM phenocopies (3.2%) with an overall diagnostic yield of 24.7%. Early confirmation of the underlying etiology of HCM and HCM phenocopies is essential as patient outcomes largely depend on the early initiation of cause-specific therapy, if available.


Acknowledgments

We thank the patients, clinicians, and hospital staff who were involved in this NGS diagnostic project, which was funded by Sanofi. BioQuest Solutions provided editorial support for the development of this manuscript, which was funded by Sanofi.

Funding: This diagnostic project was funded by Sanofi.


Footnote

Data Sharing Statement: Available at https://cdt.amegroups.com/article/view/10.21037/cdt-23-191/dss

Peer Review File: Available at https://cdt.amegroups.com/article/view/10.21037/cdt-23-191/prf

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://cdt.amegroups.com/article/view/10.21037/cdt-23-191/coif). All authors report this study was funded by Sanofi. S.M.e.S. received speaker honoraria and grant/research support from Takeda, Pint Pharma, Pfizer and Sanofi; consulting fees from Chiesi Farmaceutici; and support for attending meetings and traveling from Takeda, Pint Pharma, Pfizer and Sanofi; and received support from Sanofi for current research and manuscript. A.V.F.C. received advisory fees and honoraria for lectures from Takeda, Sanofi and Pint-Pharma; support for attending meetings and/or traveling from Sanofi, Takeda and Pint-Pharma; and grant/research support from Multicare; Participation on a Data Safety Monitoring Board or Advisory Board for Takeda, Sanofi, and Pint-Pharma; and received support from Sanofi for current research and manuscript. M.A. received speaker honoraria from Takeda, Pfizer, and Sanofi; and grant/research support from Novartis and Pfizer; and received support from Sanofi for current research and manuscript. J.P.C. received support from Sanofi for current research and manuscript. A.A.d.F. received support from Sanofi for current research and manuscript. A.F. is an employee and shareholder of Sanofi and received support from Sanofi for current research and manuscript. J.E.G.M. received support from Sanofi for current research and manuscript. F.J.M.G. received support from Sanofi for current research and manuscript. O.C. received advisory fees from Sanofi Aventis and received support from Sanofi for current research and manuscript. I.M. is an employee and shareholder of Sanofi and received support from Sanofi for current research and manuscript. M.M. is an employee and shareholder of Sanofi and received support from Sanofi for current research and manuscript. C.M. received support from Sanofi for current research and manuscript. J.L.B.P. received advisory fees from Sanofi and received support from Sanofi for current research and manuscript. M.G.R. received support from Sanofi for current research and manuscript. M.J.R.G. received advisory fees and honoraria for lectures from Sanofi and received support from Sanofi for current research and manuscript. O.T. receives honoraria and lecture fees from Pfizer and Sanofi, payment for expert testimony from Pfizer; and received support from Sanofi for current research and manuscript. H.O. received speaker honoraria from Sanofi and received support from Sanofi for current research and manuscript. The authors have no other conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. This study was performed in accordance with the ethical principles of the Declaration of Helsinki (as revised in 2013). The central laboratory study was approved by Institute of Childcare and Pediatrics Martagão Gesteira/Federal University of Rio de Janeiro under approval No. CAAE 53630421.3.0000.5264. Signed informed consent forms for blood sampling and analysis were obtained at the participating sites from all patients included in the study.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
