Automated detection of cardiovascular disease by electrocardiogram signal analysis: a deep learning system

Introduction

Automated analysis of electrocardiogram (ECG) patterns could help in prompt detection of life-threatening arrhythmias such as atrioventricular block, ventricular tachycardia, and atrial fibrillation and be of great help to clinicians (1-4). Such systems will have to use algorithms to identify different waveform types in an ECG and recognize complex relationships between them over time. However, wide variability in wave morphology between patients and the presence of noise are major challenges (3).

Computerized recognition of ECG abnormalities is routinely used by cardiologists classifying long-term ECG records. Feature extraction methods include wave shape functions (5,6), Hermite functions (7), wavelet-based features (8-10), and statistical features (11). Methodologies to classify these extracted features include support vector machines (12), k-th nearest-neighbor rules (13,14), decision trees (12), artificial neural networks (10,15-21), and linear discriminants (5). State of the art automated ECG recognition systems often rely on a pattern-matching framework that represents the ECG signal as a sequence of stochastic patterns. They require complex feature extraction methods and high sampling rates and are therefore time taking (1). For real-time implementation in the clinic at reasonable cost these systems must use a simple set of features and a lower sampling rate.

A limitation of several algorithms that are used for automatic classification of ECG is the inability to handle large intraclass variations. They are highly dependent on supervised training datasets and perform poorly when processing large numbers of new ECG records. In addition, the application of dimensionality reduction algorithm to extract complex features in the transform domain significantly improves the computational complexity of the whole process. Moreover, classifier algorithms do not perform when there are wide interpatient variations in ECG signals. Thus, inconsistent performance makes classifier algorithms unreliable in the clinical setting.

Deep learning is a new machine learning technique that is becoming the mainstream for pattern recognition (22,23). It has been successfully used for object recognition, image verification, classification, and speech recognition. Deep learning approaches have greatly improved the accuracy of recognition tools. They have been used to create a deep, multistage architecture for unsupervised learning and recognition systems. We drew on previous work in convolutional neural networks (CNNs) (3) to build a more accurate and robust approach for automated ECG diagnosis. In this paper we describe our algorithm-based system, which we call the Cardiovascular Disease Whole Process Management Platform.

Materials and methods

Data sets and reference standards

To develop the CNN, we constructed a data set from the ECG management system of the First Affiliated Hospital of Nanjing Medical University. A total of 277,807 12-lead static ECG recorded in the cardiac function rooms of the institute between August 1, 2018, and May 31, 2019, were included in the database. The ECGs lasted for 10–60 seconds, with most being in the range of 24 to 30 seconds. After cleaning, the ECGs were labeled according to clinical diagnosis by two experienced electrocardiologists. In rare cases, disagreements were settled by consultation with a senior cardiologist (a chief physician or an associate chief physician). The data set was randomly separated into training data set (n=259,789) and a testing data set (n=18,018). Each data set contained 18 classes of abnormal and sinus ECG signals (Table 1). Figure 1 shows the data processing flow.

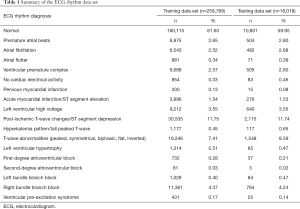

Table 1 Summary of the ECG rhythm data set
Full table

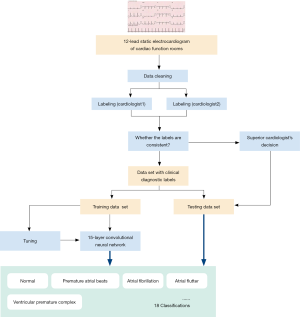

Figure 1 The data processing flow.

CNN architecture and training

Our deep learning system takes as input an ECG waveform between 10 and 60 seconds long and outputs a label prediction of one of the 18 rhythm classes, along with a probability distribution over the 18 classes. Figure 2 shows the CNN architecture that was used.

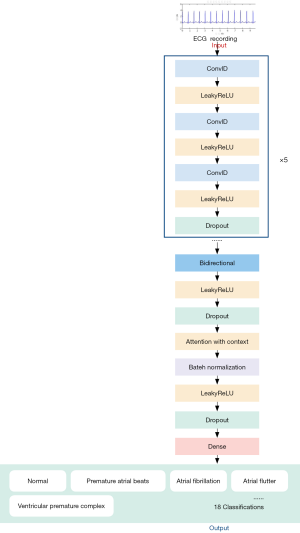

Figure 2 The architecture of the CNN. CNN, convolutional neural network; ECG, electrocardiogram.

Implementation and optimization

Python 3.5 on the Keras library (TensorFlow background) was used to implement the proposed deep CNN model, which was trained and evaluated using graphics processing unit (NVIDIA Tesla P100) computing in an Ubuntu 16.04 environment. The training for cardiovascular disease detection was fully supervised. It back-propagated the gradients from the fully-connected layer through to the convolutional layers. As a loss function, we minimized the binary cross-entropy to optimize the model parameters. The gradient descent with the Adam update rule was utilized.

Results

Performance evaluation

The diagnostic capability of the proposed system was evaluated in terms of accuracy, precision, and specificity. The basic definitions used were as follows:

Patient: positive for the disease;

Healthy: negative for the disease;

True positive (TP) = the number of cases where the patient was correctly defined;

False positive (FP) = the number of cases where the patient was incorrectly defined;

True negative (TN) = the number of cases where a healthy individual was correctly defined;

False negative (FN) = the number of cases where a healthy individual was incorrectly defined.

The definitions of accuracy (ACC), precision (P), specificity (S) and f1-score are as follows (Eq. [1]–Eq. [4]):

Experimental results

The model was tested on a random sample of 18,018 ECGs. Table 2 shows the accuracy, precision, specificity and f1-score of every classification. The labels used covers more than 90% of clinical diagnoses. The overall accuracy of the model was nearly 95%; the accuracy of the model for diagnosis of normal rhythm/atrial fibrillation was 99.15%. For atrial fibrillation, the most frequently identified disorder, the accuracy was 98.27%. And in all labels, the highest accuracy is up to 99.75%.

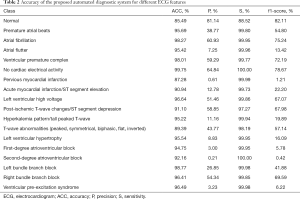

Table 2 Accuracy of the proposed automated diagnostic system for different ECG features
Full table

The cardiovascular disease whole process management platform

We established the Cardiovascular Disease Whole Process Management Platform shown in Figure 3. The system provides a labeling tool (Figure 4). After training the CNN model, the system also offers the result of evaluation (Figure 5).

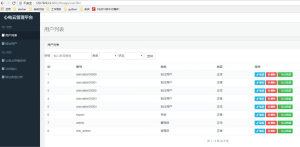

Figure 3 The interface of the cardiovascular disease whole process management platform.

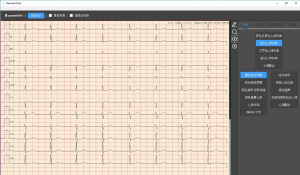

Figure 4 The interface of the labeling tool.

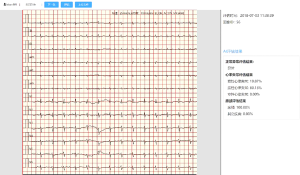

Figure 5 The interface of the evaluate result in the platform.

Discussion

In this paper we present a novel application of deep learning for classification of ECGs. Since existing deep learning networks do not have a suitable structure to handle the 12 channels of the ECG recording, we applied the structure of channel convolution.

As Table 3 shows, we achieved accuracy of 98.27% for recognition of 18-classes of heart rhythms. Our CNN network has achieved good performance under the condition of more classification. Different from other ECG analysis algorithms reported earlier, our system considers 18 classifications. A single ECG tracing might contain multiple main categories and subcategories of the label. The main categories included sinus rhythm, atrial fibrillation, atrial flutter, ventricular premature beat, atrial premature beat, low and flat T-wave, and so on. The main category of “sinus rhythm”, for example, could include subcategories such as “sinus arrhythmia” or “sinus tachycardia”.

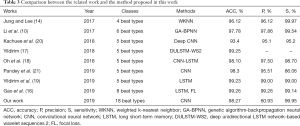

Table 3 Comparison between the related work and the method proposed in this work
Full table

Unequal lengths of signals and unbalanced data in ECG signals posed a problem. To solve the problem of unequal lengths of signals, we adopted the method of frame division. To address the issue of unbalanced distribution of abnormal data and normal data, a data amplification method was introduced to enhance the data.

Some of the published work is based on open datasets. We built our own datasets, and these data sets continue to grow. At present, because some individual labels have not enough data to adjust the parameters of the model, the individual training effect is not ideal. We are gradually accumulating data and learning.

Conclusions

With the development of optimization methods for processing of the large amounts of data being accumulated, the sensitivity and specificity of automated ECG diagnosis will improve. The AI-aided ECG diagnosis system that we developed appears to be sufficiently reliable for clinical use. It could help reduce misdiagnosis and missed diagnosis in the primary care setting and also save manpower costs for large general hospitals.

Future research should attempt to improve the sensitivity and specificity in the individual classifications by adjusting the different parameters. Machine learning could also be combined with other techniques such as computational modeling and simulation to explain the results of machine learning. That will make the clinical application of the proposed system more interpretable and more credible.

Acknowledgments

Funding: This work was supported by grants from the National key Research & Development plan of the Ministry of Science and Technology of the People’s Republic of China (grant no. 2018YFC1314900, 2018YFC1314901), the 2018 provincial industrial and information industry transformation and upgrading project [grant no. (2018)0419, (2017)79], and the 2016 projects of Nanjing Science Bureau (grant no. 201608003). Yun Liu is the guarantor of this paper.

Footnote

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/cdt.2020.03.03). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The protocol was approved by the Ethics Committee of Nanjing Medical University [2019(373)].

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
