Effects of myocardial viability and left ventricular remodeling on survival of patients with heart failure and reduced ejection fraction after coronary artery bypass grafting

Introduction

Heart failure (HF) is a major public health problem in the world. The incidence of HF in developed countries is approximately 1–2% (1). Based on different ejection fractions (EFs), HF is divided into HF with reduced EF (HFrEF) and HF with preserved EF (HFpEF). According to statistics, HF is diagnosed in 5.1 million adults in the United States (2), at least 50% of whom are diagnosed with HFrEF [left ventricular (LV) EF <40%] (3). The most common cause of HFrEF is ischemic heart disease, which accounts for approximately 60% of all cases (3). Compared with patients without HF, coronary heart disease (CHD) patients with HF have more clinical complications and higher incidences of bleeding and recurrent myocardial infarction; additionally, the treatments are inadequate, and the mortality is high (4). The prognosis of CHD patients with HFrEF is also significantly worse than that of non-CHD patients with HFrEF (5,6). Therefore, how to effectively treat these patients is a topic worthy of exploring.

Many retrospective studies have shown that viable myocardium in the LV is an important predictor of whether patients with ischemic HF can benefit from coronary artery bypass grafting (CABG). On the other hand, the subgroup analysis in the surgical treatment for ischemic heart failure (STICH) trial suggested that viable myocardium had nothing to do with surgical benefits. In addition, many researchers believed that except for viable myocardium, the severity of LV remodeling is also an important indicator for assessing the efficacy of CABG. Therefore, the role of myocardial viability and LV remodeling and the interactions between them in CABG are not clear.

This study analyzed perioperative mortality, complications, and prognosis after CABG in patients with different LV size and myocardial viability, which aimed to explore the role of LV remodeling and myocardial viability and elucidate the clinical features of patients with HFrEF after CABG.

Methods

Patient enrollment

CHD patients with symptoms and signs of HF and an LVEF <40% (determined by transthoracic ultrasonography) who were admitted to Ward 11 of the Department of Cardiac Surgery, Beijing Anzhen Hospital, from January 2014 to February 2018 were enrolled consecutively in this study. All patients had signed informed consent after admission.The exclusion criteria were patients with cardiogenic shock; patients with acute myocardial infarction within 3 months; and patients who need concurrent aortic valve surgery. According to the viable myocardium ratio, the patients were divided into two groups: (I) high myocardial viability (HMV): a ratio of viable to total myocardium in the LV ≥10%; and (II) low myocardial viability (LMV): a ratio of viable to total myocardium in the LV <10%. In addition, the patients were further divided into four subgroups according to the mean LV end-systolic volume index (LVESVI): (I) HMV with small LV (LVESVI <92 mL/m²), (II) HMV with large LV (LVESVI ≥92 mL/m²), (III) LMV with small LV (LVESVI <92 mL/m²), and (IV) LMV with large LV (LVESVI ≥92 mL/m²). All patients used the following agents for more than a year: nitrates, aspirin, betaloc, statins and angiotensin-converting enzyme inhibitors (ACEIs) or angiotensin II receptor blockers (ARBs).

Determination of viable myocardium

All 118 enrolled patients underwent myocardial perfusion imaging at rest and myocardial metabolism tomography via positron emission tomography (PET) at the Department of Nuclear Medicine of Beijing Anzhen Hospital. The infarcted myocardium region was defined as the region in which the perfusion images were compatible with the metabolic data, while the viable myocardium region was defined as the region in which the perfusion images were not compatible with the metabolic data. The ratio of viable myocardium was calculated based on the number of viable segments. Based on the previous research (7,8), a ratio of viable to total myocardium in the LV <10% was defined as LMV, and a ratio ≥10% was defined as HMV.

Determination of LVEF and LVESV

Two sonographers performed transthoracic echocardiography to determine the LVEF and LVESV before surgery. Patients with an EF <40% that was confirmed by the two sonographers were enrolled. If there was disagreement between the two sonographers regarding an EF, a third sonographer repeated the examination and confirmed the results. LVESV was the average of the two measurements. The LVESVI was obtained by normalizing the LVESV to the body surface area of the patient.

Follow-up

Follow-up was performed at 3, 6 and 12 months after surgery and then once a year. The clinical endpoints were obtained by telephone follow-up, door-to-door follow-up or clinical follow-up. The main examinations included echocardiography, electrocardiography, coronary computed tomography angiography (CTA), PET myocardial perfusion imaging at rest, PET myocardial metabolic tomography, routine blood tests, liver and kidney function tests and cardiac function tests. The primary endpoints were all-cause death and major adverse cardiac events (MACEs) which including revascularization, myocardial infarction, stroke, HF, death from cardiovascular cause.

Statistical analysis

This is a single center, prospective, observational study. SPSS 25.0 software was used for statistical analyses. The baseline characteristics of the groups were compared using Student’s t-test for continuous variables and the χ² statistic for categorical variables. Continuous variables were reported as mean with standard deviation and categorical variables were reported as percentage. Survival analysis was analyzed using Kaplan-Meier method. P<0.05 was considered statistically significant.

Results

All 118 patients underwent myocardial perfusion imaging at rest and myocardial metabolism tomography via PET. The mean LVESVI was 92 mL/m². A total of 78 patients with a ratio of viable to total myocardium in the LV ≥10% were included in the HMV group, and 40 patients with a ratio <10% were included in the LMV group. There were no significant differences in preoperative LVEF, LVESVI, and cardiac function between the high and LMV groups. In the HMV group, the proportion of patients with previous interventional therapy was higher than that in the LMV group, which may be the reason why more viable myocardium was preserved in these patients (Table 1). In patients with HMV, the severity of LV remodeling was not correlated with patient EF and cardiac function (Table 2). In contrast, in patients with LMV, the lower the EF and the worse the cardiac function were, the more severe the LV remodeling. In addition, in the LMV group, patients with severe LV remodeling had a higher rate of previous myocardial infarction than did patients with mild LV remodeling (Table 3).

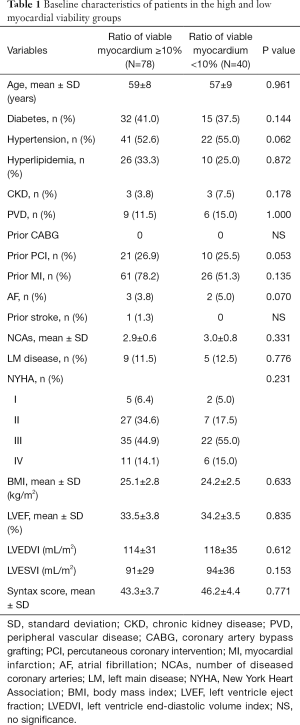

Table 1 Baseline characteristics of patients in the high and low myocardial viability groups
Full table

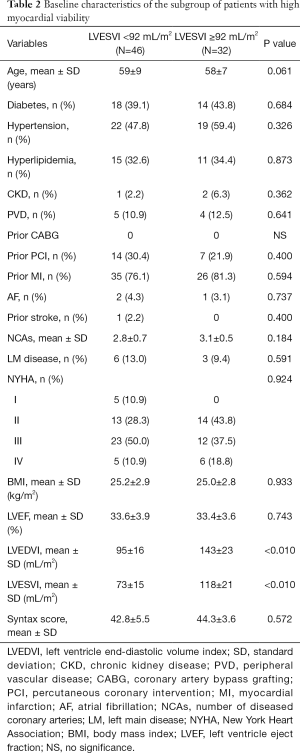

Table 2 Baseline characteristics of the subgroup of patients with high myocardial viability
Full table

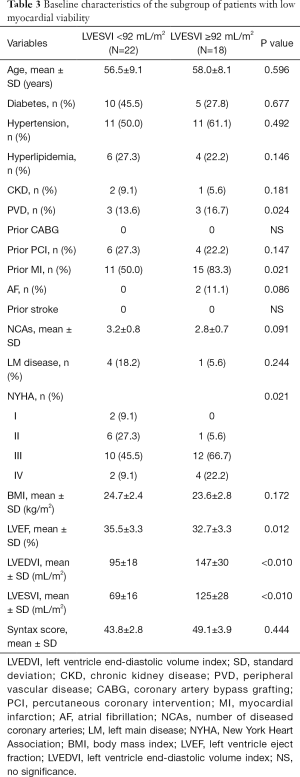

Table 3 Baseline characteristics of the subgroup of patients with low myocardial viability
Full table

Perioperative mortality was 6.8% for the 118 patients. Perioperative mortality was significantly higher in the LMV group than in the HMV group (12.5% vs. 3.8%, P=0.034), and the proportion of patients with mechanical assistance, such as extracorporeal membrane oxygenation (ECMO) and intra-aortic balloon pump (IABP), was higher in the former group than in the latter group during the perioperative period (IABP: 75.0% vs. 47.4%, P=0.004; ECMO: 22.5% vs. 1.3%, P<0.010). Patients with LMV were more susceptible to atrial fibrillation (AF) after surgery than were with those with HMV (35.0% vs. 14.1%, P=0.011) (Table 4). Subgroup analysis was further performed according to a mean LVESVI of 92 mL/m². In the HMV group, the incidence of postoperative AF and the rate of IABP use were significantly higher in the patients with severe LV remodeling than in those with mild LV remodeling (AF: 25.0% vs. 6.5%, P=0.024; IABP: 62.5% vs. 36.9%, P=0.031). The mortality was higher in the former group but not significantly different between the groups (6.3% vs. 2.2%, P=0.561) (Table 5). In the LMV group, the rate of ECMO use and the incidence of postoperative AF in patients with severe LV remodeling were higher than those in patients with mild LV remodeling (ECMO use: 38.9% vs. 9.1%, P=0.043; AF incidence: 61.1% vs. 13.6%, P=0.031). Perioperative mortality reached 22.2% in the LMV group (Table 6). Thus, patients with LMV had the highest risk of surgery.

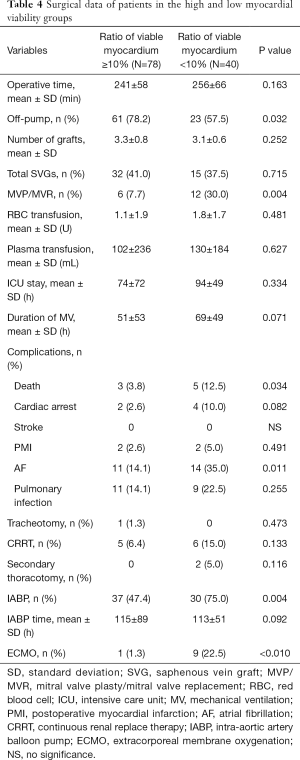

Table 4 Surgical data of patients in the high and low myocardial viability groups
Full table

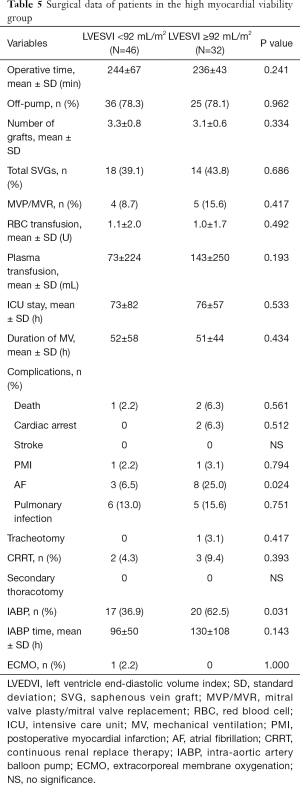

Table 5 Surgical data of patients in the high myocardial viability group
Full table

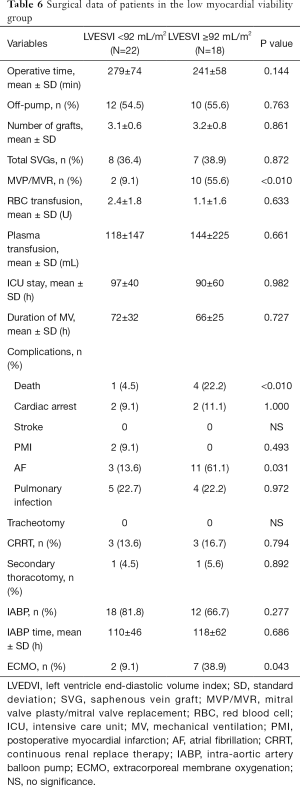

Table 6 Surgical data of patients in the low myocardial viability group
Full table

Follow-up was performed for 75 patients in the HMV group and 35 patients in the LMV group with a mean period of 30±12 months. The 12-, 24-, 36-month MACE-free survival rate of patients with HMV was significantly higher than that of patients with LMV (HMV vs. LMV: 96.9% vs. 88.6%, 93.4% vs. 85.5%, 79.4% vs. 68.2%, P=0.004, Figure 1A). There was no difference in MACE-free survival between patients with different degrees of LV remodeling within each group (Figure 1B,C). Patients with a high ratio of viable myocardium had a better prognosis, and the severity of LV remodeling did not affect the long-term prognosis of patients. The details of MACEs are shown in Tables 7,8.

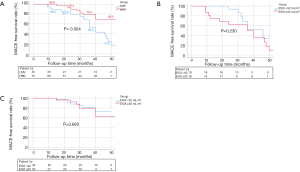

Figure 1 Kaplan-Meier analysis of MACE-free survival in patients with different myocardial viability and ventricle remodeling. (A) Survival of patients in the high and low myocardial viability groups. The 12-, 24-, 36-month MACE-free survival rate of patients with HMV was significantly higher than that of patients with LMV (HMV vs. LMV: 96.9% vs. 88.6%, 93.4% vs. 85.5%, 79.4% vs. 68.2%, P=0.004). (B) Survival of patients in the low myocardial viability group, there was no difference in MACE-free survival rate between patients with different degrees of left ventricular remodeling within each group. (C) Survival of patients in the high myocardial viability group, there was no difference in MACE-free survival rate between patients with different degrees of left ventricular remodeling within each group. LMV, low myocardial viability. HMV, high myocardial viability; MACE, major adverse cardiac event; ESVI, end-systolic volume index.

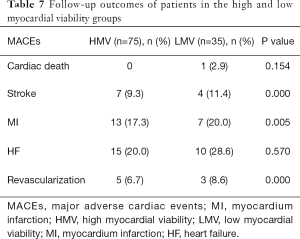

Table 7 Follow-up outcomes of patients in the high and low myocardial viability groups
Full table

Table 8 Follow-up outcomes of patients with different LVESVI
Full table

Discussion

The LVESVI is an important parameter for evaluating the severity of LV remodeling. The ratio of viable to total myocardium in the LV can accurately reflect the degree of myocardial infarction. Based on the LVESVI and myocardial viability, this study analyzed the perioperative risk and long-term survival of CHD patients with HFrEF who underwent CABG. This study suggests that patients with a ratio of viable myocardium ≥10% and mild LV remodeling have an acceptable operative mortality of 2.2%. However, patients with a ratio of viable myocardium <10% and a significantly enlarged LV have a high perioperative risk, 22.2%, indicating that surgical indications for these patients need to be fully evaluated. Myocardial viability is an important factor that affects the perioperative mortality and long-term survival of patients with ischemic HFrEF after CABG. The LVESVI is an indicator for perioperative mortality in patients with LMV but is not an indicator for long-term survival.

Beginning with the pioneers Isom and Baird (9,10), cardiac surgeons have made sustained efforts to reduce the surgery mortality of CHD patients with LV dysfunction. In the 1970s and 1980s, the mortality rates were 15% and 10%, respectively. Currently, the mortality rate is less than 5% for CHD patients with an EF between 10% and 30% who undergo CABG (10-16). For the patients enrolled in this study, the average LVEF was 33% (23–39%), and the overall mortality was 6.8% (8/118). The subgroup analysis showed that the operative mortality was 2.2% in patients with a ratio of viable myocardium ≥10% and low LVESVI. This result suggests that these patients are suitable for CABG. However, the operative mortality reached 22.2% in patients with a ratio of viable myocardium <10% and high LVESVI. Determining whether these patients are suitable for CABG requires a joint evaluation with cardiologists to develop an individualized treatment plan. In this current study, there was no significant difference in the LVESVI between the HMV group and the LMV group (91±29 vs. 94±36, P=0.153), but operative mortality, incidence of postoperative AF and percentage of perioperative mechanical assistance were lower in the former than in the latter (3.8% vs. 12.5%, P=0.034; 14.1% vs. 35.0% P=0.011; IABP: 75.0% vs. 47.4% P=0.004; ECMO: 22.5% vs. 1.3%, P<0.010). This suggests that myocardial viability is an important factor that affects operative mortality and complications and should be fully assessed before surgery. In addition, the LVESVI is positively associated with mortality in patients with similar myocardial viabilities and is another important factor that affects operative mortality and complications. Therefore, for CHD patients with HFrEF, a preoperative risk assessment should not only consider the viable myocardium ratio but also consider the severity of LV remodeling.

In terms of long-term prognosis, a series of previous studies suggested that improvement in cardiac function after CABG is common in patients with a certain myocardial viability and mild LV remodeling. In patients with severe LV remodeling, regardless of the degree of myocardial viability, postoperative cardiac function is not significantly improved. Yamaguchi et al. (17) observed 20 patients with an LVEF <30% who underwent CABG and found that the patients with an LVESVI <100 mL/m² had significantly improved postoperative cardiac function, while patients with an LVESVI ≥100 mL/m² did not have significant improvement compared to preoperative cardiac function. Similarly, Bax et al. (18) showed significant improvement in postoperative cardiac function in patients with a mean LVEF of 29%, certain myocardial viability {[¹⁸F]-fluorodeoxyglucose (¹⁸FDG) single photon emission computed tomography (SPECT)] and a small end-systolic volume (ESV). Schinkel et al. (19) used dobutamine stress echocardiography to measure myocardial viability. Their results were consistent with previous studies and showed the ESV was negatively correlated with LVEF. Mandegar et al. (20) performed CABG in 85 patients with an LVEF <35%. Preoperative myocardial viability was assessed by dobutamine stress echocardiography. The follow-up showed that patients with more than six viable myocardial segments had an improved postoperative EF, while patients with less than six viable myocardium segments and a high ESV had no improvement in postoperative EF. However, none of these studies analyzed the long-term survival of patients. Moreover, SPECT and dobutamine stress echocardiography are not the best methods for determining myocardial viability. In this study, myocardial viability of the patients was determined by PET, and the long-term event-free survival of patients was analyzed, addressing the shortcomings of the aforementioned studies. The mean follow-up period in this study was 30±12 months. The event-free survival rate in the HMV group was significantly higher than that in the LMV group. There was no correlation between the LVESVI and event-free survival in patients with similar myocardial viabilities. That suggests that myocardial viability is an important factor that affects the long-term survival of patients. The severity of LV remodeling is not related to long-term survival. Considering this study and previous studies, there seems to be no correlation between LV remodeling and postoperative LV function improvement or long-term survival. However, interactions between and among the three parameters need to be determined through further studies.

Limitation of the study

Due to the small sample size in this study, we used 10% as the viable myocardium ratio cut-off value to divide the patients into the low viability and high viability groups; however, two groups were not adequate. When more patients are enrolled in the study, another group, viable myocardium ratio between 10% to 20% will be added. This will further help in understanding the effects of the viable myocardium ratio on perioperative risk and long-term prognosis. Similarly, due to the small sample size in this study, the LVESVI cut-off value was the mean LVESVI, 92 mL/m². We concluded that LV remodeling does not affect the survival of patients. However, this conclusion may not be accurate. As the sample size increases, we will further scientifically classify the severity of LV remodeling (<60 mL/m², 60–90 mL/m², >90 mL/m²) to more rationally evaluate the impact of LV remodeling on perioperative risk and long-term survival.

Conclusions

The results of this study suggest that patients with a low viable myocardium ratio and significant LV enlargement have a high perioperative risk and that patients with a low viable myocardium ratio have a poor prognosis. Myocardial viability is an important factor that affects the perioperative mortality and long-term survival of post-CABG patients with ischemic HFrEF. LV remodeling increases perioperative mortality but has no effect on long-term survival.

Acknowledgments

Funding: This work was supported by the grant from Beijing Lab for Cardiovascular Precision Medicine, Beijing, China (2016-2020, Code: PXM2019_014226_000023), National Key R&D Program of China (Code: 2017YFC1308000) and Beijing Municipal Administration of Hospitals’ Ascent Plan (Code: DFL20180602).

Footnote

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/cdt.2020.01.12). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was approved by the Institutional Ethics Committee of Beijing Anzhen Hospital (No. 2016024).

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
