Intracoronary near-infrared spectroscopy—role and clinical applications

Introduction

Intracoronary near-infrared spectroscopy (NIRS) has been developed and validated for the detection of lipid-rich plaque (LRP), and is currently in clinical use with a multimodality catheter that combines NIRS with intravascular ultrasound (IVUS). This review describes the principles of NIRS, intracoronary NIRS image interpretation, and the clinical applications of NIRS both before and after percutaneous coronary intervention (PCI). An overview of the ability of NIRS to identify vulnerable patients and vulnerable plaques is also presented, and the limitations of NIRS and possible future directions are discussed.

Principles of NIRS

NIRS utilizes electromagnetic radiation with frequencies slightly lower than the visible spectrum to characterize the chemical composition of materials, including tissues. To do this, a light source emits near-infrared light towards a target. The proportion of diffusely reflected light returning to a detector is then analyzed as a function of wavelength (1). Based on the specific spectral signals produced in this process, the chemical composition of the target can be determined. Because different tissues have unique chemical compositions, NIRS can differentiate them based upon their specific spectral signatures.

Owing to its ability to differentiate tissue types, NIRS has many clinical applications in medicine, including an emerging role in the evaluation of coronary arteries. More specifically, intracoronary NIRS has been developed and extensively validated against the gold standard of histology to identify the presence of LRP within coronary arteries (2). The ability to identify LRP based on its spectral signature differentiates NIRS from other intracoronary imaging modalities, such as IVUS and optical coherence tomography (OCT), which largely provide plaque structural characterizations, and can only infer the presence of LRP based on signal attenuation. Signal attenuation in IVUS and OCT imaging is not specific to LRP alone, as a variety of factors can attenuate their signal, thereby reducing the predictive value of LRP detection by these imaging modalities (3,4).

NIRS catheter and image interpretation

Intracoronary NIRS is performed with an imaging catheter delivered to the distal portion of a target vessel over a standard coronary guidewire. At the tip of the catheter, near-infrared light is emitted in a diffuse, non-focused manner. During the imaging process, the light source is rapidly rotated while the catheter is automatically withdrawn through the vessel by motorized pullback, thereby capturing images over the full circumference and length of the imaged vessel. The variable wavelengths of emitted light are either absorbed into the tissues or scattered. Returning scattered spectral signals are detected by the catheter and transmitted to a computer housed in a bedside console. In this manner, approximately 30,000 measurements of spectral signals are acquired per 100 mm of scanned artery (5).

Software within the console analyzes the captured spectral data to determine the probability of LRP at each imaged location within the vessel. Based on these probabilities, the software produces a color-coded graphical representation of the chemical composition of interrogated tissue called a chemogram. The chemogram is essentially a map of the imaged vessel, with the X-axis representing axial position along the length of the artery, and the Y-axis representing circumferential position. The chemogram is comprised of pixels, with each pixel being assigned a color on a 128-color scale spanning from red to yellow based on the probability of LRP at that location. Pixels with a probability of LRP exceeding 0.6 appear yellow, whereas pixels corresponding to anatomic locations with a probability of LRP <0.6 appear red (Figure 1A) (6). In addition to the chemogram, the NIRS software produces a block chemogram comprised of 2 mm blocks spanning the axial length of the imaged vessel. Each 2-mm block corresponds to a 2 mm section of artery and is assigned one of four colors based on the 90^th percentile probability value of LRP of all pixels in the block. In this manner, the block chemogram provides an easy to read visualization of the probability of LRP within corresponding sections of artery by a color code of red (probability <0.57), orange (probability 0.57 to <0.84), tan (probability 0.84 to ≤0.98), and yellow (probability >0.98) (Figure 1B) (6).

Figure 1 Interpretation of the NIRS chemogram and block chemogram. An example of a NIRS chemogram (A) and block chemogram (B) are shown. The X-axis of the chemogram represents the spatial location along the long axis of the vessel. The Y-axis of the chemogram represents circumferential position. Red regions of the chemogram correspond to locations having a low probability of LRP. Yellow regions of the chemogram correspond to locations having a higher probability of LRP. In this example NIRS has detected a moderate size LRP in the mid-segment and a small LRP in the proximal segment of the vessel. LRP, lipid-rich plaque; NIRS, near-infrared spectroscopy.

In addition to providing the probability of LRP at each location within an imaged artery, intracoronary NIRS also provides a semi-quantitative estimate of the amount of lipid using a metric termed the lipid core burden index (LCBI) (Figure 2). The LCBI in any selected region of interest is defined as the number of pixels with a probability of lipid >0.6 divided by the total number of valid pixels, with the quotient multiplied by 1,000 (2). Thus, LCBI values range from 0 to 1,000. The NIRS software can also automatically identify the maximum LCBI in any 4-mm segment within a larger region of interest. This metric is termed the maximum LCBI in 4 mm (maxLCBI_{4 mm}) and provides a quantitative estimate of focal lipid core size.

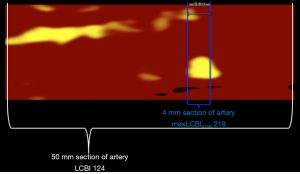

Figure 2 NIRS LCBI and maxLCBI_{4 mm}. Once NIRS imaging is performed, any region of interest on the chemogram can be selected by the operator and the software will automatically calculate the LCBI and maxLCBI_{4 mm} in the selected region. In the case above, the operator selected the 50-mm segment of artery between the white lines as the region of interest. The LCBI, which is calculated as the number of yellow pixels divided by all valid pixels in the region of interest multiplied by 1,000, was 124 in this case. Upon selecting the region of interest (white lines), the software automatically identifies the maxLCBI_{4 mm}, defined as the 4-mm segment within the region of interest having the greatest LCBI (blue lines). LCBI, lipid core burden index; maxLCBI_{4 mm}, maximum lipid core burden index in 4 mm; NIRS, near-infrared spectroscopy.

Pre-PCI NIRS: assessing lesion length and minimizing geographic miss

Incomplete lesion coverage at the time of stent implantation, known as longitudinal geographic miss, is associated with adverse outcomes after PCI (7). Pre-PCI NIRS imaging may complement IVUS or OCT imaging in reducing the likelihood of geographic miss, particularly in selecting the length of stent necessary to ensure adequate coverage of LRP at the margins of the target lesion. In prior NIRS studies, LRP has been shown to frequently extend beyond the angiographic margins of the target lesion (8,9). In a study by Hanson et al., NIRS detected LRP extending beyond angiographic borders in 52% of target lesions. The adverse consequences of leaving LRP uncovered at stent margins were recently suggested in a study by Ino et al., in which uncovered LRP at the stent margins, as detected by OCT, was associated with an increased risk of restenosis during follow up, with larger lipid cores being associated with greater risk (10). Additional studies are required to determine if lipid cores detected by NIRS in the stent margins are similarly associated with subsequent restenosis.

Pre-PCI NIRS: predicting periprocedural myocardial infarction risk

Intracoronary NIRS is capable of identifying lesions at an increased risk for causing periprocedural myocardial infarction during PCI. Utilizing data from the COLOR registry, Goldstein et al. reported target lesions with a maxLCBI_{4 mm} ≥500 were associated with periprocedural myocardial infarction in 50% of cases (11). In contrast, the rate of periprocedural myocardial infarction among target lesions with a maxLCBI_{4 mm} <500 was only 4.2%. The concept that target lesions having a large LRP detected by NIRS are associated with a greater risk of periprocedural myocardial infarction was confirmed in the CANARY trial (12). In the CANARY trial, the optimal threshold for lesions at risk of periprocedural myocardial infarction, as determined by receiver operating characteristic analysis, was a maxLCBI_{4 mm} value of 388.

Ideally, being able to predict periprocedural myocardial infarction would enable preventative maneuvers to decrease risk. However, the CANARY trial, which randomized patients with target lesions having maxLCBI_{4 mm} values ≥600 to undergo PCI with or without the use of a distal embolic protection device, showed that distal protection did not decrease the risk of periprocedural myocardial infarction (12).

Post-PCI NIRS: stent optimization

Considering the currently available NIRS device is a multimodality catheter providing simultaneous NIRS and IVUS imaging (Figure 3), and that the use of IVUS to guide PCI has been convincingly shown to improve clinical outcomes in multiple randomized controlled trials (13), the NIRS-IVUS device likely has a role in post-PCI imaging to optimize the stent result in a manner analogous to previous IVUS trials. Whereas post-PCI IVUS imaging can ensure adequate stent expansion and the absence of both dissection and large plaque burden at the stent edges, the role of post-PCI NIRS in stent optimization remains to be defined. NIRS imaging of target lesions before and after stenting have shown a decrease in lipid burden after PCI (14,15) (Figure 4). The mechanisms accounting for this decrease in lipid are likely multifactorial (11,12,14,15), and in some cases are due to liberation and down-stream embolization of lipid debris (16). Apart from the potential risk of no-reflow and periprocedural myocardial infarction (11,12), outcomes associated with the change in target lesion lipid burden or associated with the amount of retained lipid underlying the implanted stent have not yet been delineated. Interestingly, prior post-mortem observations have linked the implantation of stent struts into a lipid core with the occurrence of stent thrombosis (17,18). Future studies may perhaps delineate if residual lipid in stented segments, as detected by NIRS after stent implantation, is a risk factor for subsequent target lesion failure.

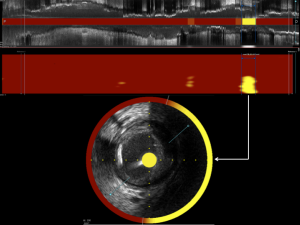

Figure 3 Multimodality imaging with the combined NIRS-IVUS catheter. Shown are combined NIRS-IVUS images obtained in a patient with coronary artery disease. The longitudinal IVUS image is shown at the top of the figure and reveals calcified plaque scattered throughout the vessel. The NIRS block chemogram is overlying the longitudinal IVUS image. The NIRS chemogram is shown beneath the longitudinal IVUS image and reveals a large LRP (yellow spot) in the distal vessel. Below the chemogram is a representative cross-sectional NIRS-IVUS image, the center of which corresponds to the block chemogram. The outer rim of the cross-sectional image corresponds to the chemogram, as shown by the white arrow. IVUS, intravascular ultrasound; LRP, lipid-rich plaque; NIRS, near-infrared spectroscopy.

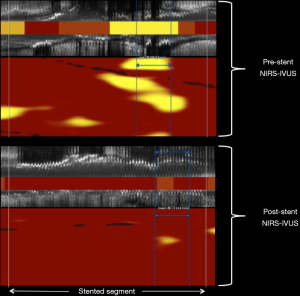

Figure 4 Reduction in NIRS lipid signal after stenting. Pre-stent NIRS-IVUS images (top) of the target lesion reveal a large LRP at the target site having a maxLCBI_{4 mm} of 560 (region between blue lines). Post-PCI NIRS-IVUS images (bottom) reveal a significant decrease in the target lesion lipid signal with a maxLCBI_{4 mm} of 72 (region between blue lines). IVUS, intravascular ultrasound; LRP, lipid-rich plaque; maxLCBI_{4 mm}, maximum lipid core burden index in 4 mm; NIRS, near-infrared spectroscopy; PCI, percutaneous coronary intervention.

NIRS for the detection of vulnerable patients

Several studies have now demonstrated NIRS imaging can be used to identify vulnerable patients who are at an increased risk of future patient-level cardiovascular events. In 2014, Oemrawsingh et al. were the first to show that NIRS findings in a non-target coronary artery were associated with an increased risk of major adverse cardiovascular events (MACE) (19). In this study, patients with an LCBI in a non-culprit vessel greater than the median value of 43 had a four-fold increased risk of MACE during 1 year of follow up. Among patients undergoing NIRS imaging in the target artery, it was subsequently demonstrated that a single non-culprit lesion having a maxLCBI_{4 mm} ≥400 was associated with an increased risk of major adverse cardiovascular and cerebrovascular events (20). This study also demonstrated a lipid burden-dependent relationship wherein larger LRPs detected by NIRS, evidenced by increasing maxLCBI_{4 mm} values, were seemingly associated with greater risk. An independent and continuous relationship between increasing maxLCBI_{4 mm} values and increasing risk of MACE was demonstrated during 4 years of follow up in a study by Schuurman et al. (21).

The ability of NIRS to identify vulnerable patients was ultimately confirmed in the prospective, multicenter LRP study, in which >1,200 patients underwent multivessel NIRS-IVUS imaging at baseline and were followed for 2 years for the development of subsequent MACE (22). In this study, the continuous relationship between increasing maxLCBI_{4 mm} values and increasing MACE risk was confirmed. In non-culprit segments, for every 100-unit increase in the maxLCBI_{4 mm} value, there was an increased risk of MACE with an associated hazard ratio (HR) of 1.21 (1.09–1.35, P=0.0004). This study also confirmed the maxLCBI_{4 mm} threshold value of 400 as a predictor of patient-level risk; specifically, a maxLCBI_{4 mm} >400 in non-culprit segments was associated with a HR of 2.18 (1.48–3.22, P<0.0001) for patient-level MACE.

The ability of NIRS to identify patients at increased risk of MACE based on the detection of non-culprit lipid cores is in line with similar findings using other imaging modalities capable of detecting intracoronary lipid, including angioscopy and OCT (23,24). Although the ability of NIRS technology to identify vulnerable patients has now been convincingly demonstrated, the translation of this knowledge into patient-specific preventative or interventional strategies has not yet been established. Future studies are needed to determine how best to guide therapy for patients deemed to be at high risk for patient-level events based on NIRS imaging.

NIRS for the detection of vulnerable plaques

Post-mortem studies have identified fibroatheromas that are lipid-rich and thin-capped to be cardinal precursor lesions of acute myocardial infarction (25,26). An initial cross-sectional study of patients undergoing NIRS imaging at the time of an ST-segment elevation myocardial infarction (STEMI) identified the majority of culprit lesions had a maxLCBI_{4 mm} >400 (27). This NIRS signature of culprit lesions has since been demonstrated across the spectrum of acute coronary events, including in culprit lesions responsible for STEMI, non-STEMI, unstable angina, and sudden cardiac death (27-32) (Figure 5). Considering the large lipid cores identified by NIRS in these culprit lesions were likely present well in advance of the coronary event, it has been hypothesized that the maxLCBI_{4 mm} metric might be able to identify non-culprit plaques at increased risk of site-specific future events.

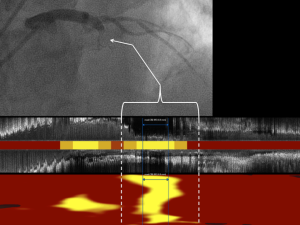

Figure 5 NIRS-IVUS imaging in a patient suffering an anterior STEMI. Invasive coronary angiography patient presenting with an acute anterior STEMI demonstrated complete occlusion of the proximal LAD (arrow). After reestablishing flow in the vessel with angioplasty, NIRS-IVUS imaging was performed. The culprit lesion is readily apparent on the longitudinal IVUS images (bracket and dashed white lines). NIRS revealed a large, nearly circumferential LRP at the culprit site having a maxLCBI_{4 mm} of 892. IVUS, intravascular ultrasound; LRP, lipid-rich plaque; maxLCBI_{4 mm}, maximum lipid core burden index in 4 mm; NIRS, near-infrared spectroscopy; STEMI, ST-segment elevation myocardial infarction; LAD, left anterior descending coronary artery.

In addition to evaluating the ability of NIRS to identify vulnerable patients, the LRP study also tested a vulnerable plaque hypothesis in which the association between non-culprit segment maxLCBI_{4 mm} at baseline and subsequent lesion-specific coronary events was investigated (22). The study was positive in this regard, as each 100-unit increase in maxLCBI_{4 mm} at baseline was associated with a HR of 1.45 (1.30–1.60, P<0.0001) for a site-specific event during 2 years of follow-up. Furthermore, non-culprit lesions having a maxLCBI_{4 mm} >400 at baseline were at a more than a four-fold risk of being associated with a coronary event over the next 24 months.

Limitations of NIRS imaging

A limitation of intracoronary NIRS imaging is that while its diffuse reflectance approach allows for notably less interference from proximal structures, such as stent struts, than other imaging modalities, the precise depth of the interrogated tissue is not known. This limitation was highlighted in a prior study using NIRS-IVUS imaging in an attempt to identify neoatherosclerosis (33). In this study, NIRS detected LRP within previously stented segments, but uncertainty existed whether the lipid cores identified were superficial to the stent, consistent with neoatherosclerosis, or deep to the stent, consistent with a lipid core in the wall of the vessel. The lack of structural imaging provided by NIRS represents another limitation and has been the impetus to combine NIRS imaging, which provides compositional information, with other imaging modalities that provide structural information.

Future directions

Based on the findings of the LRP study, the United States Food and Drug Administration (FDA) has now approved intracoronary NIRS imaging for the identification of both vulnerable patients and vulnerable plaques. Whereas the findings of the LRP study support the ability of NIRS imaging to identify vulnerable plaques, it has not yet been determined whether the predictive value associated with the NIRS findings is sufficiently high to warrant a change in local or systemic therapy for event prevention. These uncertainties are currently the focus of ongoing and future studies.

As stated above, NIRS does not provide structural imaging and therefore has not yet been used in clinical settings to assess the fibrous cap thickness overlying LRP. There are ongoing efforts to develop the ability of NIRS to evaluate fibrous cap thickness based on the collagen content of the fibrous cap and its respective spectral signal (34). Although NIRS is currently combined with IVUS, IVUS does not have sufficient special resolution to determine fibrous cap thickness. A combined OCT-NIRS catheter is in development (35) and since OCT has a spatial resolution capable of measuring fibrous cap thickness, the combined OCT-NIRS catheter will likely be capable of differentiating LRP detected by NIRS based on the fibrous cap thickness measured by OCT.

Conclusions

Intracoronary NIRS imaging has been developed and validated to detect LRP in the coronary arteries. The role of NIRS in optimizing PCI procedures continues to be studied. LRP detected by NIRS has been shown to be associated with both patient-level and site-specific future coronary events. NIRS is the first and only intracoronary imaging modality approved by the FDA for the detection of vulnerable patients and vulnerable plaques. The utility of intracoronary NIRS imaging in the clinical setting is likely to expand as ongoing and future research endeavors with NIRS are completed.
