Cardiac catheterization in pulmonary hypertension: doing it right, with a catheter on the left

Introduction

Elevated mean pulmonary artery pressure (mPAP) is the principal hemodynamic criterion for pulmonary hypertension (PH) (1-4)—a condition that is associated with increased clinical risk across a wide spectrum of diseases (4-7). Since increased mPAP may occur from a diverse number of risk factors and pathways (1,4,5,8), comprehensive clinical phenotyping with accurate cardiopulmonary hemodynamic assessment by cardiac catheterization is needed. By doing so, cardiac catheterization is important for classifying patients correctly to avoid misdiagnosis, delayed diagnosis, or the administration of inappropriate therapy (9). Integrating the hemodynamic and clinical profiles of patients at point-of-care is often challenging (10), however, and one common dilemma is establishing the contribution of left heart disease (LHD) to PH (11). Catheterizing the right heart and pulmonary arterial circulation is essential to allow for accurate diagnosis of PH, including PH-LHD (Group 2 PH), and for follow-up assessments.

Cardiopulmonary hemodynamic assessment in pulmonary hypertension

While echocardiography is a valuable screening modality for PH, Doppler estimates of PAP are inaccurate in many patients, and cannot be used to quantify right atrial (RA), pulmonary venous, left atrial (LA) or left ventricular (LV) pressures reliably (1,8). However, in addition to right ventricular end-diastolic pressure (RVEDP), left ventricular end-diastolic pressure (LVEDP) is necessary to classify and prognosticate patients appropriately, while measurements of PV and LA pressure are reserved for selected patients with congenital/structural cardiovascular diseases. In addition to directly measuring PAP, vital information from right heart catheterization includes pulmonary blood flow and end-expiratory pulmonary artery wedge pressure (PAWP) as a commonly used surrogate of LVEDP. From these data, the mean end-diastolic transpulmonary pressure gradient (TPG) and pulmonary vascular resistance (PVR) can be calculated (Box 1). Both diastolic TPG (syn. DPG, diastolic pressure gradient) and PVR (indexed to body surface area in children) are used to assign patients into one of three cardiopulmonary hemodynamic subtypes: pre-capillary PH, isolated-postcapillary (Ipc-PH), or combined pre- and post-capillary PH (Cpc-PH) (Box 1) (9,14).

Box 1 Definitions
Full table

The likelihood that PH may be due to LHD in a particular patient hinges, in part, on the hemodynamic assessment and classification. For example, isolated pre-capillary PH is incompatible with PH-LHD as the cause, but rather a manifestation of pulmonary arterial hypertension (PAH), chronic obstructive pulmonary disease (COPD), thromboembolic disease, or other causes. However, treatment options differ widely by clinical PH subtype; therefore, inaccurate cardiopulmonary hemodynamic assessment has important ramifications on patient outcome. This includes the missed opportunity to (I) improve quality of life, (II) decrease hospitalization, and (III) increase lifespan in PAH, for example, and the introduction of unnecessary risk by prescribing PAH-specific pharmacotherapies to patients for whom an indication is lacking (15).

Pathophysiology of PH-LHD

The etiology of PH-LHD involves many disorders encountered commonly in adult clinical practice (1), as well as conditions common to pediatric populations (8). This includes (I) heart failure with preserved LV ejection fraction (HFpEF) (16-18) that is epidemic in the elderly, (II) HF with reduced LVEF (HFrEF), and (III) anatomical left-sided obstruction, particularly in children and young adults with congenital heart disease (CHD) (e.g., valvar aortic stenosis, coarctation of the aorta, obstructive hypertrophic cardiomyopathy, and others) (1,4,8,19). Among patients with PH-LHD, the Cpc-PH subgroup has emerged as a distinct clinical phenotype, which is defined by a diastolic TPG ≥7 mmHg and/or PVR >3 WU (>3 WU·m² body surface area in children) with PAWP or LVEDP ≥15 mmHg (1).

LV dysfunction is not only a cause of PH-LHD, but is also an under-recognized complication of advanced PH, including PAH (8,20-22). Severe (suprasystemic) right ventricular (RV) hypertension promotes a septal leftward shift and ventricular septal interdependence (20). Although early PH expert consensus guidelines allowed for direct LV hemodynamic assessment on a case-by-case basis, specific recommendations remain lacking. Current debate in the field seems to focus mainly on the need for cardiac catheterization in the assessment of PH at clinical follow-up (23,24).

Challenges to interpreting cardiopulmonary hemodynamics in PH-LHD

Determining the hemodynamic PH classification can be challenging in practice. Elevated PAWP may not be evident in PH-LHD patients treated with diuretics or may be observed only during physical activity (25), as just two common but complex example scenarios. Furthermore, valvar or subvalvar aortic stenosis (LVOTO), (residual) coarctation of the aorta, and/or LA hypertension due to an intracardiac shunt are important considerations since management of PH-LHD. Treatment in these scenarios is vastly different than for other forms of PH-LHD and emphasizes relieving the left-sided obstruction/regurgitation by surgery or catheter-based intervention. Notwithstanding these special circumstances, two common practice patterns hamper the hemodynamic data assessment and interpretation for patients at-risk for PH-LHD: non-standardized timing of cardiac catheterization and the method for measuring/estimating LVEDP.

Timing of cardiac catheterization: opportunity for standardizing the approach to PH-LHD diagnosis

Guidelines on the timing of right heart catheterization in patients with risk factors for PH-LHD are lacking, and practice patterns vary by geography, experience of provider, and patient population (7,26). Of note, early diuretic administration is common in incident LHD patients, and may decrease PAWP level to a value that could imply “isolated pre-capillary PH”. A possible alteration of PAWP bears on both patient classification and prognosis since major differences in outcome are reported between patients with similar mPAP and PVR stratified by normal vs. elevated PAWP (13). Yet, in LHD common indications for cardiac catheterization often involve extreme scenarios: cardiogenic shock and end-stage heart failure or, conversely, confirming normal PAWP in stable patients with equivocal physical examination and biochemical data on volume status.

We propose that an initial right heart catheterization should ideally be performed in patients suspected of PH-LHD while in the symptomatic state. If diuresis is required first, then confrontational fluid challenge or exercise-cardiac catheterization vs. invasive cardiopulmonary exercise test may be indicated (8,9). If these maneuvers are not possible, then the effect of diuresis on interpreting hemodynamics must be considered, including the possibility that elevated PAWP was present prior to treatment. On follow-up assessment, cardiac catheterization in adult PH-LHD patients should be reserved to determine if persistent dyspnea is explained by elevated PAWP despite stable body weight, medication adherence, and low sodium/cardiac diet. In children and adults with congenital/structural heart disease (e.g., cardiovascular shunts, small left-sided structures), comprehensive hemodynamic assessment requires right and left heart catheterization, and acute vasoreactivity testing in those with pre-capillary PH (1,4,8,12). Diagnostic cardiac catheterization is usually postponed in very small infants or in sick patients until they are hemodynamically stabilized (e.g., via balloon dilation for severe valvular aortic stenosis; intensive care in myocarditis or extreme prematurity).

Targeted role for left heart catheterization in PH-LHD diagnosis

In our view, the diagnostic accuracy of PH-LHD will increase with direct measurement of LVEDP. We propose that left heart catheterization, defined by LV intracardiac pressure measurement and—if indicated—coronary angiography, should become an integrative part of the initial PH evaluation, as well as the follow-up assessment in selected patients (Figure 1). In addition, aortic pressure measurements (ascending aorta, descending thoracic aorta) can easily be conducted to determine the systolic gradient in LVOT obstruction, including supra- and subvalvular aortic stenosis, or coarctation of the aorta as a cause for LV pressure load and/or systemic arterial hypertension. Moreover, simultaneous aortic pressure measurements allow for more accurate determination of mPAP/mSAP ratio, and invasive monitoring of systemic arterial perfusion.

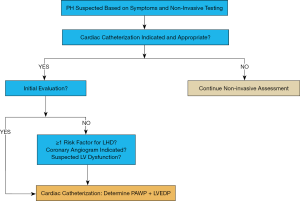

Figure 1 Proposed algorithm for incorporating left heart catheterization into the diagnostic approach to pulmonary hypertension. LHD, left heart disease; LV, left ventricle; PAWP, pulmonary artery wedge pressure; LVEDP, left ventricular end-diastolic pressure.

Our rationale is based on several points. First, inaccurate PAWP results are common due to ‘overwedging’ of the catheter, large “V waves” (often in the setting of mitral valvular regurgitation or impaired LV compliance) or lack of PAWP readings in end-expiration, among other technical reasons and conditions (e.g., pulmonary veno-occlusive disease, chronic thromboembolic PH) (9,27).

Second, simultaneous PAWP and LVEDP measurements minimize technical errors. Even when cardiac catheterization is performed conscientiously (including re-zeroing, re-wedging), we frequently encounter PH patients with a significant discrepancy between PAWP and LVEDP (>5 mmHg) when measured simultaneously. This discrepancy (PAWP > LVEDP) is often evident in patients with parenchymal/interstitial lung disease, and may also occur in pulmonary vein disease or mitral valve stenosis. On the other hand, under conditions in which the a-wave is attenuated or absent, such as atrial fibrillation, the LVEDP may underestimate PAWP. Indeed, unrecognized LV diastolic dysfunction, mitral stenosis or pulmonary vein disease may explain why some PH patients do not tolerate pulmonary vasodilators that are associated with substantial increases in pulmonary blood flow.

Third, there is limited consensus on ideal PAWP recording in patients with respiratory undulation, and right heart catheterization-only does not discriminate pulmonary venous from LA hypertension, with or without increased LVEDP. While PAWP measurements reflect luminal pressure in the larger pulmonary veins, there is increasing evidence in support of pulmonary venule involvement in both PAH and PH-LHD.

Fourth, cardiopulmonary hemodynamics and physiology differ substantially between patients whose PAH is either idiopathic or due to CHD. In the latter group, for example, a RV decompressing shunt (patent ductus arteriosus, ventricular septal defect) alleviates septal shifting and increases cardiac output, and consequently is associated with favourable outcome (8,28). In these scenarios, left heart catheterization, with simultaneous PAWP (or LAP) and LVEDP measurements, provides insightful information on the postcapillary, pulmonary venous - left heart hemodynamics.

Finally, left heart catheterization permits diagnostic coronary angiography or hemodynamic assessment of valvular disease, which, in turn, has important potential implications on clinical care for patients with PH and mitral/aortic valve disease, or coronary artery stenosis which can manifest as effort related dyspnea (1,9).

Evidence favouring LVEDP assessment in patients at-risk for PH-LHD

The extent to which PAWP and LVEDP are discordant in referral populations has been published widely. In one single-center recent study focusing on 2,270 patients undergoing combined right and left heart catheterization, only a moderate correlation was observed between PAWP and LVEDP (r=0.6) (29). Numerous clinical variables associated commonly with PH-LHD limited the accuracy of PAWP relative to LVEDP, such as increased age and LA diameter (29). A prospective study of 61 patients with suspected PH recorded PAWP and LVEDP subsequently during combined right and left heart catheterization (27). The authors found that the common practice of using PAWP-digital (mean monitor PAWP; PAWP-digital 8.0 mmHg) instead of PAWP in end expiration (PAWP-end Exp; 13.0 mmHg) results in a significant underestimation of LVEDP-end expiration (PAWP-digital 8.0 mmHg vs. LVEDP-end Exp 12.4 mmHg; P<0.05) (27). This discordance between PAWP-digital and LVEDP misclassified ~30% of these patients with PH-LHD as to have PAH (27). When PAWP and LVEDP are recorded simultaneously, a significant discrepancy between PAWP and LVEDP should prompt adjustments (re-zeroing, -positioning, -wedging, and contralateral PAWP measurements). If the discrepancy persists, searches for the cause are indicated (selective pulmonary vein angiography, pulmonary artery wedge angiography, simultaneous LA and LVEDP recordings, chest computed tomography, etc.). In patients with chronic thromboembolic PH, there is no way of knowing if a thrombus is present distal to the wedged PA catheter.

Data from population studies in adults suggest that the complication rate associated with left heart catheterization (including coronary angiography) is low in adults (~0.7%) (30). However, the risks and benefits of left heart catheterization must be individualized to each patient and especially pediatric procedures should be performed in experienced PH centers. It should be noted that the addition of left to right heart catheterization does not fully characterize cardiopulmonary hemodynamics, since LA or pulmonary venule pressure are not measured directly (unless there is an interatrial communication). Nevertheless, in our view, left heart catheterization is a valuable but underutilized tool for the initial evaluation of many PH patients (Figure 1), particularly those with HFpEF (or other conditions that predispose to Ipc-PH), Cpc-PH, and/or structural heart disease/CHD; left heart catheterization should also be considered in follow-up assessments in selected patients, for example, those with previously documented elevated left-sided filling pressures (LVEDP). With respect to clinical follow-up of PH patients, we align with the view that is ‘pro-cardiac catheterization’ [right heart + right and left pulmonary arteries (23), or combined right/left heart catheterization] as fundamental to PH diagnosis, irrespective of PH etiology, although this issue has been under a current debate (23,24).

Further clinical data are needed that integrate cardiac catheterization results with non-invasive diagnostic modalities, such as echocardiography, cardiac MRI with TWIST angiography, or new circulating biomarkers, to phenotype and risk stratify patients early in the natural course of PH (31). In this way, the ideal timing and frequency of cardiac catheterization in PH may become clearer.

Conclusions

In summary, PH-LHD (group 2 PH) is a complex cardiopulmonary hemodynamic condition that is not clarified solely by LV structure or function. Determining that elevated pulmonary artery pressure and increased left heart pressure is present requires catheterization of the right heart and bilateral pulmonary arteries. Cardiac catheterization should be performed initially in symptomatic PH patients stable enough to undergo the procedure. Additionally, left heart catheterization, including direct measurement of LVEDP simultaneously with PAWP, offers a diagnostic advantage to PAWP alone for identifying patients with either pulmonary venous hypertension, significant lung disease, or mitral stenosis. Coronary angiography may be indicated in select cases when PH is confirmed. Overall, future consensus statements are needed that consider strengthening the indication for left heart catheterization in the diagnostic evaluation of PH patients by clarifying specific scenarios for which this approach is warranted.
