A rare manifestation of extrapulmonary tuberculosis: left ventricular cardiac tuberculoma in an HIV infected male “case report”

Introduction

Pericarditis is a very rare manifestation of extrapulmonary tuberculosis (TB) that occurs in approximately 1% to 2% of patients with pulmonary TB (1). In developing countries with a high prevalence of human immunodeficiency virus (HIV), there has been a dramatic increase in all forms of extrapulmonary TB particularly tuberculous pericarditis (1). Myocardial tuberculoma occurrence is extremely rare and only very few cases have been reported (2). Due to rarity of the disease and scarcity of informative studies, the optimal diagnostic workup is not common knowledge, and the appropriate management has not been well defined (3). Here we present a case to highlight the diagnostic work up and management of cardiac tuberculoma in addition to pericardial TB. We present the following article in accordance with the CARE reporting checklist (available at http://dx.doi.org/10.21037/cdt-20-446).

Case presentation

A 37-year-old, opium addict, male presented to emergency department with complaint of progressive dyspnoea. His dyspnoea was at functional class (FC) II and had increased to FC IV over the last 20 days. He also complained of night sweets, chills and a 10 kg weight loss over the last month. Past medical history was remarkable for HIV and hepatitis C virus (HCV) infection. Upon physical examination lower extremity edema and increased jugular venous pressure (JVP) were noticed. He was started on anti-retroviral therapy including tenofovir, emtricitabine and efavirance about 2 weeks before his symptoms commence. The patient was admitted and primary investigations including chest computed tomography (CT) scan revealed bilateral pleural effusion, miliary pattern in both lungs and pericardial thickening including pericardial effusion (Figure 1). Preliminary lab data were as follows; white blood cell (WBC): 2,500 with segment of 84.2% and lymphocytes of 7.6% (CD4 count was 64), hemoglobin 8.8 mg/dL and platelets 104,000/µL. Based on imaging studies a preliminary diagnosis of TB was proposed and standard anti-TB medication and 50 mg prednisolone daily was started. To further elucidate the cause of pericardial effusion and thickening transthoracic echocardiography (TTE) was performed which showed significant thickening of pericardium [24 mm posterior to left ventricular (LV)] with mild pericardial effusion [6 mm anterior to right ventricular (RV)] with constrictive physiology (Figure 2). Two weeks after treatment, once more we performed TTE that revealed significant thickening of intra-pericardial space (21 mm posterolateral to LV) with constrictive physiology [40% inspiratory variation in mitral valve (MV) inflow with septal bounce and E: 17 cm/sec in septal wall comparison with 8 cm/sec in lateral wall compatible with annulus reversus]. Also, a moderate size (6×8 mm) pedunculated mobile mass at LV apex suggestive for LV thrombus butar are diagnosis granuloma (tuberculoma) was considered due to history of TB (Figure 2). The patient anti-TB treatment was continued and due to inadequate response to therapy surgery was considered. Subsequently the patient underwent sternotomy which revealed adherence of pericardium into epicardium and myocardium and caseafied changes throughout the heart particularly at the left side. Accordingly, subtotal pericardiotomy was performed and histopathological examination revealed granulomatous inflammation including epithelioid cell granuloma, multinucleated giant cells and small necrotic areas with no signs of malignancy which later confirmed caseous granuloma (Figure 3).

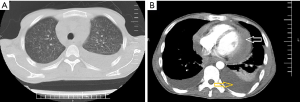

Figure 1 Chest CT scan. (A) Axial lung window showed bilateral diffuse micro-nodular opacities suggestive of miliary TB; (B) axial mediastinal window showed bilateral pleural effusion (yellow arrow) associated with pericardial effusion (white arrow). CT, computed tomography; TB, tuberculosis.

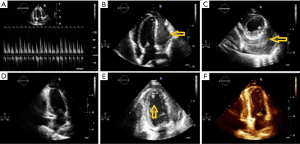

Figure 2 TTE images of the patient before, in the middle and after treatment. (A) (Inspiratory view), (B) (four chamber view) and (C) (two chamber view) show the pericardial thickness (yellow arrow); (D) shows four chamber view before cardiac tuberculoma appears; (E) displays the tuberculoma at the apex of LV (yellow arrow) and (F) shows disappearance of the tuberculoma after treatment. TTE, transthoracic echocardiography; LV, left ventricular.

Figure 3 Aggregation of lymphohistiocytes forming caseating granulomatose inflammation. (A) Caseous necrosis surrounded by epithelioid histiocytes (H&E, ×40); (B) higher view shows large area of caseous necrosis next to aggregates of epithelioid histiocytes, intermingled with scattered lymphocytes (H&E, ×100).

The anti-TB treatment was continued. Upon follow ups with serial echocardiography the tuberculoma was resolved and pericardial thickening reduced in size but was still persistent.

All procedures performed in studies involving human participants were in accordance with the ethical standards of the institutional and/or national research committee(s) and with the Helsinki Declaration (as revised in 2013). Written informed consent was obtained from the patient for publication of this study and any accompanying images.

Discussion

Cardiac TB is a rare disease and it usually represents as tuberculous pericarditis which can result in constrictive pericarditis (4). Involvement of other parts of the heart is unusual and only very few cases have reported involvement of myocardium and endocardium (4). On the basis of histopathological appearance myocardial TB occurs as three different forms including miliary form, nodular form and tuberculoma (5). Tuberculoma, a tumor-like manifestation of the disease, was first reported by Morgagni in 1761 (5). Single or multiple cardiac tuberculomas are extremely rare and most commonly are observed in the right heart chambers, especially in right atrium wall (6). Tuberculomas are often well circumscribed and sharply demarcated from the surrounding tissues (6). They can occur as the only manifestation of active TB or can be associated with miliary TB (5).

To our knowledge, this is the first report of a cardiac tuberculoma representing as a large size pedunculated mobile mass at LV apex. This case showed an unusual cardiac complication of TB not only causing pericardial thickening as well as pericardial effusion but also involving the LV by means of a large size cardiac tuberculoma. In our case 2 weeks before the beginning of his symptoms he was started on antiretroviral therapy, this can suggest the possibility of hypothesis that the exacerbations in symptoms and signs, laboratory and radiographic manifestations in this patient occurred through the mechanism termed the Immune Reconstitution Inflammatory Syndrome (IRIS) which has been associated with administration of antiretroviral regimens (7). IRIS is particularly common among patients who are HIV infected and immunocompromised with extrapulmonary TB (7). This reaction is thought to be associated with improved immune function elicited by antigens released as the bacilli are killed. In other words, unmasking IRIS is an antiretroviral associated inflammatory manifestation of a subclinical infection with a hastened presentation. In this latter form signs and symptoms not clinically apparent before, appear during antiretroviral therapy (7). One of the proposed treatments for this phenomenon is the use of glucocorticoids that we also used in our patient (7).

Imaging techniques particularly echocardiography are the cornerstone of characterizing intra-cardiac masses. Nevertheless, confirmation of the diagnosis is achieved via biopsy of the mass and its histological features in addition to the gold standard method of mycobacterial culture.

The treatment of choice seems to be anti-TB medication with duration of approximately 9 months. Previous cases have reported definitive cure in terms of complete recovery of patient’s signs and symptoms along with imaging evidence of cardiac involvement resolution without surgery but in our patient this was not the case even with the help of surgical therapy (5). Indications for surgical management include uncertain diagnosis, threatening thromboembolism, refractory malignant arrhythmias, hemodynamically significant obstruction and inadequate response to medical therapy (5).

In conclusion, this case revealed a peculiar cardiac complication of TB which is exceedingly rare and apart from very few cases reported so far others were not diagnosed while the patient was alive. Advanced imaging modalities now have given us the capability of earlier diagnosis and surveillance. Cardiac tuberculoma may regress after anti-TB therapy, and surgery may be needed to help with the diagnosis as well as the therapy.
