Left ventricular ischemia in pre-capillary pulmonary hypertension: a cardiovascular magnetic resonance study

Introduction

Pulmonary arterial hypertension (PAH) is a serious and progressive disorder, in which the prognosis is largely dependent on right ventricular (RV) function (1). Recent studies, however, have suggested the presence of left ventricular (LV) dysfunction in PAH patients. Studies from explanted hearts of PAH patients, for example, have demonstrated atrophy and severe contractility impairment of the LV cardiomyocyte (2). The potential contribution of LV ischemia, to progressive LV dysfunction has not been systematically studied in PAH.

Oxygen-sensitive (OS) cardiovascular magnetic resonance (CMR), also known as blood oxygen level-dependent (BOLD) CMR imaging, enables the in vivo assessment of myocardial oxygenation at the tissue level. The utility of this technique is underpinned by the natural paramagnetic properties of hemoglobin (3). Following vasodilator stress, healthy vessels dilate sufficiently to increase myocardial oxygenation creating a BOLD-effect, leading to signal intensity (SI) changes in OS-CMR sequence. In segments subtended by healthy vessels there is relative reduction deoxyhemoglobin concentration, leading to a rise in SI. Conversely a mismatch in oxygen supply and demand causes to a relative accumulation of deoxyhemoglobin which would blunt the SI changes. The OS-CMR sequence has been validated by direct measurement of myocardial oxygenation in various conditions involving the left ventricle (LV) (4). In addition to OS-CMR, CMR stress/rest T1 mapping has emerged as a novel promising technique to distinguish normal, ischemic and infarcted myocardium in patients with coronary artery disease (CAD) (5). This technique measures changes in T1-values between native (rest) T1 mapping and vasodilator induced native (stress) T1 mapping. CMR T1 mapping is highly sensitive to changes in myocardial water content, including myocardial blood volume (MBV) (6,7). Vasodilator stress induction causes coronary vasodilatation which leads to changes to myocardial water (6) and MBV (8,9); hence altering T1-values which will enable assessment of microvascular and MBV changes during ischemia (10). Stress/rest T1 mapping is validated to distinguish between epicardial and microvascular CAD (11-14).

While epicardial CAD is the most common cause of myocardial ischemia, studies have demonstrated that coronary microvascular dysfunction (CMD) leads to reduced quality of life and carries an adverse long-term prognosis (15,16). To date, no study has used these emerging CMR techniques to advance the understanding of myocardial ischemia and/or oxygenation in the left ventricle of pre-capillary PH patients. This could potentially provide novel mechanistic insights into the pathophysiology of the complex PH clinical syndrome and subsequently lead to potential new treatment pathways. Hence, the present study sought to assess the presence and extent of LV myocardial ischemia in patients with known pre-capillary PH and absent epicardial CAD, using OS-CMR and stress/rest T1 mapping. We present the following article in accordance with the STROBE reporting checklist (available at http://dx.doi.org/10.21037/cdt-20-698).

Methods

Study population

Patients attending PH clinics at two South Australian public hospitals were invited to participate in this study. The inclusion criteria were right heart catheter-proven pre-capillary PH [defined as mean pulmonary artery pressure (mPAP) ≥25 mmHg and pulmonary artery wedge pressure (PAWP) <15 mmHg]. Exclusion criteria included severe RV dysfunction on echocardiography (determined by tricuspid annular plane systolic excursion), echocardiographic LV ejection fraction <50% and/or CAD (defined as >70% luminal stenosis in an epicardial coronary artery at angiography or prior myocardial infarction) as well as contraindications to CMR and/or adenosine (second or third-degree heart block, obstructive pulmonary disease or dipyridamole use). Eight patients with known CAD (CAD controls) on coronary angiogram were recruited into the study in order to characterize the OS-CMR and T1 reactivity values in their ischemic myocardial segments for comparison with the values in the myocardium of patients with PH. Eleven healthy volunteers (normal controls) with no known cardiac or respiratory disease or symptoms and no cardiac risk factors, including hypertension, smoking and diabetes, were invited to participate as controls. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). This study was approved by the Southern Adelaide Clinical Human Research Ethics Committee (HREC/15/SAC/397), and all participants provided written informed consent to participate in the study.

CMR protocol

The participants were scanned using a 3 Tesla clinical MR scanner (Siemens, 3T MAGNETOM Skyra, 18 channel torso phased array coil in conjunction with a spinal coil posteriorly). The participants were asked to refrain from caffeine 24 hours before the scan. The cine images were acquired in vertical and horizontal long-axis, and ten short-axis images covering the entire right and left ventricles, using a retrospective ECG gating steady-state free precession (SSFP) sequence [repetition time (TR) 3 ms, echo time (TE) 1.5 ms, flip angle 55˚]. For OS imaging, a single mid-ventricular slice was acquired at mid-diastole using a T2-prepared ECG-gated SSFP sequence (TR 256 ms, TE 1.21 ms, T2 preparation time 40 ms, matrix 168×192, field of view 340 mm×340 mm, slice thickness 6 mm, flip angle 44˚) (Figure 1). Four OS-CMR images were acquired at rest during a single breath-hold over six heartbeats. At stress, four OS-CMR images identical to the ones acquired at rest were acquired at peak adenosine stress (140 µg/kg per minute) starting at 120 seconds after initiation for at least 5 minutes (Figure 1). T1 mapping was acquired using Shortened Modified Look-Locker Inversion recovery (ShMOLLI) in three short-axis slice positions (basal, mid-ventricular and apical) as previously described (Figure 1) (5). The resting T1 maps were acquired after the resting OS-CMR images. The mid-ventricular slice location was matched to the mid-ventricular resting OS-CMR images, and the basal slice was carefully selected to avoid the LV outflow tract. Stress T1 maps were acquired after the stress OS-CMR images (starting 5 mins after the commencement of the adenosine infusion) in 3 short-axis slices matching the resting T1 maps. Stress heart rate and blood pressure were obtained once every minute during the adenosine infusion. Patients were monitored by ECG, sphygmomanometry and pulse oximetry throughout the study.

Figure 1 CMR imaging protocol. OS-CMR and rest/stress CMR imaging protocol for PH, CAD and control group. OS-CMR, oxygen-sensitive cardiovascular magnetic resonance; CAD, coronary artery disease.

CMR analysis

CMR analysis was performed using CVI⁴² (Circle CVI, Calgary, Canada). The left and RV function were analyzed quantitatively from the short-axis SSFP images. Standard functional parameters were calculated including LV ejection fraction (LVEF), RV ejection fraction (RVEF), LV cardiac index (CI), and body surface area indexed end-diastolic (EDVi), end-systolic (ESVi) volumes for LV/RV and LV indexed myocardial mass.

OS-CMR assessment of the LV was performed as previously described (17). In brief, the LV epicardium and endocardium were manually traced and corrected for cardiac motion. The LV myocardium was sub-divided into 6 equiangular segments based on a standard American Heart Association segmentation of the mid-ventricular slice (Figure 2) (18). Mean myocardial SI within each segment was obtained by averaging signal measurements from images acquired both at rest and stress and corrected for heart rate using previously published techniques (19). The measured SI corrections for heart rate were made using the following equation (17):

S = S₀/[1-βe (-T_R/T1)][1]

Figure 2 Representative cases in a PH, control and CAD patient. OS-CMR and Rest/Stress T1 mapping protocol whereby a resting mid-ventricular OS-CMR is first acquired followed by the resting T1 mapping at basal, mid-ventricular (matched to OS-CMR image slice location) and apical. Following vasodilator stress, matching mid ventricular slice stress OS-CMR images and stress T1 mapping images matching the resting three short-axis slice positions were then acquired. OS-CMR, oxygen-sensitive cardiovascular magnetic resonance; CAD, coronary artery disease.

An empirical value of T1=1,220 ms and β=0.59 from previously described work was used for this sequence (17). S is the corrected SI and S₀ is the measured SI. TR is the image dependent time between acquisitions of sections of k-space, governed by the heart rate (17). The relative SI change was calculated as ΔSI (%) = (SI stress − SI rest)/SI rest ×100. The mean global LV ΔOS-CMR SI is derived from the mean ΔOS-CMR SI of all 6 equiangular segments. The mean LV septal ΔOS-CMR SI was derived from the mean ΔOS-CMR SI of the antero- and inferoseptal LV segments and the mean LV free-wall ΔOS-CMR SI was derived from the mean ΔOS-CMR SI of the antero- and inferolateral LV segments.

Myocardial T1 analysis was performed on the T1 maps acquired during rest and stress. The endocardial and epicardial contours were manually traced for all the 3 short-axis T1 map images (basal, mid-ventricular and apical) and were divided into 16 segments according to the American Heart Association 17-segment model (18). The mean myocardial T1 within each segment was obtained, both at rest and stress. The T1 reactivity (ΔT1) was then calculated from the T1-values at rest (T1_Rest) and during adenosine stress (T1_Stress) as (Figure 2):

ΔT1 = (T1_Stress – T1_Rest)/T1_Rest ×100%[2]

Statistical analysis

All analyses were performed using the Stata statistical software version 15.1 (StataCorp., USA). Categorical data are described using frequencies and percentages and continuous data using mean and standard deviation. Differences between groups in mean resting T1, the mean changes in T1 and the mean changes in myocardial oxygenation response were assessed using independent t-tests. Group comparisons were made using ANOVA with post-hoc Dunnett’s test used for multiple group corrections. Changes in these same outcomes within patient groups were assessed using paired t-tests. The overall association between OS-CMR and T1 reactivity was assessed using a mixed effects model to account for non-independence of observations due to multiple measures from different segments. We included a random intercept for the subject as well as a fixed effect for the segment. Separate associations between OS-CMR and T1 reactivity for each segment were assessed using the Pearson r correlation coefficient. A 2-sided type 1 error rate of alpha =0.05 was used for assessing statistical significance.

Results

Participants characteristics

The subject characteristics are summarized in Tables 1,2. Among the PH patients, 11 (39%) had idiopathic pulmonary artery hypertension (iPAH), 13 (46%) patients had systemic sclerosis-associated PAH (SSc-PAH), and 4 (14%) patients had chronic thromboembolic PH (CTEPH). Average mPAP was 34±7 mmHg and the average mean PAWP was 12±3 mmHg. The mean interval between right heart catheter with coronary angiogram and the CMR research study was 2 years. The mean 6-minute walk distance was 392±114 meters. On echocardiography, 9 (36%) patients had RV dilatation with an echocardiography-estimated resting systolic pulmonary artery pressure of 52±25 mmHg. All PH patients were treated with pulmonary vasodilators such as bosentan, macitentan, sildenafil, riociguat with 14 (50%) on combination therapy. The PH patients were stable and continued their pulmonary vasodilator therapy during the CMR research scan.

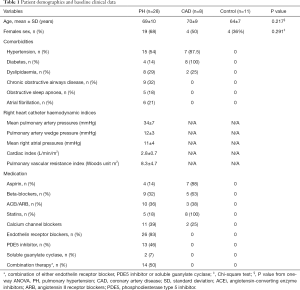

Table 1 Patient demographics and baseline clinical data
Full table

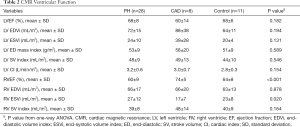

Table 2 CMR Ventricular Function
Full table

CMR characteristics

Table 2 shows a comparison of CMR variables between PH, CAD and controls. The only statistically significant difference in CMR volumetric and functional indices between PH, CAD and controls was the RVEF (P<0.001) and RV ESVi (P=0.020).

LV myocardial oxygenation response (OS-CMR)

All 28 patients completed the OS-CMR study protocol. The mean global LV ΔOS-CMR SI change was significantly lower in the PH group compared to the controls (11.1%±6.7% vs. 20.5%±10.5%, P=0.016). In contrast, the ΔOS-CMR SI changes in the myocardium of the PH patients were comparable to the ischemic segments of CAD patients (11.1%±6.7% vs. 10.3%±6.4%, P=0.773) (Figure 3). As there is interventricular ‘septal bowing’ (D shaping) in PH we also compared the ΔOS-CMR SI in various segments of the LV. We found in PH, the mean global LV ΔOS-CMR SI was comparable to mean LV septal ΔOS-CMR SI (11.1%±6.7% vs. 12.3%±7.6%, P=0.523) and mean LV free-wall ΔOS-CMR SI (11.1%±6.7% vs. 10.3%±8.2%, P=0.710). In addition, there was comparable mean ΔOS-CMR SI changes between LV septal and LV free-wall (12.3%±7.6% vs. 10.3%±8.2%, P=0.352) in the PH group.

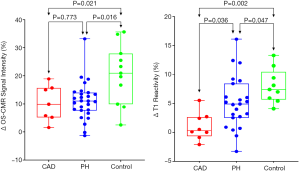

Figure 3 Distribution of vasodilator stress response of OS-CMR and T1 Reactivity in coronary artery disease (CAD), pulmonary hypertension (PH) and control. The ΔOS-CMR SI in PH was comparable to CAD patients but significantly lower compared to control group. Meanwhile there is a significant difference of ΔT1 reactivity in PH compared to CAD and control group.

Myocardial stress/rest T1 reactivity

Of the total of 28 PH patients who underwent the Stress/Rest T1 CMR protocol, 23 (82%) patients had good quality analyzable T1 maps. Stress/Rest T1 maps were excluded due to the presence of LV outflow tract on the basal T1 map slices at stress in 3 (11%) patients and the remaining 2 (7%) patients had poor T1 maps due to cardiac or respiratory motion. Resting T1-values for the control were within previously published ranges: 1,153±33 (14). Compared to controls, patients with PH had higher resting T1-values: 1,247±74, P<0.0001. During vasodilator stress, the T1-values increased significantly in both PH patients (from 1,247±74 to 1,311±83, P<0.0001) and controls (from 1,153±33 to 1,245±38, P<0.0001). However, the global ΔT1 reactivity was significantly blunted in the PH patients compared to controls (5.2%±4.5% vs. 8.0%±2.9%, P=0.047). The ischemic segments of CAD patients had comparable resting T1 value to controls (1,197±78 vs. 1,153±33, P=0.170) and PH patients (1,197±78 vs. 1,247±74, P=0.138). However, the ΔT1 reactivity in the ischemic segments of CAD was 1.1%±4.2% and this is significantly lower when compared to the global ΔT1 reactivity in PH patients (5.2%±4.5%, P=0.036) and controls (8.0%±2.9%, P=0.002) (Central Illustration). In PH, the global LV ΔT1 reactivity was comparable to mean LV septal ΔT1 reactivity (5.2%±4.5% vs. 4.4%±3.7%, P=0.537) and mean LV free-wall ΔT1 reactivity (5.2%±4.5% vs. 5.8%±4.9%, P=0.625). In addition, there was no significant difference between mean ΔT1 reactivity of LV septal and LV free-wall (4.4%±3.7% vs. 5.8%±4.9%, P=0.267).

Comparing LV myocardial ischemia in iPAH and SSc-PAH

No significantly different changes in global ΔOS-CMR SI or ΔT1 reactivity were seen between iPAH and SSc-PAH patients. The global LV ΔOS-CMR SI in the iPAH (n=11) and SSc-PAH (n=13) patients was 9.7%±5.1% vs. 11.5%±7.9%, P=0.516. The global ΔT1 reactivity between the iPAH (n=9) and SSc-PAH (n=13) patients was 6.5%±5.3% vs. 4.3%±4.0%, P=0.319. The CTEPH patients were not compared due to low patient numbers.

Correlations between myocardial oxygenation, ΔT1 reactivity and CMR volumetric/functional and hemodynamic indices in PH patients

When the changes in OS-CMR and T1 were averaged, there was a moderate correlation between global ∆OS-CMR SI and ∆T1 reactivity (r=0.50, P=0.015) (Figure 4). However, a stratified segmental analysis between a mid-ventricular ∆OS-CMR SI and mid-ventricular ∆T1 reactivity showed mostly weak associations with Pearson r correlation coefficients for the 6 segments of 0.46 (P=0.03), 0.50 (P=0.02), 0.54 (P=0.009), 0.31 (P=0.16), 0.28 (P=0.20) and 0.35 (P=0.11) (Figure 5). In addition, there was no overall association between mid-ventricular ∆OS-CMR SI and mid-ventricular ∆T1 reactivity when assessed using the mixed effects model (β=−0.05, 95% CI, −0.32, 0.22; P=0.71). These findings imply that while a blunted global ∆OS-CMR SI and ∆T1 reactivity suggest presence of abnormal myocardial oxygenation and vasodilatory response, there is poor association between blunted myocardial deoxygenation and ∆T1 reactivity. Compared to CMR volumetric/functional indices ∆OS-CMR SI had moderate correlation to CMR RV EDVi (r=−0.47, P=0.016) and CMR LVEF (r=0.41, P=0.038). ∆T1 reactivity had strong correlation to CMR RV EDVi (r=−0.73, P<0.001) and a moderate correlation to CMR LVEF (r=0.48, P=0.023). These findings suggest that increased CMR RV EDVi and decreased CMR LVEF are associated with blunted ∆OS-CMR SI and ∆T1 reactivity (Figure 6). There was no significant correlation between myocardial oxygenation and ∆T1 reactivity to RV haemodynamic indices.

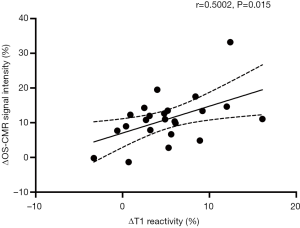

Figure 4 Patient correlation between OS-CMR and T1 Reactivity. Among PH patients, there is moderate correlation between global ΔOS-CMR and global ΔT1 reactivity. OS-CMR, oxygen-sensitive cardiovascular magnetic resonance.

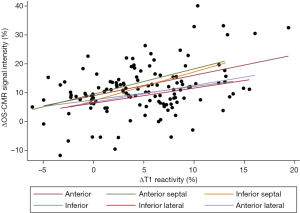

Figure 5 Segmental correlation between OS-CMR and T1 Reactivity. On mid ventricular segmental comparison among PH patients, there is weaker correlation between ΔOS-CMR and ΔT1 reactivity. OS-CMR, oxygen-sensitive cardiovascular magnetic resonance.

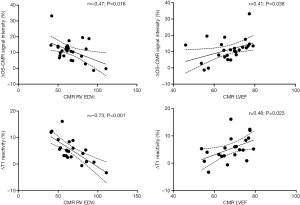

Figure 6 Correlation between OS-CMR, T1 Reactivity and CMR volumetric and functional indices. ΔOS-CMR had a moderate correlation to CMR right ventricular (RV) end diastolic volume index (EDVi) and CMR left ventricular (LV) ejection fraction (EF). ΔT1 reactivity had a strong correlation to CMR right ventricular (RV) end diastolic volume index (EDVi) and a moderate correlation to CMR left ventricular (LV) ejection fraction (EF). OS-CMR, oxygen-sensitive cardiovascular magnetic resonance.

Discussion

In this study, we have demonstrated the presence of blunted myocardial oxygenation and T1 reactivity in the LV of PH patients. These blunted responses to adenosine stress was demonstrated in PH patients who were stable on pulmonary vasodilator therapy and at an early ‘adaptive’ stage of PH with non-obstructive epicardial coronaries. These data strongly suggest the presence of CMD. This provides a novel mechanistic understanding into the pathophysiology of LV dysfunction in PH, and could subsequently lead to new potential treatment targets, in such patients.

Coronary microvascular disease of the LV in pre-capillary PH

Several studies have described different pathophysiological causes of LV dysfunction in patients with PAH (20-25). Changes in RV affect the interventricular interaction by leftward septal bowing, which leads to impaired LV diastolic filling (20,21). Other studies have also demonstrated LV diastolic dysfunction (23,24) and reduction in LV free wall mass, in association with RV dysfunction, in PAH (25).

It has been recognized that in PAH, RV myocardial ischemia is a precipitant of adverse remodeling and progressive RV dysfunction (26). The gradual remodeling of small distal pulmonary arteries followed by elevated pulmonary vascular resistance, microvascular ischemia and mitochondrial dysfunction culminates in RV failure and death (26). Although LV myocardial ischemia has been described in congenital heart and left heart disease associated post-capillary pulmonary hypertension, there are limited studies in PAH. In SSc-PAH, the LV myocardial perfusion abnormalities have been attributed to decreased coronary flow reserve (27) and CMD (28) related to concurrent SSc involvement of the myocardium. Extrinsic compression of the left main coronary arteries (LMCA) due to a dilated pulmonary artery has been elegantly described by Galiè et al. (29). It is increasingly recognized however, that the microvascular damage seen in the pulmonary vasculature of PAH has links to coronary vascular disease. A recent study by Meloche et al. demonstrated that the inflammation and epigenetic readers seen in PAH pulmonary vasculature were also overexpressed in the coronary arteries. The authors suggested that inflammatory and epigenetic readers may trigger coronary vascular remodeling in both the LV and RV leading to CMD and CAD (30). We have now extended these findings by demonstrating that patients with less severe PH, and no obstructive CAD, have a blunted myocardial oxygenation response and stress/rest T1 response to adenosine stress. These findings are consistent with the presence of CMD in pre-capillary PH patients.

Myocardial oxygenation and T1 reactivity in response to vasodilator stress

Elevated resting (native) T1-values with a significant rise in stress T1-values on vasodilator stress in PH has been demonstrated in aortic stenosis (11), chronic kidney disease (14), and primary cardiomyopathies (31,32). Native CMR T1 parametric mapping has been used for inflammation/edema imaging and as a proxy for diffuse interstitial fibrosis in the absence of an alternative cause of interstitial expansion (edema, infiltrations/fiber disarray) (33). T1 mapping measures the total water content in the tissue and any changes to intravascular MBV will prolong T1 relaxation time. Vasodilator stress-induced coronary vasodilatation will lead to changes to MBV which forms the basis of stress/rest T1 mapping. Preliminary studies using stress/rest T1-mapping and CMR first-pass perfusion imaging in hypertrophic (31) and dilated (32) cardiomyopathy have demonstrated a correlation between T1 reactivity and myocardial perfusion. While this is encouraging, more in-depth validation of stress/rest T1 mapping is required. In our study, patient tolerability limited the use of CMR first-pass perfusion imaging, however other studies have demonstrated myocardial perfusion abnormalities on CMR first-pass perfusion imaging in PAH (34). Furthermore, elevated myocardial T1-values have been demonstrated in PAH (35), which appears to be consistent with myocardial interstitial space expansion (36). While PAH associated LV underfilling is thought to be the cause of LV interstitial changes, the exact mechanism is not completely understood (37,38). In addition, there were no differences in the elevated T1-values between iPAH, SSc-PAH or CTEPH (35,39). Therefore, the observed blunted ΔT1 reactivity in PAH occurs as a result altered intravascular MBV during stress secondary to coronary vascular remodeling.

Previous studies have shown that myocardial oxygenation and perfusion during vasodilator stress may be dissociated (40). For example, our group has previously shown that in patients with known CAD, there was a disassociation between OS-CMR SI and quantitative perfusion myocardial blood flow with 50% of hypoperfused segments demonstrating no evidence of deoxygenation (40). In dilated cardiomyopathy, Dass et al. demonstrated a disassociation between microvascular dysfunction and oxygenation (41). Conversely, oxygen demand may be increased in the absence of perfusion abnormalities as demonstrated in hypertrophic cardiomyopathy gene carriers (42) despite the absence of LV hypertrophy (43). In this study, we have demonstrated a blunted global ΔOS-CMR SI and global ΔT1 reactivity in response to vasodilator stress suggesting the presence of CMD. Furthermore the ΔOS-CMR SI and ΔT1 reactivity affects the LV globally with comparable findings in the LV septal and free wall segments. However, on segmental analysis there is poor correlation between myocardial deoxygenation and changes to intravascular MBV (i.e., ΔT1 reactivity), suggesting that myocardial oxygenation and perfusion may be dissociated in PH patients also. This interplay between myocardial deoxygenation and changes in intravascular MBV during stress in pre-capillary PH has not been previously demonstrated.

Study limitations

Our study only performed a single mid-ventricular slice on OS-CMR imaging rather than the entire ventricle. However, we believe that in PH, the myocardium is affected globally and it is unlikely to affect the results. The OS-CMR images were acquired in mid-diastole as opposed to systole. While there are studies that have demonstrated advantages on acquiring OS-CMR images in systole (44), we have chosen mid-diastole acquisition to keep it consistent with T1 mapping acquisition. Moreover, the mid-diastole OS-CMR acquisition was also consistent with our and other studies that have demonstrated microvascular dysfunction in the LV (45-48). This study has a small sample size which could increase the margin of error. A further larger study would help determine the utility of these novel techniques in PAH and its association with clinical outcomes. Moreover, compared to the PH group, the numbers in the CAD and control groups were relatively small. Nonetheless, both CAD and control groups were age-matched to the PH group, minimizing any significant bias. This is important, especially in T1-values whereby age is known to influence native myocardial T1-values (7). While this was a prospective study, we recruited PH patients who were stable on pulmonary vasodilator therapy which would have mitigated against the finding of LV ischemia. A larger study would help to determine the clinical and prognostic utility of these novel CMR techniques in PH.

Clinical implication and future directions

The current study provides insights into the myocardial perfusion and oxygenation abnormalities in patients with non-severe PH. These findings suggest the presence of CMD, which has important clinical implications. Patients with CMD may present with typical effort-induced angina, but also with atypical symptoms such as dyspnea on exertion (49). In PAH, exertional limitation is the dominant symptom, and there are other factors (respiratory mechanics/ventilation, cardiovascular response and psychological/emotional aspects) that can contribute to this (50). Although resting hemodynamic measures such as mPAP and cardiac output correlate with severity of symptoms, there is a substantial inter-individual variability that is not explained by hemodynamic severity (51). Although, we have not demonstrated any significant correlation between these novel CMR techniques and conventional prognostic markers of CMR RV EF and hemodynamic indices, OS-CMR and Stress/Rest T1 mapping techniques may provide additional pathophysiological insights in PH patients with ongoing exertional symptoms. In addition, characterizing CMD adds further potential for newer therapies that target myocardial ischemia and oxidative stress, such as ranolazine and trimetazidine that are currently in clinical trials (52).

Conclusions

Blunted OS-CMR SI and T1 reactivity with stress suggest the presence of CMD in pre-capillary PH patients without significant epicardial CAD. This provides novel pathophysiological insights and may suggest potential future therapeutic targets, in PH.

Acknowledgments

Funding: This research is being funded by the National Health and Medical Research Council of Australia and Actelion Pharmaceuticals Australia.

Footnote

Reporting Checklist: The authors have completed the STROBE reporting checklist. available at http://dx.doi.org/10.21037/cdt-20-698

Data Sharing Statement: Available at http://dx.doi.org/10.21037/cdt-20-698

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/cdt-20-698). Prof. JBS reports that he serves as a current Editorial Board Member. Dr. SP and Dr. JGW receive grants from Actelion, outside from submitted work. The authors have no other conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by Southern Adelaide Clinical Human Research Ethics Committee (HREC/15/SAC/397) and informed consent was taken from all individual participants.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
