Robotic-assisted intervention strategy to minimize air exposure during the procedure: a case report of myocardial infarction and COVID-19

Introduction

Infection by the novel SARS-CoV-2 virus causes the Coronavirus Disease 2019 (COVID-19), an outbreak that has recently reached pandemic, worldwide, proportions (1). As the disease wave spreads across the countries, medical and scientific knowledge expand rapidly, results of a never-seen-before planetary task force aiming at developing preventive measures to reduce the rate of infected persons as well as validating effective therapeutic strategies (2).

Since many years, percutaneous coronary intervention (PCI) has been the most commonly applied invasive method to treat coronary disease (3,4). Particularly in the context of acute coronary syndromes, PCI is considered the treatment of choice to reduce short- and long-term cardiovascular morbi-mortality (5). Traditionally, PCI is a totally manual procedure, executed by one or more operators positioned at a close distance from the patient, typically taking between one to three hours to be accomplished. The COVID-19 pandemic has imposed severe restrictions to such an interventional environment (6). The SARS-CoV2 spreads mainly through respiratory particles expelled from infected persons, which are known to travel approximately 3-6 feet away (7). In traditional PCI procedures, that contamination range obligatorily poses the team and the patient to direct air exposure.

In this context, we herein present a case report of patient treated with PCI following a minimum-contact strategy with the main objective of minimizing interpersonal air exposure during the procedure.

We present the following article in accordance with the Case Report Guidelines (CARE) reporting checklist (available at http://dx.doi.org/10.21037/cdt-20-521).

Case presentation

A 60-year-old male, with a medical history of systemic hypertension, non-insulin dependent diabetes and current smoking (50 pack-years), presented to the emergency department of a secondary hospital with complaints of chest pain and dyspnea. A close acquaintance had been ill and had tested positive for acute respiratory syndrome coronavirus-2 (SARS-CoV-2). Blood pressure was 108/72 mmHg, heart rate 60 beats/min, respiratory rate 20 breaths/min, and body temperature normal. His physical examination was normal except for bilateral fine crackles on lung auscultation.

The admission EKG showed ST segment depression (I and aVL) and Q waves (III and aVF). Shortly after presentation he developed a monomorphic ventricular tachycardia with hemodynamic instability. Immediate electric cardioversion restored sinus rhythm. He had no recurrence of the thoracic pain but maintained hemodynamic instability needing vasoactive drugs for four days. He was kept on double anti-platelets and therapeutic dose of enoxaparin. High-sensitivity serum troponin was positive (peak of 3.75 ng/mL; upper limit of normality 0.034 ng/mL). Thus, non-ST elevation myocardial infarction was diagnosed. Echocardiogram showed inferior akinesia and systolic disfunction (left ventricular ejection fraction =31%).

He subsequently developed fever and non-productive cough. On the 4^th day, a chest non-contrast computed tomography revealed multiple, mainly subpleural ground-glass opacities in right upper lobe (Figure 1A). As fever did not subside, a new scan was obtained (12^th day) and showed increased extent of ground-glass opacity on the right and new foci on the left lung (Figure 1B,C). He was managed with broad-spectrum antibiotics and did not require intubation or high-flow oxygen therapy.

Figure 1 Lung computed tomography of days 4 and 12. (A) Lung computed tomography (day 4) showed multiple, mainly subpleural, ground-glass opacities in the right upper lobe (arrowhead). (B) A new scan (day 12) showed increased extent of lesions on the right lung (arrowhead) and (C) new foci on the left (C, arrow) lung.

The patient was transferred to our tertiary hospital 18 days after the initial admission. A nasal swab real-time polymerase chain reaction test was still positive for COVID-19 on that same day. Cardiac catheterization was performed on the day of the transfer and revealed an occluded right coronary artery (possibly chronic total occlusion), with a significant lesion in the left circumflex artery and a TIMI II sub-occlusive lesion in the obtuse marginal branch (culprit lesion) (Figure 2).

Figure 2 Coronary angiograms showing a totally occluded right coronary artery in its mid portion (A, B), with collateral filling through the left coronary (C, arrowhead). The left anterior descending artery was free of obstructive disease (C). A culprit sub-occlusive stenosis was noted in the first obtuse marginal branch (D and E, white arrows) and a tight narrowing was seen in the proximal left circumflex artery (D and E, black arrows). The obtuse marginal and the left circumflex were successfully treated with robotic-assisted stent implantation (F, white and black arrows, respectively).

We decided to perform ad hoc percutaneous coronary intervention (PCI) following a multiple-step strategy, designed to minimize proximity between the patient and the healthcare team during the procedure:

• Percutaneous coronary intervention performed through robotic assistance (CorPath GRX System. Corindus, A Siemens Healthineers Company, Waltham, MA, USA). The robotic platform is specifically developed for cardiovascular intervention and enables the manipulation of guide-catheters, 0.014” guidewires, and rapid-exchange interventional devices through a robotic arm (8-16). Robotic assistance provides accurate measurements with submilimmetric accuracy in the positioning of interventional materials. The system is operated by unscrubbed cardiac interventionalists from a control cockpit located outside the catheterization suite (Figure 3A). The physician uses joysticks and touchscreens to translate his movements of the devices (Figure 3B). The system has U.S. Food and Drug Administration approval for remote manipulation of interventional devices during percutaneous coronary and vascular procedures.
  If scrubbed manual operation was required at any time during the procedure, the physician was directed to stay in that position for the minimum time possible, returning to the cockpit as soon as the need for manual maneuvering was over.
• To delineate the potential zone of respiratory particle spread, a circle measuring 4 meters (13.1 feet) in diameter was traced on the floor of the cath lab with red tape, centered on the patient's mouth and nose (Figure 3). The team was rigorously trained and advised to minimize time spent within the 4-meter perimeter as much as possible during the procedure.
• To help minimize proximity, contrast administration was performed through a pump injector (ACIST CVi™ Contrast Delivery System, ACIST Corporate, Eden Prairie, Minnesota, USA) managed by a scrubbed nurse, who was positioned outside of the 4-meter circular zone (Figure 3A,B,C).
• During the procedure, the patient was kept awake, wearing a surgical mask. All personnel wore appropriate personal protective equipment while in the cath lab suite, which included a non-permeable gown, gloves, goggles and a face shield, and an N95 respirator (Figure 3A,B,C).

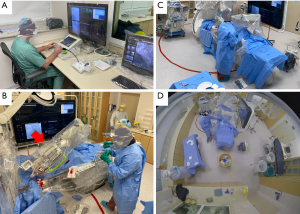

Figure 3 Cath lab set-up during robotic-assisted intervention to minimize air-exposure. (A) Percutaneous coronary intervention performed by an interventionalist outside of the catheterization suite using robotic assistance (CorPath GRX Vascular Robotic System. Corindus Vascular Robotics, Waltham-MA, USA). (B) the robotic arm (red arrow) manages the devices at tableside. (B-D) Traced circle, 4 meters (13.1 feet) in diameter and centered on the patient’s face, was marked on the floor of the cath lab with red tape. This circle was used to represent the minimum safe distance. Note the placement of scrubbed and unscrubbed personnel relative to the spread zone.

Robotic-assisted PCI was successfully accomplished with implantation of two stents in the obtuse marginal branch and one stent in the circumflex artery (Figure 2).

The procedure was filmed and analyzed offline to quantify the time each member of the team spent inside the 4-meter-diameter zone. The total duration of the procedure was 103 minutes and 22 seconds. During most of the procedure, the 4-meter spread zone was not entered by any personnel (Table 1). For each individual team member, the proposed strategy was effective in ensuring that they stayed outside of the 4-meter area for the majority of their work time, ranging from 96.9% to 59.7% of their respective participation.

Table 1 Personnel participation during the procedure
Full table

After the procedure, the patient stayed uneventfully in the hospital for 72 hours and was discharged home 48 hours after the last fever episode.

All procedures performed were in accordance with the ethical standards of the institutional and national research committees and with the Helsinki Declaration (as revised in 2013). Written informed consent was obtained from the patient for publication of this study and any accompanying images.

Discussion

Several reports suggested that SARS-CoV2 per se may trigger acute cardiac injury, either due to type 2 myocardial infarction or myocarditis (17). This adds to the normal volume of patients with atherosclerotic coronary disease and presages a potential intensification in the burden of patients presenting with acute syndromes and confirmed or suspected virus infection. The perspective of diagnostic uncertainty associated with the risk of professional contamination is directing experts to advocate deferral, or even avoidance, of invasive management for selected patients with coronary disease (18). Importantly, the risk of infection to healthcare workers, along with the time needed to recover from the disease or to satisfy quarantine requirements, carries with it the potential for staffing shortages in the cath-lab, or the inability to perform interventional procedures at all from time to time. Therefore, preventive approaches to reduce the risk of contamination of health care professionals, such as the one currently presented, are timely and needed without delay.

On the other side, evidence increasingly shows that patients are now avoiding hospital care even when experiencing typical features of a heart attack, possibly due to the fear of viral exposure. In many places, out-of-hospital cardiovascular deaths due to spontaneous coronary disease have risen steeply in recent weeks (19). Going forward, public pressures will necessitate a clean hospital milieu, with care pathways designed to avoid COVID-19 exposure. The approach utilized in our case is in line with that paradigm. Obviously, to be more generally adopted, such a strategy must be confirmed by formal clinical trials. Accordingly, a pilot study with the proposed strategy is to be initiated soon (ClinicalTrials.gov number, NCT04379453).

Conclusions

This case report illustrates the potential of robotic-assisted percutaneous coronary intervention, coupled with a thoughtful strategy to reduce proximity, to provide successful invasive treatment while reducing physical proximity between the team and the patient during the procedure.
