Design and rationale of randomized CT-PRECISION study

Introduction

Coronary computed tomography angiography (CCTA) is a well-established non-invasive diagnostic modality for anatomic assessment of coronary stenosis but its clinical value is limited by low specificity for detecting lesion-specific ischemia. The PROMISE trial has demonstrated that CCTA increased the rate of invasive coronary angiography (ICA) by 50% as compared with functional test and over 1/4 of these patients didn’t have obstructive coronary artery disease (CAD) identified by ICA (1). Recently, the technical development of CT scanners and application of computational fluid dynamics model enables dynamic CT myocardial perfusion imaging (CT-MPI) and fractional flow reserve derived by CT angiography (CT-FFR) to provide functional information of coronary lesions based on CT data. The NXT trial showed that CT-FFR can accurately predict lesion-specific ischemia with reference to invasive FFR, with a per-patient sensitivity and specificity of 86% and 79%, respectively (2). Moreover, CT-FFR can reduce unnecessary ICA, as compared with routine CCTA (3,4). In addition to CT-FFR, dynamic CT-MPI is now feasible to provide quantitative myocardial perfusion parameters at relatively low radiation dose and contrast media usage using third generation of dual source CT. These parameters are able to precisely evaluate myocardial ischemia with reference to invasive FFR or cardiac MR MPI (4,5). A recent study has demonstrated that CCTA combined with dynamic CT-MPI (CCTA + dynamic CT-MPI) strategy can also reduce unnecessary ICA, as compared with CCTA strategy alone (6). Although CCTA + dynamic CT-MPI and CT-FFR have great potential in functional assessment of CAD, these two novel imaging modalities also have the following pros and cons. CCTA + dynamic CT-MPI has better diagnosis accuracy, especially higher positive predictive value, than does CT-FFR (7). However, the additional acquisition of CCTA + dynamic CT-MPI protocol results in higher radiation dose and contrast medium usage (8). CT-FFR simulation only needs routine CCTA dataset (9) but the diagnostic performance is limited in cases with impaired image quality, severe calcification and “grey zone” lesions (10).

Functional assessment is recommended in patients with intermediate-to-high pre-test probability of CAD in order to optimize treatment strategy (11). CCTA + dynamic CT-MPI and CCTA + CT-FFR are both expected to be efficient one-stop shop imaging strategies to guide clinical management. However, there is no existing data for direct comparison of these two protocols to determine which one has superiority for treatment guiding. Given the better diagnostic performance of dynamic CT-MPI, we hypothesized that CCTA + dynamic CT-MPI strategy may result in lower rate of unnecessary ICA and similar prognosis compared to CCTA + CT-FFR strategy in patients with intermediate to high pre-test probability of CAD. Therefore, this CT-PRECISION (Computed Tomography myocardial PeRfusion imaging vErsus Computed tomography derived fractional flow reServe: Impact ON guiding treatment and prognosis in patients with intermediate to high pretest probability of CAD) study is designed to investigate the rate of unnecessary ICA and clinical outcome in patients guided by CCTA + dynamic CT-MPI strategy and CCTA + CT-FFR strategy. We present the protocol in accordance with the SPIRIT reporting checklist (available at: http://dx.doi.org/10.21037/cdt-21-57).

Methods

The study will be conducted in accordance with the Declaration of Helsinki (as revised in 2013). Hospital ethic committees of Shanghai General Hospital and Shanghai Jiao Tong University Affiliated Sixth People’s Hospital approve this prospective study (approval ID: 2020-173) and all patients will be asked to sign informed consents before enrollment. Any amendments of the protocol will be submitted to hospital ethic committees for review. Detailed clinical characteristics will be recorded.

Study population

The study subjects will be enrolled from two tertiary medical centers. Competitive enrollment and random distribution methods will be adopted. Patients will be included if they: (I) have stable angina or atypical angina; (II) have intermediate to high pre-test probability (≥15%) of CAD estimated by Updated Diamond-Forrester score; (III) are ≥18 years old.

Patients will be excluded if they: (I) have unstable angina; (II) have previous history of myocardial infarction or coronary revascularization; (III) have severe cardiac arrhythmia; (IV) are suspected of cardiomyopathy or other diseases affecting myocardial perfusion; (V) have renal insufficiency; (VI) have allergic reaction to iodinated contrast medium; (VII) have contraindications to the usage of adenosine triphosphate (ATP) (such as asthma, hypotension, III atrioventricular block).

Randomization procedure

Patients will be randomized at 1:1 ratio (using computed generated random numbers) to CCTA + dynamic CT-MPI group or CCTA + CT-FFR group and the downstream treatment strategy will be decided by referring cardiologists according to the CT-based imaging findings. Simple randomization will be used in this research, aiming to achieve a 1:1 allocation ratio. Randomization sequence will be independently generated through software (SPSS 22.0) by a statistician who will not participate rest of the research. Random seed will be determined according to time of sequence generation (for example, if time is 19:35:14, the random seed shall be set as 193514). Based on the random seed, a random number table ranging from 0 to 1 will be generated and the allocation of participants will be determined by the size of corresponding random numbers. The random seed and random number table will remain confidential until the end of trial. Sequentially numbered, opaque, sealed envelope (SNOSE) technique will be used to achieve allocation concealment. Randomization group will be written on paper and kept in sealed opaque envelopes labeled with serial numbers. Once the patient is consent to participate, the envelope with corresponding serial number shall be opened and the participant will be assigned according to instructions in envelope.

Scan protocol

CCTA + dynamic CT-MPI group

CCTA + dynamic CT-MPI protocol

A third generation dual-source CT (SOMATOM Force, Siemens Healthcare, Forchheim, Germany) will be employed for CCTA and dynamic CT-MPI acquisition. CCTA will be firstly performed and on-site evaluation will be performed by a cardiovascular radiologist to interpret CCTA findings. Dynamic CT-MPI will be subsequently performed in the presence of 30% to 90% stenosis on any major vessel (diameter ≥2 mm) as revealed by CCTA. Otherwise, patients will be managed following the study paradigm (Figure 1) without undergoing dynamic CT-MPI. The detailed parameters of CCTA and dynamic CT-MPI acquisition are listed in the Appendix 1.

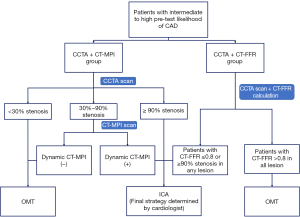

Figure 1 Flow chart of patient inclusion and randomization. CCTA, coronary computed tomography angiography; CT-FFR, CT fractional flow reserve; CT-MPI, CT myocardial perfusion imaging; ICA, invasive coronary angiography; OMT, optimal medical treatment.

CCTA and dynamic CT-MPI image reconstruction and analysis

A medium soft convolution kernel (Bv40) and iterative reconstruction (ADMIRE, level 3) will be used for CCTA reconstruction. The best systolic as well as best diastolic images will be further analyzed using an offline workstation (SyngoVia, version VB20A, Siemens Healthineers, Germany). A stenosis grade of 50% or greater in an epicardial vessel with diameter ≥2 mm on CCTA will be considered to indicate presence of obstructive CAD.

The CT-MPI images will be reconstructed using a dedicated kernel for reduction of iodine beam-hardening artifacts (Qr36) and analyzed using a CT-MPI software package (VPCT, SyngoVia, version VB20A, Siemens Healthineers, Germany). Quantitative analysis of MBF will be measured on a segment base and related details are listed in the Data Supplement. According to the previous study, the absolute MBF value <100 mL/100 mL/min will be considered as the presence of myocardial ischemia (7).

CCTA + CT-FFR group

CCTA acquisition settings will be identical to the CCTA protocol used in CCTA + CT-MPI group.

Image reconstruction and analysis

CCTA reconstruction and image analysis will be as same as aforementioned in the CCTA + dynamic CT-MPI group. Lesion-specific CT-FFR values will be measured for all stenosis with diameter stenosis ≥30% on any epicardial vessel (diameter ≥2 mm), using a machine learning (ML)-based algorithm (cFFR, version 3.0, Siemens Healthineers, Germany) of which the diagnostic performance has been validated against invasive FFR in previous studies (12,13). The detailed measurements of CT-FFR are listed in the Data Supplement. Downstream treatment strategy will be decided based on the results of CT-FFR (Figure 1).

Radiation dose

Radiation dose of both CT tests and invasive treatment stratum will be recorded. And 0.014 will be used as conversion factor to calculate effective dose.

Downstream treatment strategy

CCTA + dynamic CT-MPI group

According to CCTA results, patients without lesions of stenotic extent ≥30% in all major epicardial vessels (diameter ≥2 mm) will be allocated to optimal medical therapy (OMT) group and patients with at least one lesion of stenosis extent ≥90% will be referred for ICA directly without undergoing dynamic CT-MPI. Patients with at least one 30–90% stenosis will be further evaluated using dynamic CT-MPI. For patients undergoing dynamic CT-MPI, all participants with lesion-specific absolute MBF <100 mL/100 mL/min of related territories will be considered as positive and referred for ICA. Further treatment strategy will be independently determined by interventional cardiologists according to the results of ICA and/or invasive FFR [invasive FFR will be performed in necessary cases determined on-site by interventional cardiologists, following the recommendation of Guidelines for the diagnosis and management of chronic coronary syndromes issued by European Society of Cardiology (14)]. In contrast, patients without the presence of myocardial ischemia will be allocated to OMT group.

CCTA + CT-FFR group

Patients who have at least one lesion with CT- FFR ≤0.80 or stenosis extent ≥90% on any major epicardial vessel (diameter ≥2 mm) will be referred for ICA and further treatment will be determined by interventional cardiologists according to the results of ICA and/or invasive FFR (if needed). Patients with CT-FFR >0.80 in all stenoses will receive OMT.

Follow-up

Follow-up will be performed at 3rd month, 6th month, 1 year and 2-year after the CT examination. Clinical outcomes, overall radiation exposure and medical cost will be recorded by checking medical records or via outpatient clinic visit.

Clinical outcomes include: (I) rehospitalization due to aggravated angina symptoms (e.g., unstable angina); (II) late revascularization (PCI or CABG performed more than 90 days after baseline CT examination); (III) non-fatal myocardial infarction; (IV) cardiac death (e.g., myocardial infarction, heart failure, fatal arrhythmia); (V) other relevant vascular diseases including cerebrovascular diseases (ischemic stroke, transient ischemic attack, intracerebral hemorrhage, and subarachnoid hemorrhage), pulmonary embolism, ruptured aortic aneurysm, dissecting aneurysm, or other vascular causes.

Study endpoint

Primary endpoint

The primary endpoint of the study is the rate of unnecessary ICA within 90 days, and unnecessary ICA is defined as ICA without revascularization.

Secondary endpoints

The secondary endpoints include: (I) a composite of major adverse cardiac events (MACE, defined as all-cause mortality, non-fatal myocardial infarction, rehospitalization aggravated angina symptoms, and late revascularization); (II) symptom change at 1 year; (III) the rate of late revascularization after CT examination; (IV) reclassification rate of CCTA + CT-MPI and CCTA + CT-FFR guided strategies compared with CCTA alone; (V) overall radiation dose, contrast media usage and medical cost.

Baseline and follow-up visits

The information of clinical visits is shown in Figure 2.

Figure 2 The information of clinical visits. CCTA, coronary computed tomography angiography; CT-FFR, CT fractional flow reserve; CT-MPI, CT myocardial perfusion imaging.

Patient screening (visit 1)

All the patients fulfilling inclusive criteria will be invited to attend screening visit. At this visit patients will (I) undergo assessment of CCS; (II) undergo physical examination; (III) be recorded for past medical history, medication history and the results of relevant laboratory tests of the patient during routine medical treatment in the past 6 months.

CT examination (visit 2)

At this visit patients will (I) undergo CT examination; (II) be recorded the stress heart rate and blood pressure during dynamic CT-MPI examination; (III) be measured for CCTA and dynamic CT-MPI quantitative parameters; (IV) be recorded for adverse reactions (if any).

Follow-up visit (visit 3–5)

The patients will be followed-up by telephone at the 3rd month, 6th month and 1 year after the CT examination (visit 3–5) and they will (I) be recorded their ICA results (if subsequent ICA performed), and whether they receive PCI treatment; (II) be followed up for related adverse events; (III) be followed up for any study endpoints; (IV) undergo assessment of clinical symptoms, the method is the same as in visit 1; (V) be followed up for medication usage and the relevant laboratory examinations and other examination results (if any).

Last visit

After the CT examination, the patients will be followed up by telephone in the second year. This visit completes the following tasks: (I) record any study endpoints; (II) record any related adverse events.

Data management

Data collection

The study will be conducted in accordance with ICH guidelines (International Council for Harmonisation of Technical Requirements for Pharmaceuticals for Human Use guidelines) and good clinical practice (GCP) standard. Investigators will first collect all original patient information by using a “Medical Record Worksheet”, which will be served as “source information” and will be kept and maintained by the investigators. Then, all data specified by the protocol will be reported by the investigators onto a web-based electronic case report forms (CRF) through an electronic data capture (EDC) system. Data query report will be generated by data manager.

Quality control

Data quality control will include the following steps: (I) edit and logic errors will be checked using EDC system at data entry; (II) data query listing; (III) on-site monitoring in all patients regarding enrollment and consent, completion and documentation of original medical chart and protocol compliance; (IV) remote source document verification (rSDV) in 50% patients and on-site SDV in 10% patients for each site; (V) site auditing will be performed in a random fashion to ensure proper study conduct; (VI) personnel in the imaging lab at each site will be trained for qualification prior to enrolling patients.

Statistical analysis

Statistical analysis will be conducted using commercially available statistical software (SPSS Statistical Software version 23.0). Analyses used intention-to-treat populations and were repeated in per- protocol populations. Multiple imputation (by fully conditional specification) will be used for missing data to ensure all participants could be included in the analysis, and avoid treating unknown values as certainly known. The assumption of normal distribution will be checked using One-sample Kolmogorov-Smirnov test. Quantitative variables will be expressed as means ± standard deviations for normal distribution and median and quartiles for non-normal distribution. Categorical variables will be depicted as a count (%). Fisher’s exact test or the chi-square test will be used to compare categorical variables according to the data cell size. Normally distributed variables will be compared with the student’s t test and non-normally distributed variables will be compared with the Wilcoxon signed-rank test. The Cox proportional hazards regression will be used to calculate hazard ratio with 95% CI for the between-group comparison of secondary end points, and the log-rank test will be used to calculate the corresponding P. Survival curves are presented graphically using Kaplan-Meier plots. A two-tail probability value of P<0.05 will be considered statistically significant.

Sample size calculation

Sample size will be estimated using PASS (Power Analysis and Sample Size) software (version 11.0; PASS, NCSS, LLC). According to previous studies, it can be assumed that the event rate would be 35% in CCTA + CT-FFR guided group and 20% in CCTA + CT-MPI guided group (6,15,16). Thus, enrollment of 370 subjects (185 subjects for CCTA + CT-FFR guided group and 185 subjects for CCTA + dynamic CT-MPI guided group) will be estimated to provide this study 90% power to detect 15% different in the frequency of ICA without coronary revascularization at a one-sided 0.025 level of significance. When a drop-out rate of 10% is assumed, a total enrollment of 412 subjects should be required.

Discussion

Functional assessment is recommended in patients with intermediate to high pre-test probability (≥15%) of CAD in order to optimize treatment strategy (11). CT-MPI and CT-FFR are expected to be promising non-invasive techniques to provide functional information of coronary stenoses. Several studies have demonstrated that CT-FFR and CT-MPI both have good diagnostic accuracy to detect hemodynamic significance of coronary stenosis with reference to MR MPI or FFR (2,4,5). Furthermore, previous investigations showed that CT-FFR as well as CCTA + CT-MPI strategy both can reduce unnecessary ICA, as compared with CCTA strategy alone (6,17).

More recently, owe to technical development, dynamic CT-MPI using third generation dual source CT has been showed to be superior over ML-based CT-FFR for detection of ischemic stenosis (7) [diagnostic accuracy on vessel-based: 94% (148 of 157) vs. 78% (122 of 157), P=0.04]. Despite of the need for additional image acquisition and contrast medium usage, CCTA + dynamic CT-MPI may better rule out functionally significant lesions with higher positive predictive value (7) and consequently avoid unnecessary ICA. However, there is no existing data for direct comparison of these two protocols. Thus, it is of clinical interest to investigate which method has the superiority with regard to reducing unnecessary invasive tests and improving prognosis.

CT-PRECISION study is the first multicenter, prospective, randomized trial to directly compare the clinical values of CCTA + dynamic CT-MPI strategy and CCTA + CT-FFR strategy in terms of optimizing treatment strategy, prognostic discrimination, cost-effectiveness, and radiation exposure. It is expected to provide valuable information on optimal diagnostic strategies to guide proper treatment in patients with intermediate to high pre-test probability of CAD.

Trial registration

The study is registered at Chinese Clinical Trial Registry (ChiCTR) with the identifier number ChiCTR2000041102 (version 1.0). Two centers will contribute data after the beginning of enrollment, with a planned total sample size of 412 patients. The expected duration for patient enrollment will be 12 months. Follow-up will be finished 24 months after the end of enrollment. Total study duration is expected to be approximately 42 months including data analysis. The first enrollment is planned for January 2021 and enrollment is planned to be finished at January 2022.

Protocol version: 1.0; Data: 1^st October 2020.
