Impact of the revised hemodynamic definition on the diagnosis of precapillary pulmonary hypertension: a retrospective single-center study in China

Introduction

In 2015, the European Society of Cardiology (ESC)/European Respiratory Society (ERS) introduced the most widely recognized and used guidelines for the diagnosis and treatment of pulmonary hypertension (PH). The 2015 ESC/ERS guidelines define PH as a mean pulmonary artery pressure (mPAP) ≥25 mmHg measured by right heart catheterization (RHC) at rest (1). Compared with its 2009 version (2), the 2015 ESC/ERS guidelines incorporate pulmonary vascular resistance (PVR) >3 wood units (WU) into the hemodynamic definition of pulmonary arterial hypertension (PAH) (Group I).

Based on robust evidence, a task force proposed lowering the upper threshold of mPAP to >20 mmHg and incorporating PVR ≥3 into the hemodynamic definition of all forms of precapillary PH (Groups I, III, IV, V) during the 6^th World Symposium on Pulmonary Hypertension (WSPH) (3). Given that this change may affect the next version of the guidelines for PH, the impact of the revised definition on current clinical practice deserves a thorough evaluation. Although several studies have focused on this topic, there are still many unresolved questions.

Some of these studies only enrolled patients with systemic sclerosis (SSc)-associated PAH (4,5). One study attempted to enroll all forms of precapillary PH, but its study cohort was quite small (n=58) (6). In a single-center study with 1,300 patients, Tanyeri et al. (7) reported that the revised definition would only increase the population of PH, precapillary PH and combined pre- and postcapillary PH by 9.8%, 0.8% and 0.3%, respectively. Unfortunately, Tanyeri et al. (7) did not perform a subgroup analysis within precapillary PH. Moreover, previous studies mainly discussed the impact of the revised definition on borderline PH (mPAP =21–24 mmHg). Incorporating PVR into the hemodynamic definition of all forms of precapillary PH could also influence patients with established precapillary PH (mPAP ≥25 mmHg). However, we could not find answers to this question in published papers. In addition, comprehensive studies with large sample sizes or data from different expert PH centers in different countries are scarce. The aim of the present study was to evaluate the impact of the revised definition on current clinical practice in a tertiary PH center in China. We present the following article in accordance with the STROBE reporting checklist (available at https://dx.doi.org/10.21037/cdt-21-373).

Methods

Study cohort

We retrospectively reviewed the medical records of patients who underwent RHC at Fuwai Hospital, National Center for Cardiovascular Diseases, China, from January 2012 to December 2018. For patients who underwent multiple RHC procedures during the study period, we only used their first RHC records. The establishment of precapillary PH and its classification were determined by two physicians specialized in PH, who followed the 2009 (before January 2016) or 2015 ESC/ERS guidelines (1,2). Patients were excluded from the current analysis if they (I) had incomplete hemodynamic data [mPAP, pulmonary arterial wedge pressure (PAWP) or cardiac output] and (II) had a PAWP >15 mmHg. However, patients with mPAP ≤20 mmHg were exempted from the exclusion criteria, because hemodynamic parameters other than mPAP were not required in the current study. Chronic thromboembolic pulmonary disease (CTEPD) is defined as patients with chronic thromboembolism (CTE) who have symptoms and perfusion defects similar to chronic thromboembolic pulmonary hypertension (CTEPH) but they have normal hemodynamics at rest (8). Unclassifiable PH in the present study is hemodynamically defined as: patients who had abnormal hemodynamics but did not meet the 2015 ESC/ERS criteria for PAH (i.e., mPAP ≥25 mmHg, PAWP ≤15 mmHg, and PVR ≤3 WU) or patients who had abnormal hemodynamics but did not meet the 6^th WSPH criteria for precapillary PH (i.e., mPAP >20 mmHg, PAWP ≤15 mmHg, and PVR <3 WU). The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by ethics board of Fuwai Hospital (NO.: 2019-1191) and individual consent for this retrospective analysis was waived.

To maximize the sample size of the study cohort, we included patients diagnosed by the 2009 ESC/ERS guidelines. Given that the aim of this study was to evaluate the impact of the revised hemodynamic definition on current clinical practice, we used the 2015 ESC/ERS guidelines to reclassify these patients. At this stage, all included patients were retrospectively re-diagnosed by the 2015 ESC/ERS guidelines. The reclassification process was feasible because there are only subtle differences in clinical classifications and hemodynamic definitions between the 2009 and the 2015 ESC/ERS guidelines (see Figure 1). Finally, we performed a second reclassification process, using the 6^th WSPH criteria to reclassify all included patients.

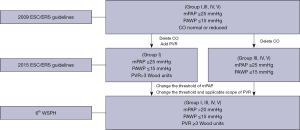

Figure 1 The differences in hemodynamic definitions among the 2009 ESC/ERS guidelines, 2015 ESC/ERS guidelines and 6^th WSPH. CO, cardiac output; ERS, European Respiratory Society; ESC, European Society of Cardiology; mPAP, mean pulmonary arterial pressure; PAWP, pulmonary arterial wedge pressure; PVR, pulmonary vascular resistance; WSPH, World Symposium on Pulmonary Hypertension.

Data collection

The following clinical data were collected from the electronic medical record system by two reviewers: (I) basic characteristics, including age, sex, body mass index, etiology of PH, comorbidities, and PH specific medication at the time of RHC; (II) RHC parameters; (III) echocardiographic parameters; and (IV) cardiopulmonary exercise testing (CPET) parameters. Any discordance was resolved by the supervisors (QL and ZHL).

Protocols for echocardiography, RHC and CPET

Details of the protocol of RHC and CPET have been described in our previous publications (9-12). With local anesthesia under continuous electrocardiographic monitoring, a 6 French pigtail catheter or 7 French Swan-Ganz catheter (Edwards Lifesciences World Trade Co. Ltd, Irvine, CA, USA) was advanced into the pulmonary artery through the right femoral vein or right internal jugular vein by placement of a 6 or 7 French vascular sheath. Correct catheter positioning was verified by fluoroscopy. Transducers were positioned at the midaxillary line and zeroed at atmospheric pressure. An incremental symptom-limited CPET was performed on an upright cycle ergometer using the COSMED Quark PET system (COSMED, Rome, Italy), within 3 days prior to RHC. Transthoracic echocardiography was performed by experienced ultrasonologists in the Department of Echocardiography.

Statistical analysis

Continuous variables are presented as the mean ± standard deviation. Categorical variables are given as counts. Not a single missing value was replaced. Data analysis was performed using SPSS version 23.0 (IBM SPSS Corp.; Armonk, NY, USA).

Results

Patients enrollment

From January 2012 to December 2018, 1,523 patients received RHC at our center. Two hundred and seventy-two patients with incomplete hemodynamic data (N=209) or PAWP >15 mmHg (N=63) were excluded. Among the remaining 1,251 patients, 429 were originally diagnosed by the 2009 ESC/ERS guidelines (Jan 2012 to Dec 2015) and 822 were originally diagnosed by the 2015 ESC/ERS guidelines (Jan 2016 to Dec 2018).

First reclassification process

We reclassified 429 patients who were diagnosed by the 2009 ESC/ERS guidelines, using the 2015 ESC/ERS guidelines. One idiopathic PAH and four pulmonary arterial hypertension associated with congenital heart disease could no longer be sugrouped as Group I due to PVR ≤3 WU; one PH associated with tumor obstruction and four PH associated with vasculitis were reclassified as Group IV (PH associated with tumor obstruction or vasculitis was classified as Group V in the 2009 ESC/ERS guidelines, but was classified as Group IV in the 2015 ESC/ERS guidelines). At this stage, all patients (N=1,251) were diagnosed and included in the analysis according to the 2015 ESC/ERS guidelines (Group I, N=674; Group III, N=45; Group IV, N=248; Group V, N=77; Unclassifiable PH, N=25; No PH, N=182). A flow-chart displaying the enrollment and first reclassification process is illustrated in Figure 2, and the clinical characteristics of the study cohort, stratified by mPAP and PVR, are presented in Table 1.

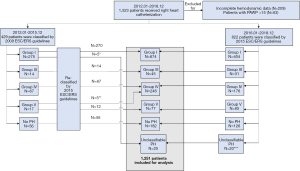

Figure 2 Flowchart of the included and excluded patients in our study. *, One IPAH and 4 CHD-PAH could no longer be subgrouped as Group I for PVR ≤3 wood units under the 2015 ESC/ERS guidelines. **, One PH associated with tumor obstruction and 4 PH associated with vasculitis were reclassified as Group IV. ***, All patients had congenital heart disease associated with pulmonary hypertension, but they could not be subgrouped as Group I for PVR ≤3 wood units under the 2015 ESC/ERS guidelines. CHD-PAH, pulmonary arterial hypertension associated with congenital heart disease; ERS, European Respiratory Society; ESC, European Society of Cardiology; IPAH, idiopathic pulmonary arterial hypertension; PAWP, pulmonary arterial wedge pressure; PH, pulmonary hypertension; PVR, pulmonary vascular resistance.

Second re-classification process

We reclassified all included patients (N=1,251) using the 6^th WSPH criteria. Among patients with mPAP ≥25 mmHg (N=1,069), 12 (1.1%) patients were removed from precapillary PH for PVR <3 WU (5 patients from Group III; 4 patients from Group IV; 3 patients from Group V). Among patients with mPAP <25 mmHg (N=182), 33 (18.1%) were newly identified as having PH. Among patients with newly identified PH, 7 patients with PVR ≥3 WU could be considered as having precapillary PH (Group I, N=2; Group III, N=1; Group IV, N=4), and the remaining 26 patients with PVR <3 WU were subgrouped as having unclassifiable PH. A flow diagram displaying the impact of the newly revised hemodynamic definition on current clinical practice is shown in Figure 3. Detailed characteristics of the newly identified precapillary PH patients are shown in Table 2.

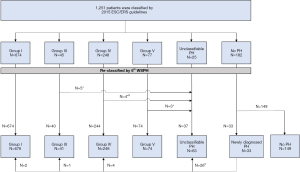

Figure 3 The 6^th WSPH was used to reclassify PH patients diagnosed by the 2015 ESC/ERS guidelines. *, Those patients could no longer be considered as having precapillary PH due to PVR<3 wood units under the 6^th WSPH criteria. ^#, The underlying etiology of the PH of the patients (mPAP 21–24 mmHg, PVR <3 wood units) is shown in Figure 4. ^$, All patients had chronic thromboembolic pulmonary hypertension. ERS, European Respiratory Society; ESC, European Society of Cardiology; mPAP, mean pulmonary arterial pressure; PH, pulmonary hypertension; PVR, pulmonary vascular resistance; WSPH, World Symposium on Pulmonary Hypertension.

Distribution of the underlying etiology of PH

We stratified patients with mPAP >20 mmHg and PAWP ≤15 mmHg according to mPAP and PVR (N=1,101) (Figure 4). Sixty-three of these patients had PVR <3 WU, among which the most common underlying etiology was congenital heart disease (N=34), followed by unclear/multifactorial mechanisms (N=16), CTE (N=5), lung diseases (N=5), other pulmonary artery obstructions (N=2) and connective tissue diseases (N=1).

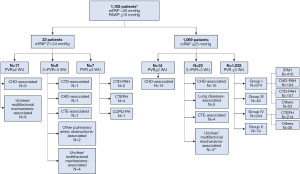

Figure 4 The underlying etiology of precapillary PH in 1,102 patients, stratified by mPAP and PVR. *, Classification is based on the 6^th WSPH. **, One patient was diagnosed as IPAH by the 2009 ESC/ERS guidelines at first and then reclassified as having unclassifiable PH by the 2015 ESC/ERS guidelines due to PVR ≤3. Therefore, the underlying etiology of PH in this patient is considered unclear/multifactorial. The remaining 3 patients were from Group V as directly diagnosed by the 2015 ESC/ERS guidelines (see Figures 2,3). CHD, congenital heart disease; CTD, connective tissue diseases; CTE, chronic thromboembolism; CTEPH, chronic thromboembolic pulmonary hypertension; COPD, chronic obstructive pulmonary disease; ERS, European Respiratory Society; ESC, European Society of Cardiology; IPAH, idiopathic pulmonary arterial hypertension; mPAP, mean pulmonary arterial pressure; PAWP, pulmonary arterial wedge pressure; PH, pulmonary hypertension; PVR, pulmonary vascular resistance.

Patients with chronic thromboembolism

For the former CTEPD patients diagnosed by the 2015 ESC/ERS guidelines, 4 (40%) of 10 were reclassified as CTEPH for mPAP >20 mmHg, PAWP ≤15 mmHg and PVR ≥3 WU (Figure 3). Among the remaining 6 patients, one patient had mPAP >20 mmHg, PAWP ≤15 mmHg and PVR <3 WU, so this patient was classified as unclassifiable PH (Figure 4). Surprisingly, 4 (1.8%) of the former patients with CTEPH (N=218) as diagnosed by the 2015 ESC/ERS guidelines, were also re-classified as unclassifiable PH for PVR <3 WU (Figure 3). The detailed characteristics of these 5 patients with CTE and abnormal hemodynamics are exhibited in Table 3.

Discussion

In a tertiary PH center in China, we found that the 6^th WSPH criteria had a minor impact on the diagnosis of precapillary PH. Seven patients with borderline PH (mPAP =21–24 mmHg) were newly identified as having precapillary PH, while 12 patients with overt PH (mPAP >25 mmHg) were delisted from precapillary PH due to PVR <3 WU. Taken together, there wasan overall 0.5% net decrease [(12−7)/1044×100%] in the population with precapillary PH.

Newly identified patients with pre-capillary PH

After using the 6^th WSPH criteria to reclassifying patients diagnosed by the 2015 ESC/ERS guidelines, 33 (18.1%) of 182 patients with mPAP <25 mmHg were newly identified as having PH. However, only 7 (21.2%) of these 33 patients had a PVR ≥3 WU and could be considered to have precapillary PH, which only accounted for 0.7% of the existing precapillary PH population. Consistent with our results, Tanyeri et al. (7) reported that the revised definition would only increase the population of precapillary PH by 0.8%.

Some studies reported that the revised definitions would result in an increase of 4.5% to 12.1% in the existing precapillary PH population, mainly SSc-PAH (4,5). This divergence should be attributed to the differences in the characteristics of the study cohorts. In the aforementioned studies (4,5), the patients were all enrolled from prospective cohorts undergoing PH-screening algorithms. The number of patients with mPAP ≥25 mmHg (e.g., N=33) was small and they were similar to patients with 20< mPAP <25 mmHg (e.g., N=55) and mPAP ≤20 mmHg (e.g., N=146). Therefore, even a small number of patients being reclassified as having pre-capillary PH (e.g., N=4) would cause a relatively large increase in the existing pre-capillary PH population (e.g., 4/33=12.1%). In contrast, the number of patients with precapillary PH (N=1,044) in the present study was far greater than those with 20< mPAP <25 mmHg (N=33). This might explain why the revised definitions only had a minor impact on the general PH population in our study, while it had relatively larger impact on the PH-screening cohort (e.g., systemic sclerosis). When we looked at the proportion of newly identified precapillary PH in patients with 20< mPAP <25 mmHg, our results (21.2%) were much closer to previous studies (5.3% to 11.1%) (4,5), which further supported our explanation of the divergence. It should be noted that a study from a tertiary cardiology center reported that the revised definitions could increase the existing precapillary PH population by 12.1%. Nevertheless, their study cohort was too small (N=58), which limited the generalizability of their conclusion (6).

Newly identified patients with unclassifiable PH

After application of the revised definitions, 38 patients were reclassified as having unclassifiable PH due to PVR <3, leading to a 152% increase (from 25 to 63) in the unclassifiable PH population (Figure 3). Among these 38 patients, 26 patients came from the former No PH group (i.e., mPAP =21–24 mmHg, PAWP ≤15 mmHg and PVR <3 WU), of whom the underlying etiology is detailed in Figure 4. Surprisingly, the remaining 12 patients came from the former precapillary PH group (i.e., mPAP ≥25 mmHg, PAWP ≤15 mmHg and PVR <3 WU). Seven patients with borderline PH were newly identified as having precapillary PH, while 12 patients with overt PH were delisted from pre-capillary PH group because of PVR <3 WU. Therefore, there was an overall 0.5% net decrease [(12−7)/1044×100%] in the population with precapillary PH, which is contrary to the expectation that the revised definition may result in a small increase in the population of pre-capillary PH.

Patients with CTE-PH

Currently, it remains unclear how the revised definitions will affect the management of CTEPH and CTEPD (13). In the present study, we found that 4 (40%) of 10 former patients with CTEPD were reclassified as having CTEPH. More importantly, the revised definition created a new subgroup in Group IV (1 patient from the former CTEPD group and 4 patients from the former CTEPH group), which we named CTE-PH. Patients with CTE-PH had mPAP >20 mmHg, PAWP ≤15 mmHg and PVR <3 WU. Therefore, CTE-PH could be classified as neither CTEPH (for PVR <3 WU) nor CTEPD (for mPAP >20 mmHg) under the 6^th WSPH criteria. Where should CTE-PH be placed within Group IV? How do we manage these patients? Unfortunately, such questions were not answered in the 6^th WSPH. Furthermore, those unanswered questions may disrupt clinical decision-making and cause a delay in treatment. Table 3 summarizes the detailed characteristics (including the treatment strategy and the follow-up information) of these five patients with CTE-PH in our center. Similar problems were also observed within Groups III and V (Figure 3). Given that there is no specific therapy for Groups III and V, the detailed characteristics of unclassifiable PH patients from Groups III and V were not listed.

Limitations

Our single-center retrospective study has several limitations. First, the retrospective design introduces inherent selection bias. Hemodynamic studies have been performed only in patients with suspected pulmonary hypertension according to the former definition. Therefore, our results might not reflect the “real” impact of the new definition. A prospective study with a large sample size is needed to address this issue. Second, 209 (13.7%) of 1,523 patients were excluded from the present study for incomplete hemodynamic data. Among these 209 patients, only 4 patients had missing mPAP and 4 patients had 20< mPAP <25 mmHg. Even though all 8 patients fulfilled the revised definitions, it would only change our results from 0.7% to 1.4%. Thus, the exclusion of these 209 patients would not undermine our conclusion. Third, as a tertiary PH center in a cardiology specialist hospital, the spectrum of the underlying etiology of PH in our center may differ from that of others, which may limit the generalizability of our conclusion. For instance, patients from Group II are usually treated in the Heart Failure Care Unit in our hospital and patients from Group III are rarely seen in our hospital. Last, we failed to offer clinical outcome of patients with newly diagnosed PH. The long-term prognosis and therapeutic strategies for these patients require further research in the future.

Conclusions

The revised hemodynamic definition had a minor impact on current clinical practice. Only 7 patients with borderline PH were reclassified as the precapillary PH population, which accounted for 0.7% of the former precapillary PH population. However, 12 patients with overt PH could no longer be considered as having precapillary PH due to PVR <3 WU. Thus, there was a 0.5% net decrease in the population with precapillary PH. Management strategies for patients delisted from precapillary PH require further discussion.

Acknowledgments

We thank American Journal Experts (https://www.aje.com) for their assistance with the language editing.

Funding: This research article was supported by Beijing Municipal Science and Technology Project [grant number Z181100001718200]; Beijing Municipal Natural Science Foundation [grant number 7202168] and National Precision Medical Research Program of China [grant number 2016YFC0905602]; CAMS Innovation Fund for Medical Sciences (CIFMS) [2020-I2M-C&T-B-055]; the Capital's Funds for Health Improvement and Research (CFH) [2020-2-4033].

Footnote

Reporting Checklist: The authors have completed the STROBE reporting checklist. Available at https://dx.doi.org/10.21037/cdt-21-373

Data Sharing Statement: Available at https://dx.doi.org/10.21037/cdt-21-373

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://dx.doi.org/10.21037/cdt-21-373). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by ethics board of Fuwai Hospital (NO.: 2019-1191) and individual consent for this retrospective analysis was waived.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
